A860-0370-V501 FANUC Pulse Servo Motor Encoder A8600370V501

Fanuc A860-0370-V501 | Alpha αA1000 Absolute Pulse Coder — 1,000,000P, Without Cable, Red Plastic Cap, Fanuc Alpha Large-Frame Servo Motors

Overview

The Fanuc A860-0370-V501 is the cable-free variant of the αA1000 absolute pulse coder for Fanuc's large-frame alpha series AC servo motors.

At 1,000,000 pulses per revolution, it delivers fifteen times the resolution of the αA64 (64K ppr) encoder used on smaller alpha motors — a specification that reflects the higher inertia, higher torque, and more demanding velocity control requirements of motors like the a12, a22, a30, and a40.

The V-suffix in Fanuc's encoder part numbering consistently means one thing: no cable included. The encoder body comes with its connector for the motor-side cable but without the cable itself. The cable — routed from the motor's encoder port to the servo amplifier — either stays with the motor during an encoder exchange or is procured separately.

For service operations where the motor cap, cable, and Amphenol connector remain undisturbed while only the encoder body is swapped, the V501 is the appropriate choice: the replacement encoder plugs directly into the existing cable's motor-end connector, and the installation is complete without cable handling.

This V-suffix design philosophy mirrors what we see in the αA64 family's V-suffix variants (A860-0360-V501, V511), and the logic is the same — cleaner encoder replacement with less disturbance to the surrounding wiring.

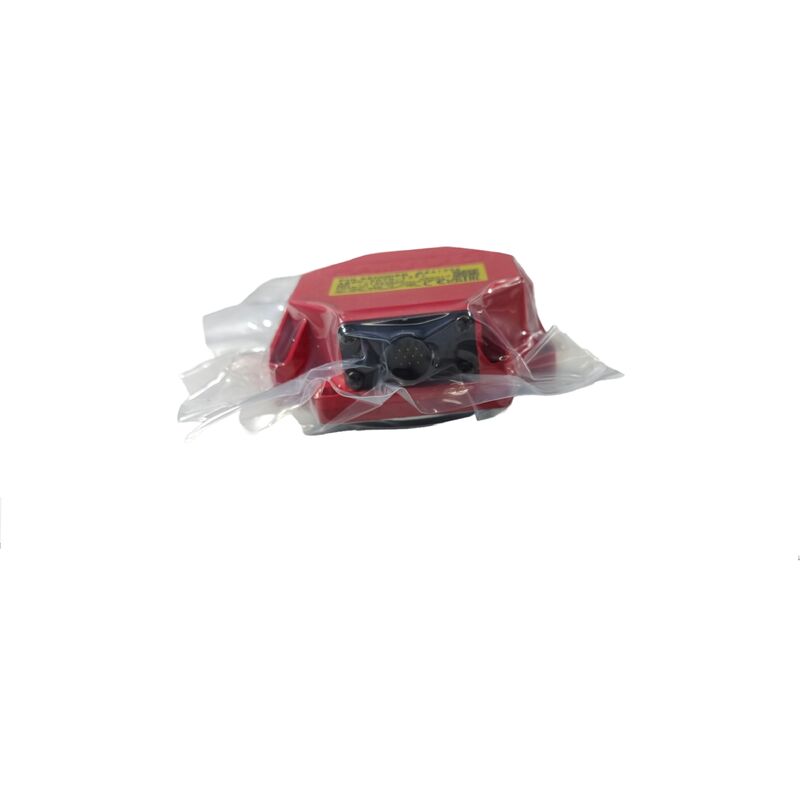

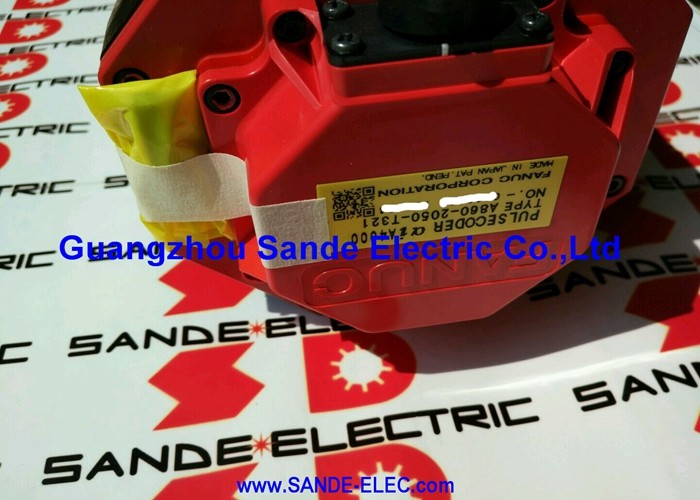

The red plastic cap housing groups this encoder visually with the S-series and earlier alpha-generation encoders. Within the A860-0370 family, the red cap is the physical identifier of the αA1000 encoder generation for large alpha motors, distinguishing it from the black-housed beta series encoders and the metal-bodied alpha i generation that would follow. When examining a motor in the field, the red cap at the rear of the motor identifies both the encoder type and the motor generation at a glance.

The Oldham-style interconnecting coupling that connects the encoder disc assembly to the motor shaft is a key mechanical component of the V501 installation.

This coupling accommodates minor angular and radial misalignment between the encoder shaft and the motor shaft, reducing the stress on the encoder's bearing from shaft runout. When fitting a replacement V501, verify the coupling is in good condition and correctly seated — a worn or damaged coupling produces mechanical noise in the encoder signal and reduces service life.

The alternate part number A860-0370-T201 for this encoder refers to the T201 variant within the same αA1000 family.

The T201 includes the cable as part of the assembly (T-suffix = with cable), while the V501 does not. Both serve the same large alpha motor range at 1M ppr absolute resolution.

Key Specifications

1M ppr at the Large Motor — Why Resolution Scales With Motor Size

The physics of servo control explain the αA1000's resolution. A large motor like the a22 carries significantly more rotor and load inertia than a small motor.

More inertia means the velocity loop must manage larger energy exchanges during acceleration and deceleration, and the amplifier's velocity estimate quality has a direct impact on current loop stability during those transients.

The 1M ppr encoder provides roughly 33 million quadrature edge counts per second at the a22's rated 2000rpm speed — a data density that keeps the velocity estimate smooth even through the speed transitions that large-inertia machining applications involve.

For comparison, the αA64 encoder on small alpha motors provides about 2.1 million quadrature counts per second at the same speed — entirely adequate for small, light-inertia motors but insufficient for the smoother control quality that large motors need.

Fanuc's resolution stepping between motor frame sizes is an engineering match between the feedback quality the servo loop requires and the mechanical characteristics of the motor.

V501 vs T201 — Choosing the Right Variant

Both are αA1000 encoders for the same motors. The choice depends entirely on the cable situation at the motor installation:

If the motor's existing cable and its Amphenol connector at the encoder end are intact, in good condition, and will remain installed — use the V501.

The replacement encoder plugs into the existing cable. Faster service, less cable handling risk.

If the motor's cable needs to be replaced alongside the encoder — use the T201.

The T201 includes the cable assembly, so both encoder and cable arrive as a matched set. Appropriate when coolant damage, cable carrier wear, or connector damage means the cable itself must be renewed.

FAQ

Q1: Can the A860-0370-V501 be used on any alpha motor, or is it size-restricted to the a12 and larger?

The V501 is designed for large-frame alpha motors — a12, a22, a30, a40 and their αM and αL variants. It is not compatible with small or mid-frame alpha motors because the encoder body's physical dimensions and mounting pattern match only the large-frame motor's rear housing.

The small-frame α1, α2, and αM2.5 motors use the A860-0360 family (αA64 64K ppr), and mid-range motors use correspondingly specified encoders.

The frame size of the motor determines which encoder fits — always cross-reference the specific motor order number against the encoder specification before ordering a replacement.

Q2: What condition should the Oldham coupling be in before fitting a replacement V501?

Examine the coupling for cracking, wear on the engagement slots, and evidence of lubricant loss or corrosion.

The coupling body is typically a plastic or rubber-insert type that absorbs minor misalignment; a hardened or cracked coupling transmits misalignment stress directly to the encoder's bearing, accelerating bearing wear.

If the coupling shows any deterioration, replace it alongside the encoder. Running a new encoder with a worn coupling is a predictable route to early encoder failure and a repeat replacement in a shorter timeframe than expected.

Q3: Does the V501 include any position backup device such as a supercapacitor?

No. The V501 relies entirely on the servo amplifier's battery-backed SRAM for multi-turn absolute position retention between power cycles. The amplifier battery maintains the position count during machine power-off; a healthy battery means no reference return is needed at startup.

A discharged battery means the count is lost and a reference return is required after the next power-on.

The battery should be replaced before the amplifier's BAT alarm triggers during production — proactive replacement on a schedule (typically every 2–3 years, depending on the battery type and operating temperature) avoids position data loss.

Q4: Is the A860-0370-V501 tested before dispatch from a reputable service provider?

A reputable provider will test the V501 on a closed-loop alpha motor test rig — mounting the encoder on a compatible alpha motor, driving the motor through its speed range on a Fanuc servo amplifier and CNC, and verifying that the serial absolute feedback communicates cleanly, that the position count is stable and accurate, and that the multi-turn absolute count resets and restores correctly after simulated power cycles.

A provider who describes only bench electrical testing (without motor rotation) is providing a significantly weaker quality assurance.

Ask specifically about the test method and the CNC generation used for testing before confirming a purchase.

Q5: How should the V501 encoder be stored if procured as a spare before the motor fails?

Store in original packaging or a sealed anti-static bag in a dry environment at room temperature (0°C to +30°C target). Keep away from strong vibration, magnetic fields, and humidity above 70% RH.

The optical disc inside the encoder is the most sensitive component — avoid storage where condensation could form on the disc surface.

Before installation, rotate the encoder shaft by hand to confirm bearing smoothness and inspect the connector for pin condition.

If the spare has been stored for more than 18 months, it is worth consulting the supplying service provider about re-testing before installing it on a production machine.
