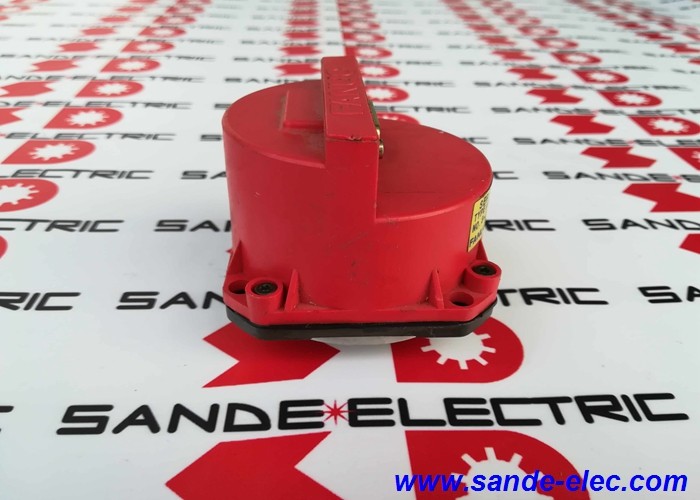

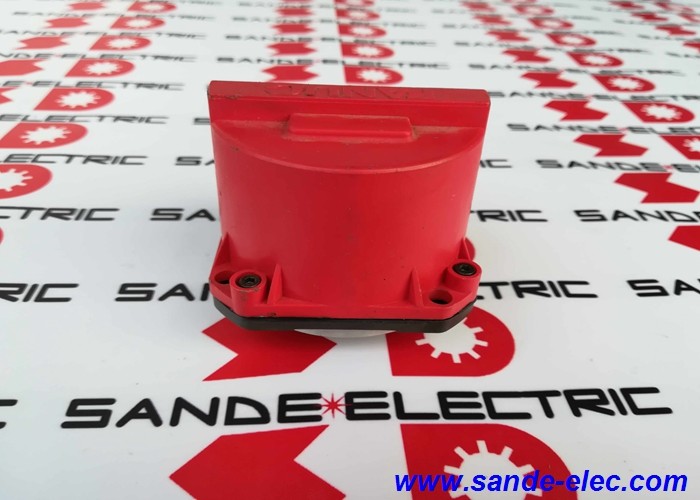

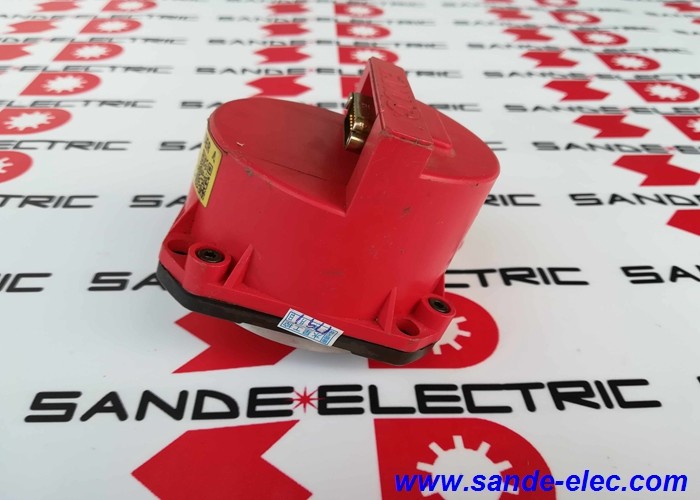

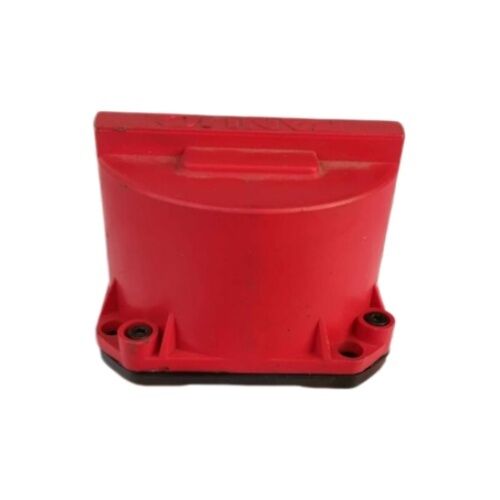

FANUC A860-0347-T001 Absolute Pulse Coder — Replacement Servo Motor Encoder

What Is the A860-0347-T001?

The FANUC A860-0347-T001 is a Serial A-type absolute pulse coder engineered as a direct-fit replacement encoder for FANUC servo motors. Mounted on the rear of the motor body, this unit continuously feeds real-time position and speed data back to the CNC control system — making it one of the most critical feedback components in any FANUC-driven machine tool.

If your machine is throwing encoder-related alarms, experiencing axis drift, or simply refusing to home correctly, a failed pulse coder is often the root cause. The A860-0347-T001 is the manufacturer-specified solution for getting that axis back online.

Compatibility — Which Motors Does It Fit?

This pulse coder is purpose-built for two specific FANUC servo motor models:

• FANUC Model 4-0S servo motor
• FANUC Model 3-0S servo motor

It connects via a D-SUB interface connector and mounts directly to the back of the motor housing. Before ordering, confirm your motor nameplate matches one of the above designations. Using an incompatible encoder — even one that physically fits — will result in communication errors at the amplifier.

Why the Encoder Matters More Than You Think

In a closed-loop CNC system, the servo motor does not "know" where it is. It relies entirely on the pulse coder to report rotational position back to the servo amplifier and CNC controller. The moment that feedback loop breaks down — due to a cracked encoder disc, moisture ingress, cable damage, or normal wear — the axis becomes unpredictable.

The A860-0347-T001 is an absolute-type encoder, which means it retains position memory even after the machine is powered down (supported by a backup battery on the CNC side). This is a key advantage over incremental encoders: when you restart the machine, there's no need to re-home the axis. Position data is preserved and trusted immediately on power-up.

Technical Overview

Common Failure Symptoms That Point to This Part

You don't always get a clean warning. Encoder failure can show up in several ways:

• "Excess Error" or axis servo alarms on the CNC panel
• Axis moves erratically or refuses to respond to commands
• Machine fails to complete a homing cycle
• Intermittent position errors that clear and then return
• Physical damage to the encoder body or connector (coolant contamination, impact)

If your machine runs a FANUC 0 series, 15 series, or early 16/18 series control paired with a Model 3-0S or 4-0S motor, the A860-0347-T001 is the correct replacement to investigate.

Installation Notes

Replacing a pulse coder requires careful handling. The optical disc inside is precision-ground and sensitive to shock. A few practical points:

1. Power down and lock out the machine completely before removing the encoder.
2. Take note of the cable routing and connector orientation before disconnecting anything.
3. After installation, the CNC may require a reference position return or battery-backed position reset depending on the control type.
4. Inspect the encoder cable and connector pins while the motor is accessible — cable wear is a frequent secondary issue.

When in doubt, refer to the relevant FANUC servo motor maintenance manual (B-65165E series or equivalent for your motor model).

Frequently Asked Questions

Q1: Is the A860-0347-T001 an OEM FANUC part or an aftermarket replacement?

The A860-0347-T001 is an original FANUC part number. When sourcing this encoder, verify whether the supplier is offering a new OEM unit, a certified refurbished unit, or a third-party compatible replacement. For production-critical machines, new OEM or professionally tested refurbished stock is generally recommended. Aftermarket alternatives exist but may carry compatibility risks with specific control firmware versions.

Q2: What FANUC CNC controls work with this encoder?

This pulse coder is associated with older FANUC servo motor models (3-0S and 4-0S), which were commonly paired with FANUC 0 series, 3 series, and 15 series CNC controls, as well as some earlier 16i/18i configurations. If you are running a newer αi or βi series motor, you will need a different pulse coder model — the A860-0xxx-T series spans many generations and they are not interchangeable.

Q3: Can I repair my existing encoder instead of replacing it?

In some cases, specialist repair workshops can restore a failed pulse coder — cleaning contaminated optics, replacing the connector, or resolving battery-related issues. However, if the internal encoder disc is physically damaged or the optical sensor has failed, repair is generally not cost-effective or reliable compared to fitting a tested replacement. Given that a faulty encoder can cause axis crashes, most production environments opt for a confirmed working replacement rather than a repaired unit.

Q4: My machine shows a "pulse coder alarm" — does that definitely mean the encoder has failed?

Not necessarily. Before replacing the encoder, check the following: the encoder cable for visible damage or loose connector pins; the servo amplifier for separate fault codes; and the CNC battery backup (a dead battery on an absolute encoder system will generate alarms that mimic encoder hardware failure). Run through these checks first — they can save significant time and cost.

Q5: How should the A860-0347-T001 be stored if not installed immediately?

Store it in the original anti-static packaging in a dry, temperature-stable environment. Avoid areas with high humidity, direct sunlight, or significant vibration. The internal optical components are sensitive to dust and moisture. Most industrial suppliers recommend installation within 12 to 24 months of purchase for best reliability; long-term shelf storage beyond that should be accompanied by a function test before fitting to a live machine.

Always cross-reference the motor nameplate and machine documentation before ordering replacement encoders. Model numbers within the FANUC A860 series are closely related but not universally interchangeable.
