Mitsubishi TS1860N1170 PLG Shaft Encoder — Original Feedback Device for Mitsubishi CNC Spindle Systems

When a Mitsubishi spindle drive loses its position signal, the machine stops. Full stop. No spindle feedback means no orientation, no threading, no C-axis operation — just an alarm and a production line standing still. The Mitsubishi TS1860N1170 is the PLG shaft encoder that prevents exactly that scenario, serving as the position and speed feedback device in Mitsubishi's MELDAS CNC spindle systems.

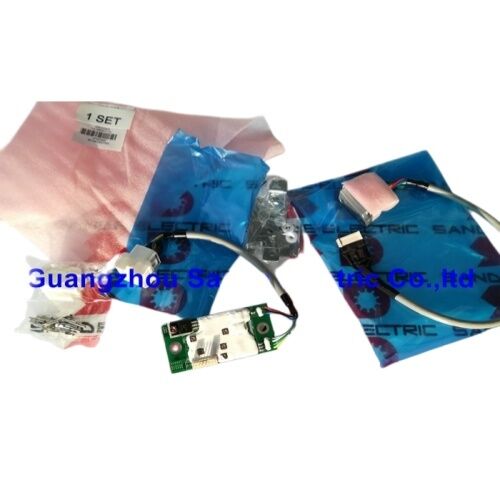

This unit is offered new, original, and uninstalled — factory-packaged Mitsubishi Electric, not rebuilt, not refurbished.

What "PLG" Means in a Mitsubishi Spindle System

PLG stands for pulse generator in Mitsubishi CNC terminology, though the modern TS-series devices are far more sophisticated than a simple pulse counter. The TS1860N1170 belongs to Mitsubishi's serial output PLG encoder family — devices that communicate position and speed data to the MDS-series spindle drive via a high-speed serial interface rather than simple analog sine/cosine waveforms.

This serial communication architecture is by design. Mitsubishi's MDS spindle drives store motor parameters, alarm history, and configuration data within the encoder itself, meaning the encoder and drive form a matched system that verifies its own integrity at power-up. Swap in an incompatible encoder, and the drive alarms out before the spindle ever turns. This is one reason why using an original Mitsubishi part matters so much for this component class.

At a Glance — Key Facts

The Spindle Feedback Loop — Why This Encoder Is Non-Negotiable

A machining center spindle does far more than spin at high speed. In a modern MELDAS-controlled machine, the spindle must:

• Accelerate and decelerate on command, responding precisely to programmed ramp profiles
• Orient to a fixed angle for automatic tool changes — stopping within fractions of a degree, every time
• Synchronize with Z-axis feed during rigid tapping cycles, matching spindle RPM to feed rate for thread accuracy
• Function as a C-axis on mill-turn centers, holding angular position under cutting load

None of these functions work without continuous, accurate feedback from the spindle encoder. The TS1860N1170 provides that feedback, communicating directly with the MDS spindle amplifier to close the position and speed loops on every spindle rotation.

A failing or degraded encoder doesn't always produce a clean alarm. Sometimes it shows up as intermittent positioning drift, occasional orientation failures, or inconsistent thread pitch — symptoms that take time to diagnose and trace back to the encoder. A new encoder eliminates that variable entirely.

Matched to Mitsubishi's MDS Drive Architecture

The TS series PLG encoders are validated components within Mitsubishi's MELDAS CNC ecosystem. They are designed to pair with MDS-series spindle amplifiers — including the MDS-A, MDS-B, MDS-C, MDS-D, and MDS-DH families — which are found in a wide range of CNC machine tools built with Mitsubishi controls.

Mitsubishi's own technical documentation requires a PLG automatic adjustment procedure whenever a PLG encoder or spindle drive unit is replaced. This procedure re-calibrates the Z-phase reference signal and verifies the sinusoidal output quality — a process that can only succeed with a correctly functioning, genuine OEM encoder. An aftermarket or cloned device that fails this calibration procedure will prevent the machine from coming back online regardless of its physical appearance.

Applications Across the Machine Tool Industry

The TS1860N1170 and related PLG encoder variants appear across a broad cross-section of machine tools running Mitsubishi MELDAS CNC. Common platforms include:

Horizontal Machining Centers — pallet-changing HMCs where spindle orientation governs tool change timing and pallet indexing accuracy

Vertical Machining Centers — VMCs where rigid tapping depth and pitch precision depend on synchronized spindle-to-feed feedback

Mill-Turn Centers — multi-task machines where the spindle doubles as a servo-controlled C-axis for milling operations

CNC Lathes with Live Tooling — turning centers that use spindle C-axis and orientation for off-center drilling and contour milling

Grinding Machines — cylindrical and surface grinders where spindle speed accuracy directly affects surface finish quality

New Original — Why Condition Matters for This Part

The TS1860N1170 is a precision optical encoder. Its internal disk, bearing preload, and signal conditioning circuitry are factory-calibrated as a matched assembly. When this encoder is taken off a used motor — regardless of how carefully — that calibration state is disturbed. Reinstalling a used unit on a different motor requires full PLG readjustment, and even then the bearing wear history of the removed unit is unknown.

A new-in-box unit carries full bearing life, an undisturbed optical assembly, and known electrical characteristics. For a component that directly governs spindle accuracy and machine uptime, that matters.

FAQ

Q1: What is a PLG encoder, and how is it different from a standard incremental encoder?

PLG (Pulse Generator) in Mitsubishi's terminology refers to the spindle-side position feedback encoder that communicates via a serial protocol with the MDS spindle drive. Unlike simple A/B/Z incremental encoders, the TS-series PLG encoders transmit high-resolution serial data and store system parameters internally. The drive reads this data to manage spindle orientation, C-axis positioning, and speed regulation.

Q2: Is the TS1860N1170 compatible with all MDS series spindle drives?

Compatibility depends on the specific MDS drive generation and the spindle motor it's fitted to. The TS-series PLG encoders are used across MDS-A, MDS-B, MDS-C, MDS-D, and MDS-DH spindle amplifier families, but the correct encoder variant must match the motor and drive pairing. Always cross-reference the existing encoder part number on the motor nameplate and the spindle drive's parameter settings before ordering.

Q3: Does the PLG encoder need to be adjusted after installation?

Yes. Mitsubishi requires a PLG automatic adjustment procedure whenever the encoder or spindle drive unit is replaced. This recalibration re-establishes the Z-phase reference and verifies signal quality. The procedure is performed through the CNC's service parameter screen or via the MELDAS diagnostic interface — your machine tool documentation covers the exact steps for your specific drive.

Q4: Can the TS1860N1170 be repaired if it fails, or must it be replaced?

Encoder repair is technically possible at specialist facilities, but Mitsubishi's position is that only OEM replacement parts should be used for spindle encoders, given the calibration requirements and the precision of the internal optical assembly. A repaired unit must still pass the full PLG adjustment procedure to confirm it meets signal specifications — the same procedure required for a new encoder.

Q5: What is the difference between the TS1860N1170 and the TS1860N1171?

The TS1860N1170 and TS1860N1171 are closely related encoder variants within the same TS1860N family. The numerical suffix typically indicates a minor revision or variation in connector pinout, cable length, or signal conditioning. Both are shaft-type PLG encoders for Mitsubishi spindle motor applications. Confirm the exact suffix required by checking the part number label on the motor or the spindle drive's compatibility list before substituting one for the other.
