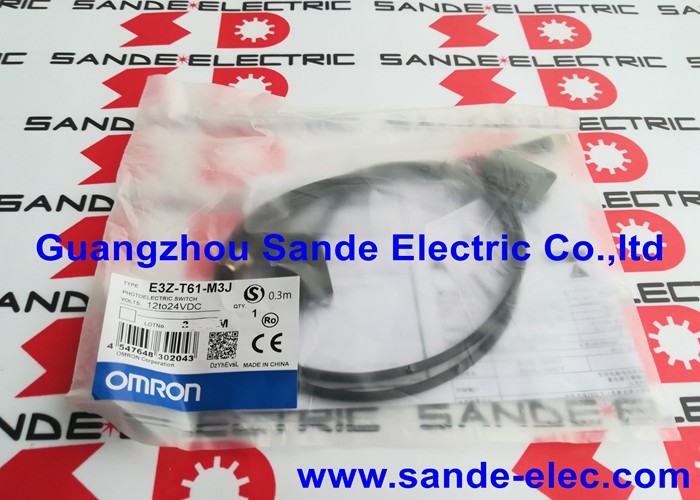

OMRON Photoelectric Switch E3Z-T61-M3J E3ZT61M3J 12-24VDC omron Switch
  • OMRON Photoelectric Switch E3Z-T61-M3J E3ZT61M3J 12-24VDC omron Switch

OMRON Photoelectric Switch E3Z-T61-M3J E3ZT61M3J 12-24VDC omron Switch

Place of Origin China
Brand Name OMRON
Certification CE ROHS
Model Number E3Z-T61-M3J
Product Details
Condition:
New Factory Seal (NFS)
Item No.:
E3Z-T61-M3J
Origin:
JAPAN
Highlight:

photoelectric industrial automation sensors

,

photoelectric smc pneumatic rotary actuator

,

switch industrial automation sensors

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
original packing
Delivery Time
0-3 days
Payment Terms
T/T,PayPal,Western Union
Supply Ability
100 pcs/day
Product Description

Omron E3Z-T61-M3J | Through-Beam Photoelectric Sensor Set — 15m, Infrared 870nm, NPN, Light-ON/Dark-ON, 12–24VDC, IP67, M8 4-Pin Pigtail 0.3m


Overview

The Omron E3Z-T61-M3J is a through-beam photoelectric sensor set from the E3Z compact series, equipped with the M8 4-pin pigtail connector and 0.3-metre lead.

The M3J suffix identifies this specific connection variant within the E3Z-T61 product family: the rectangular 10.8mm-wide PBT housing, 870nm infrared LED, 15-metre sensing range, and NPN switching output are the same as all E3Z-T61 variants; the M3J provides the M8 4-pin pigtail interface as opposed to the standard pre-wired cable (2M suffix) or the 3-pin M5J pigtail alternative.

The E3Z series has sold over one million units annually globally — a production volume that reflects its established position as a baseline choice for through-beam sensing in packaging, conveyor systems, material handling, and machine tool automation.

The combination of 15-metre sensing distance, 10.8mm-wide housing, and 1ms response time in a PBT body with IP67 sealing gives the E3Z-T61 a specification envelope that is difficult to match at its price point, which is why the sensor appears repeatedly in both new machine designs and as a replacement in existing installations.

A through-beam set is two units: the emitter (E3Z-T61-L variant) and the receiver (E3Z-T61-D variant), mounted on opposing sides of the detection zone. The emitter transmits a continuous modulated infrared beam; the receiver monitors the received signal level continuously.

When an opaque target enters the beam path and interrupts the beam, the received signal drops below threshold and the NPN output on the receiver switches. The emitter requires only a power connection — no signal output, no PLC connection.

All the signal processing and output switching is in the receiver unit.


Key Specifications

Parameter Value
Sensing Method Through-beam
Sensing Distance 15 m
Standard Object Opaque, 12mm dia. min.
Light Source Infrared LED, 870 nm
Output NPN open collector, 0–100 mA
Load Voltage 26.4V DC max
Operation Mode Light-ON / Dark-ON selectable
Supply Voltage 12–24V DC
Emitter Current 15 mA max
Receiver Current 20 mA max
Response Time 1 ms max
Connection M8 4-pin pigtail, 0.3m
Housing PBT, 10.8mm wide
IP Rating IP67 + oil-proof
Operating Temperature −25°C to +55°C

15-Metre Through-Beam — Why Range Matters

In photoelectric sensing, the through-beam configuration achieves the greatest possible sensing range for a given LED power and housing size. The beam travels in one direction from emitter to receiver without the double-attenuation penalty of reflected light.

At 15 metres, the E3Z-T61 spans detection zones that most diffuse-reflective sensors cannot approach — the E3Z diffuse-reflective model covers 1 metre from the same housing — and it does so without needing the reflector hardware that retroreflective sensing requires on the far side of the zone.

For large machine areas, industrial doors, wide conveyor zones, and vehicle detection in warehouse aisles, 15 metres covers the full cross-section from a single sensor pair. The mounting footprint is minimal — one 10.8mm-wide housing on each side — with no hardware on the detection zone walls between the two mounting points.

The 15-metre specification applies with no mist, smoke, or particulate in the beam path.

In environments with cutting fluid mist, dust, or steam, effective sensing distance is reduced.

The single-turn sensitivity adjustment allows the operator to increase sensitivity toward maximum to compensate for a contaminated beam path, with the stability indicator confirming that adequate signal margin remains for reliable switching.


M8 4-Pin Pigtail (M3J) — Fast Connection, Compact Profile

The M8 4-pin connector on the M3J variant provides a standard field-disconnectable interface in an 8mm connector diameter. Compared to the 2-metre pre-wired cable (E3Z-T61 2M), the 0.3-metre pigtail reduces the cable mass at the sensor body — an advantage in vibration-prone mounting locations or where the sensor is mounted in a tight space and cable routing starts immediately behind the sensor.

From the M8 pigtail end, a standard M8 4-pin field cable routes to the control panel, junction box, or I/O module.

The 4-pin M8 connector carries four conductors: brown (+V supply), blue (0V common), black (NPN output), and white (not used in this configuration). For the emitter unit, only the supply pins are active.

For the receiver, the black NPN output wire connects to the PLC NPN digital input.

The M8 body diameter is the compact field connector standard — smaller than M12 and appropriate for the E3Z's 10.8mm-wide housing, where an M12 connector would be disproportionate to the sensor body and harder to route in dense sensor installations.


NPN Output — Sinking Logic for PLC Input

The E3Z-T61-M3J's NPN open-collector output is the standard complement for Japanese-specification PLC input cards and for PLC systems using NPN (sinking) digital input modules.

In NPN connection, the receiver's black output wire connects to the PLC input terminal; the NPN transistor, when conducting (target in beam or beam absent depending on mode), pulls the input terminal toward 0V — the PLC reads this as a logic 1 input.

The NPN output handles up to 100mA through the load, covering standard PLC input channels (5–20mA), pilot lights, relays, and small solenoid coils directly.

The residual voltage specification — 1V max at loads below 10mA, 2V max at 10–100mA — means the load sees the supply voltage minus the residual drop when the output is conducting. For PLC inputs with a minimum ON voltage of 11V at 24V supply, 22V at the input terminal (24V minus 2V residual) is comfortably above threshold.


IP67 + Oil-Proof — Machine Tool and Packaging Environment Readiness

Omron specifies IP67 for the E3Z series based on new injection moulding technology applied to the PBT housing — the housing geometry is moulded to seal the internal electronics with no separate gaskets or cover screws that could loosen over time.

The oil-proof designation extends the protection to cutting oils and coolants in the machine tool environment, where sustained oil film contact is the normal sensor surface condition rather than an occasional splash.

The PBT housing itself resists most industrial oils, coolants, and cleaning solvents. For aggressive chemicals — concentrated acids, chlorinated solvents, or specialised metal working fluids — Omron's E3Z documentation provides a chemical resistance table for verifying compatibility before installation.


FAQ

Q1: The E3Z-T61-M3J is a set — which unit connects to the PLC, and how is the emitter powered?

The receiver unit generates the NPN output and connects to the PLC input. Wire the receiver: brown wire to +12–24V DC, blue to 0V, black to PLC NPN input terminal. The emitter requires only a power supply: brown to +12–24V DC, blue to 0V.

The emitter generates no signal output — the white wire on the emitter's M8 connector is unused. Both emitter and receiver draw from the same 24V DC supply bus but have independent power connections.


Q2: How are Light-ON and Dark-ON modes selected, and when is each used?

The operation mode selector is a switch on the receiver body accessible with a small screwdriver or selector tool. Light-ON: output activates when the beam is received (path unobstructed).

The PLC sees ON when nothing is blocking the beam, and OFF when a target breaks it. Dark-ON: output activates when the beam is interrupted. PLC sees ON when the target is detected. Light-ON is the standard mode for object detection (output switches when something enters the zone).

Dark-ON suits confirmation that a path is clear or for counting items passing through the beam (output activates on each beam restoration).


Q3: The sensitivity is manual single-turn adjustment — how is it set during installation?

With the emitter powered and aligned to the receiver, the sensitivity potentiometer is set to maximum initially. The stability indicator (green LED) confirms whether sufficient signal margin exists. If the stability indicator is lit steadily, signal margin is adequate.

If it flickers, the beam alignment needs improvement or the sensing path has contamination.

Reduce sensitivity only if false triggering from reflections or nearby objects occurs — in most clean through-beam installations, maximum sensitivity is the correct setting, providing the widest possible stability margin.


Q4: Can the E3Z-T61-M3J be installed outdoors?

IP67 covers complete dust exclusion and temporary immersion to 1 metre for 30 minutes — the protection level is suitable for weather-exposed outdoor locations that do not involve continuous water jet or submersion.

The operating temperature range is −25°C to +55°C, which covers a wide range of outdoor ambient conditions. For arctic installations (below −25°C), the E3Z-T66/T86 connector variants have an extended −40°C lower limit.

Direct sunlight aimed into the receiver lens can interfere with detection — mount the receiver with its sensing face away from direct sun exposure or use appropriate shielding.


Q5: The standard sensing object is 12mm minimum diameter — can smaller objects be detected?

The 12mm minimum size applies at the full 15-metre range, where the beam's cross-section at the detection point determines the smallest reliably detectable object. At shorter installation distances, smaller objects can be detected — at 1 metre, objects of a few millimetres diameter interrupt the beam reliably.

If the application requires detecting objects smaller than 12mm at long range, narrow slit accessories (ordered separately) can be fitted to both emitter and receiver to define a narrower beam cross-section, reducing maximum sensing distance but increasing sensitivity to small objects along the beam axis.
