Omron E2E-X3D1-N Proximity Switch Sensor
M12, 3mm, Shielded, DC 2-Wire Normally Open
Brand: Omron | Series: E2E | Part Number: E2E-X3D1-N / E2EX3D1N

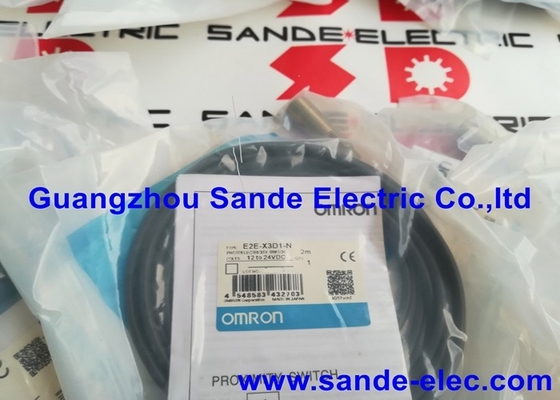

Status: New in Original Pack | Free Shipping | In Stock
Proven Reliability in Industrial Applications
The Omron E2E-X3D1-N shielded inductive proximity switch has established itself as a benchmark for reliability across machine tools, conveyors, robotic cells, and assembly fixtures. This M12 threaded cylindrical sensor features 3mm sensing range, DC 2-wire normally-open output, and IP67 environmental protection for detecting ferrous metal targets without physical contact.
Key Specifications
| Specification |
Value |
| Housing |
M12 cylindrical, threaded barrel |
| Sensing Distance |
3 mm (rated) |
| Sensing Method |
Inductive (ferrous metals) |
| Shielding |
Shielded — flush mount capable |
| Output Type |
DC 2-wire, polarity protected |
| Operation Mode |
NO (Normally Open) |
| Supply Voltage |
10 to 30V DC |
| Load Current Range |
3 to 100 mA |
| Response Frequency |
1,000 Hz maximum |
| Operating Temperature |
−25°C to +70°C |
| Degree of Protection |
IP67 / Oil-proof |
| Housing Material |
Nickel-plated brass |
| Certifications |
CE, NEMA 1/4/6/12/13 |
Source: Omron E2E Series Datasheet, Cat. No. D126-E1
Flush Mount Capability
The shielded design directs the electromagnetic field forward through the sensor face, allowing flush installation in metal brackets and machine frames without interference. This eliminates the need for plastic spacer rings or minimum standoff requirements, providing maximum design flexibility in compact installations.
2-Wire DC Simplicity
The DC 2-wire output architecture simplifies installation by requiring only two conductors, making it ideal for replacing mechanical switches and reducing wiring complexity. This design offers direct compatibility with most PLC input cards while maintaining reliable operation.
High-Speed Performance
With a 1,000 Hz maximum response frequency, this sensor handles high-speed applications including gear tooth counting, indexing, and rotary target detection with ample performance margin for standard industrial applications.
Robust Environmental Protection
IP67 certification ensures complete protection against dust ingress and temporary water immersion. The oil-resistant sensing face and PVC cable jacket provide additional protection against cutting oils, coolants, and high-pressure washdown environments common in machine tool applications.
Dual LED Indicators
- Green Setting Indicator: Confirms power and target detection within sensing range during installation
- Red Operation Indicator: Shows real-time output state for commissioning and troubleshooting
Common Applications
- Machine tools and CNC centers - part presence detection and position confirmation
- Robotic end-of-arm tooling - gripper part detection and workpiece verification
- Conveyor systems - pallet detection and position confirmation
- Stamping and press lines - die protection and material feed confirmation
- Automotive assembly - component presence verification
- Food and beverage lines - metal packaging detection
Model Variants
| Model |
Connection |
Notes |
| E2E-X3D1-N 2M |
Pre-wired, 2m PVC cable |
Most common stocked variant |
| E2E-X3D1-N 5M |
Pre-wired, 5m PVC cable |
Longer runs without extension |
| E2E-X3D1-M1G |
M12 connector |
Quick-disconnect installations |
| E2E-X3D2-N 2M |
Pre-wired, 2m PVC cable |
NC output version |
Frequently Asked Questions
Does the E2E-X3D1-N detect non-ferrous metals like aluminum or stainless steel?
While optimized for ferrous metals, this sensor will detect non-ferrous metals with reduced sensing distance (typically 40-50% of rated distance for aluminum). Verify detection reliability with actual target material during installation.
Can multiple sensors be mounted close together?
Yes, with minimum spacing of 30mm side-by-side or 20mm facing each other to prevent mutual interference. For closer spacing, consider alternative-frequency variants.
What is the difference between NO and NC output?
Normally Open (NO) output closes when target detected (E2E-X3D1-N). Normally Closed (NC) output opens when target detected (E2E-X3D2-N). Most applications use NO for presence detection logic.
What is the 3mA minimum load requirement?
DC 2-wire sensors require minimum 3mA load current for proper operation. Most industrial PLC inputs draw 5-15mA, well above this threshold.
Is the E2E-X3D1-N being replaced by newer models?
While Omron offers E2E NEXT series with enhanced features, the E2E-X3D1-N remains available and is the direct replacement for existing installations requiring identical form, fit, and function.
Packaging and Shipping

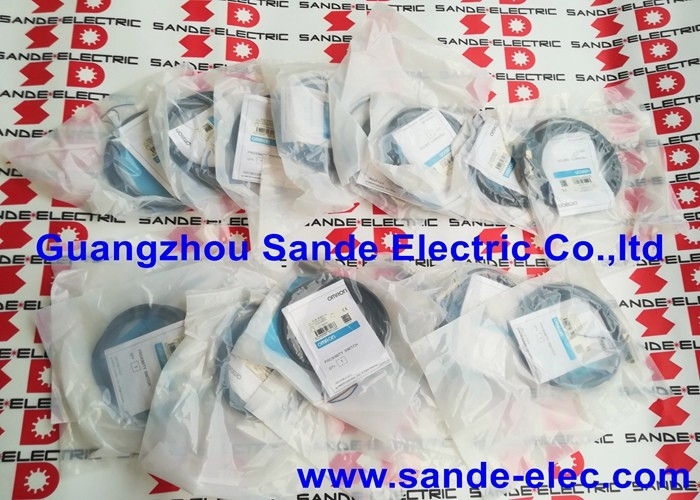

Ships new in original Omron packaging, factory sealed. Free shipping included with prompt dispatch for in-stock units. International orders ship via DHL, FedEx, or UPS with full tracking.
