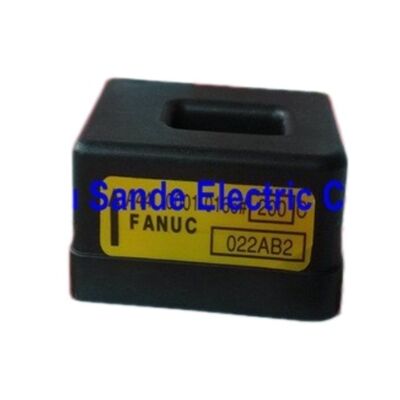

Fanuc A44L-0001-0166#200C | Hall Effect Current Sensor — ±200A, Closed-Loop, CNC Servo/Spindle, LEM HTB-200-P Equivalent

Overview

The Fanuc A44L-0001-0166#200C is a closed-loop Hall effect current sensor that measures the motor phase currents in Fanuc servo and spindle amplifiers, feeding an analogue signal proportional to the instantaneous current back to the amplifier's current control loop.

The #200C suffix identifies the ±200A measurement range. This sensor is electrically and functionally equivalent to the LEM HTB-200-P and appears in Fanuc amplifier modules wherever phase current measurement at this range is required.

Current measurement is the innermost feedback loop in any servo or spindle drive. The amplifier commands a current through the motor winding to produce torque; the A44L-0001-0166#200C measures what actually flows and reports it back.

The current controller compares commanded and measured current every PWM switching cycle — typically at 4kHz to 16kHz — and adjusts the output to eliminate the difference. This closed-loop current control is what gives Fanuc servo axes their torque linearity and dynamic response, and why a failed or drifted current sensor causes immediate performance degradation or alarm conditions.

The closed-loop (compensated) operating principle differentiates this sensor from simpler Hall effect designs. An active feedback coil wound around the sensor's magnetic core drives a compensation current that exactly cancels the magnetic field from the primary conductor.

The amplifier measures this compensation current — which mirrors the primary current with high linearity and minimal temperature drift — rather than the Hall element's voltage directly. This active cancellation delivers the linearity and bandwidth that motor current control requires.

Key Specifications

Galvanic Isolation — Safety and Signal Integrity

The motor phase conductors passing through the A44L-0001-0166#200C carry currents from a DC link typically operating at 300–600V depending on the Fanuc amplifier type.

The control circuit receiving the sensor's analogue output operates at low voltage, ground-referenced to the CNC controller. Without high isolation, voltage transients from IGBT switching events on the DC bus would couple through the sensor into the current feedback signal, corrupting the measurement with noise and potentially damaging the CNC's analogue measurement circuits.

The sensor's high galvanic isolation — typically specified in the kilovolt range for LEM HTB-series devices — maintains the electrical separation between the power and control domains. The analogue output accurately represents the primary current without any DC bus potential coupling into the control circuit. This isolation is both a performance specification (clean current signal) and a safety specification (control circuit protection from power circuit voltages).

When This Sensor Fails

A drifted or failed A44L-0001-0166#200C produces characteristic symptoms in the Fanuc system. An offset at zero current — the sensor reporting a non-zero current when none flows — appears as a continuous torque command at standstill and can cause axis drift or oscillation.

A gain error (sensitivity different from the calibrated value) causes the axis torque to be proportionally wrong, degrading positioning performance and in severe cases triggering the servo controller's following error alarm.

A completely failed sensor typically triggers an immediate overcurrent alarm even at low motor currents, because the amplifier reads an incorrect value that exceeds the protection threshold.

Before replacing the sensor, confirm the ±15V supply is correct and stable, and that the sensor's connector is properly seated. A loose connector or intermittent supply fault can produce symptoms identical to a failed sensor.

FAQ

Q1: Is the A44L-0001-0166#200C directly replaceable with a LEM HTB-200-P?

Yes, in most cases. The A44L-0001-0166#200C is the Fanuc procurement designation for the LEM HTB-200-P used in Fanuc amplifiers.

The electrical specifications are equivalent. Before installing a LEM HTB-200-P as a replacement, confirm the connector pin-out and orientation match the amplifier's PCB footprint — some Fanuc amplifier revisions mount the sensor in a specific orientation.

The measuring range, supply voltage, and output scaling are the same.

Q2: How is the A44L-0001-0166#200C installed in the amplifier?

The sensor is a board-level component mounted on or near the DC bus bars in the Fanuc amplifier module. Replacement is a repair procedure requiring full de-energisation of the amplifier and discharge of the DC bus capacitors to safe voltage (measured at the bus capacitors, not just at the power switch) before handling any internal components.

The Fanuc amplifier maintenance documentation specifies the discharge wait time and verification procedure. Replacing the sensor without confirming bus capacitor discharge risks fatal electric shock.

Q3: Which Fanuc amplifier types use this sensor?

The A44L-0001-0166#200C is used in Fanuc servo amplifier modules and spindle amplifier units that require ±200A current measurement — typically the higher-current modules in the Alpha and Beta series amplifier families, and in Fanuc Power Supply/Amplifier (PSM) modules.

The exact amplifier models that use this sensor can be confirmed from the Fanuc amplifier parts list for the specific module being repaired.

Q4: Can a failed sensor cause repeated overcurrent trips even though the motor is not overloaded?

Yes. If the sensor's output offset has drifted or the sensor has failed in a way that produces a non-zero output with no primary current, the amplifier reads a phantom current. When this phantom reading exceeds the overcurrent protection threshold, the amplifier trips on overcurrent even though the motor is not actually drawing excessive current.

This is a common diagnostic pattern: overcurrent alarms that occur at low or zero load, clear on power cycle, and repeat — pointing to a sensor issue rather than a genuine motor or load problem.

Q5: Does the ±200A rating mean the sensor measures AC and DC current, or only AC?

The ± rating means the sensor measures bidirectional current — it reports both positive and negative phase current accurately across the full ±200A range.

In AC motor drives, the motor phase currents are sinusoidal, alternating between positive and negative values. The closed-loop Hall effect principle operates correctly for both polarities, making the sensor suitable for AC servo and spindle motor current measurement without any half-wave clipping or rectification.
