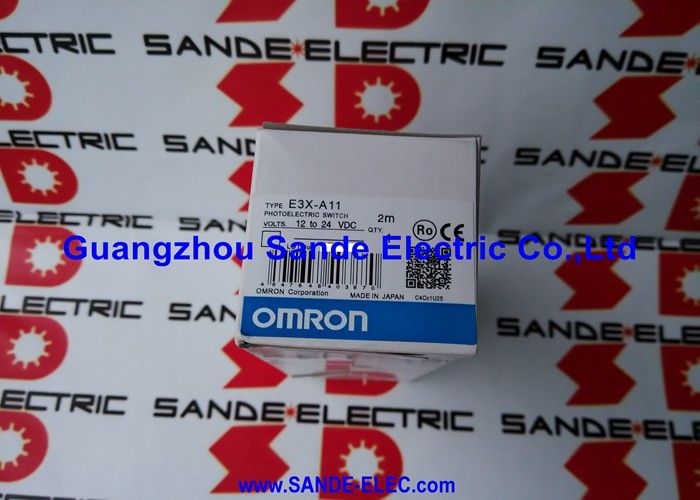

Omron E3X-A11 E3XA11 Photoelectric Switch

Omron E3XA11 Fiber Optic Amplifier

Overview

The E3XA11 is best positioned as a compact fiber-optic amplifier for general-purpose industrial sensing.

In public industrial channels, this model is commonly listed as E3X-A11, and Omron’s amplifier documentation places it in the E3X family as an NPN-output general-purpose fiber amplifier designed to work with E32-series fiber heads.

That makes it a practical choice for compact sensing points where the detection head must be separated from the amplifier and the machine requires a small, flexible optical solution.

A key advantage of this model is its flexibility in tight mechanical spaces. Because the amplifier is separate from the fiber head, the optical sensing point can be placed exactly where the machine needs it, while the amplifier body stays accessible for adjustment and service.

In practice, that makes the E3XA11 suitable for narrow mechanisms, parts feeders, small assembly stations, electronics handling, and other equipment where a conventional self-contained photoelectric sensor would be too large or too difficult to position.

The model also keeps field setup straightforward. Omron’s published data shows 10 to 30 VDC supply, NPN open-collector output, Light-ON / Dark-ON / SET modes, an 8-turn sensitivity potentiometer with indicator, and a 2 m cable.

These features give the installer useful manual control without making the amplifier overly complicated, which is one reason older E3X amplifiers remain popular in repair and replacement work.

Key Specifications

Fiber Amplifier Architecture

The biggest strength of this model is the fiber-optic amplifier format itself. With a fiber system, the sensing head can be extremely small, while the amplifier remains in a more accessible position for wiring and adjustment.

That makes the E3XA11 useful in compact equipment where the sensing point is physically difficult to reach or where the designer needs to route light into a narrow detection zone.

This architecture is especially valuable in applications involving small parts, precise alignment, or mechanically crowded assemblies.

Instead of compromising the sensing point to accommodate a larger sensor body, the designer can place the fiber head exactly where the target passes and keep the amplifier accessible for tuning and maintenance.

Manual Sensitivity and Output Logic

The 8-turn sensitivity adjustment is one of the most useful practical features of this model. It gives the installer a fine level of control when optimizing detection for a specific target, background, or fiber arrangement. In real machine settings, that can make a major difference when target reflectivity, distance, or alignment must be dialed in precisely rather than accepted as a fixed factory setting.

The selectable Light-ON / Dark-ON behavior also improves flexibility.

It allows the amplifier to match the control logic of the machine without forcing a PLC programmer to invert the signal in software. For replacement work, that can make the transition smoother and reduce commissioning time.

FAQ

Q1: What kind of applications is E3XA11 best suited for?
It is best suited for compact optical sensing tasks where the detection point is small or difficult to access.

Typical examples include electronics handling, small-part detection, assembly fixtures, narrow transfer paths, and other machines where a fiber head is easier to position than a self-contained photoelectric sensor.

Q2: Why would an engineer choose a fiber-optic amplifier instead of a standard photoelectric sensor?
The main reason is installation flexibility. A fiber system separates the amplifier from the sensing point, so the light can be routed into tight spaces while the amplifier remains accessible for wiring and adjustment. This is especially valuable in compact or precision-oriented machine designs.

Q3: How useful is the 8-turn sensitivity adjustment in practice?
It is very useful when the application requires careful tuning. The 8-turn adjuster gives better control over the sensing threshold than a simple one-turn trimmer, which helps when dealing with small targets, reflective variation, or fiber setups that need more precise optimization.

Q4: What should buyers check before using E3XA11 as a replacement?
Buyers should verify the exact amplifier type, output logic, power supply, cable format, and the fiber head used on the machine. Since this model works with E32-series fiber units, the amplifier and fiber pairing should be checked together rather than treated as separate unrelated parts.

Q5: Is this model still more useful for replacement than for new design?
In many cases, yes. Public distribution channels identify E3X-A11 in legacy and surplus contexts, so it is especially practical for maintaining installed equipment or matching an existing control layout. For that reason, exact replacement fit is often more important than broad feature comparison.
