FANUC Sensor A860-2120-V004 A8602120V004 A860-2120-V004

Fanuc A860-2120-V004 | AiBZ Spindle Encoder Sensor Without Mounting Ring — Built-In AC Spindle Motor Position Feedback, Sensor Element Only

Part Number: A860-2120-V004

Series: A860-2120

Manufacturer: Fanuc Corporation

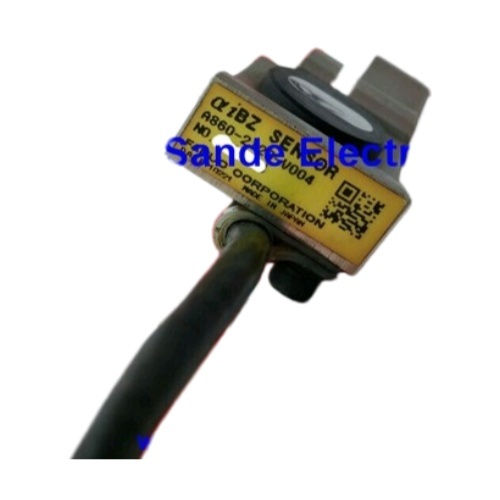

Description: AiBZ SENSOR W/O MOUNTING RING

Application: Fanuc built-in AC spindle motor — position and speed feedback

Hardware: Sensor element only (mounting ring not included)

Condition: New / Refurbished

Overview

The Fanuc A860-2120-V004 is the sensor-only variant of the A860-2120 AiBZ encoder for Fanuc built-in AC spindle motors — functionally identical to the A860-2120-V003 in every aspect except the absence of the mounting ring.

The sensor element is the part that wears and fails; the mounting ring, when not corroded or mechanically damaged, outlasts many sensor replacements because it is a passive mechanical component with no electronic content and no moving parts.

In practice, a first sensor replacement on an older spindle motor often finds the original mounting ring in acceptable condition.

In that scenario, the A860-2120-V004 is the economical correct choice: the ring stays in the machine, the failed sensor element is removed, the new V004 sensor is pressed into the existing ring, and the cable is reconnected.

The machine is back in operation without the additional cost and procurement lead time of sourcing a ring that was not required.

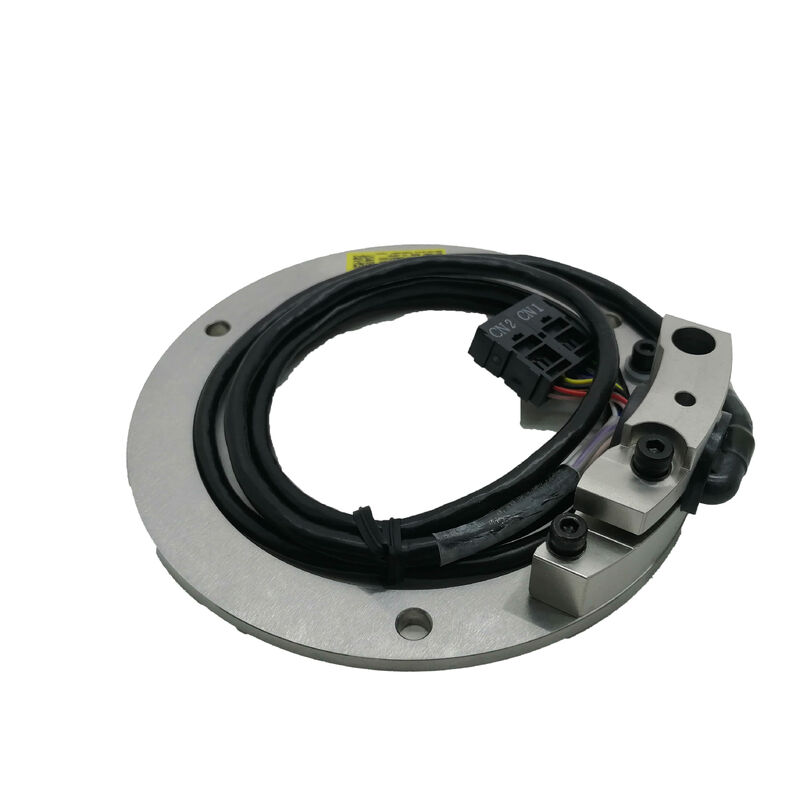

Where the A860-2120-V003 (with ring) is the right choice is when the ring is physically damaged, when the sensor and ring are being replaced as a matched assembly during a spindle overhaul, or when a complete assembly is needed as a ready-to-install spare rather than relying on the machine's existing ring being serviceable.

Key Specifications

When to Choose V004 Over V003

The decision between V004 (sensor only) and V003 (sensor with ring) is a maintenance engineering choice, not a performance choice — both deliver identical encoder function once installed. The variables are:

Existing ring condition: A ring that has no corrosion, no physical damage, and retains its dimensional accuracy from original manufacture will work perfectly with the V004 sensor. Before deciding, inspect the ring bore for scoring, measure the bore diameter if possible, and check the seating surfaces. A ring in good condition is worth keeping.

Installation history: A ring that has been in service through multiple maintenance cycles involving incorrect tool use, thermal cycling in a high-temperature spindle environment, or exposure to coolant may have dimensional changes that affect the air gap. When in doubt, replace with V003 and renew the complete assembly.

Downtime cost: In facilities where spindle downtime is extremely costly, having a V003 complete assembly as a ready-to-install spare — requiring no evaluation of the existing ring — reduces the time between fault identification and machine-back-in-service.

The extra cost of the ring is small compared to the labour of inspecting and measuring the existing ring under time pressure.

AiBZ Sensor in the Spindle Control Loop

The AiBZ sensor in the A860-2120 series sits at the foundation of the built-in spindle motor's closed-loop control. Removing the sensor — or operating with a degraded sensor — changes the motor from a servo-controlled axis to an open-loop induction motor incapable of orientation, tapping, or C-axis functions.

The sensor's output is processed by the spindle amplifier's encoder receive circuit, which uses the A-phase and B-phase quadrature signals to track incremental position changes and the Z-phase once-per-revolution pulse to re-establish absolute position after power-up. In normal operation, the amplifier's encoder health monitoring checks signal amplitude and pulse integrity on every revolution — any significant degradation triggers the encoder alarm that initiates troubleshooting.

On machines with rigid tapping cycles or synchronised thread cutting, the encoder signal quality directly affects thread pitch accuracy. Partial signal degradation — where the encoder is producing output but with amplitude below nominal — may manifest as occasional threading errors under high cutting load before the drive generates a hard fault.

If a machine is showing inconsistent threading accuracy without a clean encoder alarm, the sensor signal amplitude should be checked against Fanuc's specification for the A860-2120 series.

Compatibility and Sourcing Notes

The A860-2120 sensor series covers multiple V-suffix variants — V003, V004, V007, V013, and others — with differences in connection length, cable routing, and mounting hardware.

The V004 is the sensor element only across the A860-2120 series. When identifying the correct replacement, match the full part number from the motor's maintenance documentation or the sensor's label rather than assuming V004 interchanges freely with all A860-2120 variants.

Fanuc makes the A860-2120 series for its αi-series built-in spindle motors.

The specific motor model in the machine determines which A860-2120 variant is correct. Fanuc's spindle motor spare parts list (available from Fanuc service or authorised service partners) maps motor model numbers to sensor part numbers.

FAQ

Q1: The sensor is listed "W/O MOUNTING RING" — can it still be installed in a machine that currently has the V003 (with ring) installed?

Yes. The V004 sensor element fits into the same mounting ring that the V003 originally included. When performing a replacement: remove the V003 sensor element from the ring (the ring typically remains in the motor housing), inspect and verify the ring condition, then insert the V004 sensor into the existing ring.

The mechanical assembly and air gap are identical to the original V003 installation, assuming the ring is undamaged.

Q2: How can I confirm whether the existing mounting ring is still serviceable before ordering V004 instead of V003?

With the machine safely shut down and the encoder cavity accessible, inspect the ring for visible cracks, corrosion pitting, distortion of the bore or seating faces, and evidence of coolant contamination that may have created scale deposits altering the bore diameter.

If the ring shows none of these issues, it is likely serviceable. If the ring bore is visibly out-of-round, corroded, or has any structural damage, order the V003 to include a new ring.

If in doubt, the cost difference between V003 and V004 is usually smaller than the cost of a repeat maintenance procedure to replace a marginal ring.

Q3: Does the V004 require any programming changes after installation?

No. The A860-2120 sensor series generates the same signal interface regardless of the V003/V004 variant — both use the same AiBZ encoder protocol with the same signal levels and connector configuration. Replacing a V003 with a V004 (or vice versa) requires no CNC parameter changes.

After installation, the standard post-replacement verification (orientation test, encoder diagnostic check) confirms correct function without any software adjustment.

Q4: What causes AiBZ sensors to fail, and can failure be predicted before the hard fault occurs?

Common failure modes include contamination ingress (coolant penetrating the sensor housing and corroding the electronics or signal tracks), vibration-induced mechanical failure of internal solder joints, and LED/photodetector degradation in optical encoder types.

Early signs include increasing frequency of encoder alarms that clear on power cycle (pointing to intermittent signal), drift in spindle orientation stop position (suggesting Z-pulse timing variation), and reduced signal amplitude visible on the amplifier's diagnostic.

Monitoring encoder alarm history and orientation consistency over time provides advance warning before a hard failure.

Q5: Is refurbished A860-2120-V004 a viable alternative to new?

Yes, with qualifications. Reputable Fanuc service partners and specialist refurbishers disassemble, clean, replace worn internal components, and test refurbished sensors against Fanuc's signal specification before resale. A refurbished V004 from a quality refurbisher is a viable maintenance part for standard production use.

For machines running critical production where spindle downtime is extremely costly, new sensors provide the highest confidence in remaining service life.

A refurbished sensor at reduced cost is appropriate for machines with lower criticality, backup machines, or where budget constraints apply.
