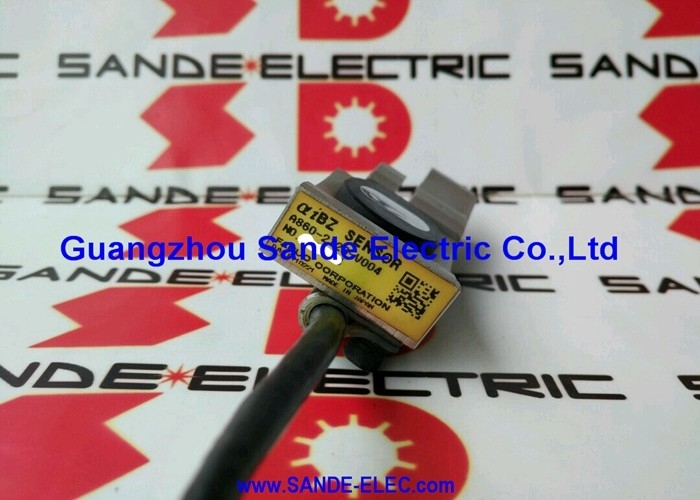

Fanuc A860-2150-T611 | AiBZ Sensor Assembly 512 (Thin Type) — Built-In AC Spindle Motor Encoder, Compact Profile, 512-Tooth Resolution

Part Number: A860-2150-T611

Series: A860-2150

Manufacturer: Fanuc Corporation

Description: AiBZ SENSOR ASSY 512 (THIN TYPE)

Resolution: 512 teeth (signal periods per revolution)

Profile: Thin type — compact axial depth

Application: Fanuc built-in AC spindle motor, space-constrained installations

Condition: New / Refurbished

Overview

The Fanuc A860-2150-T611 is the 512-tooth, thin-profile variant in Fanuc's A860-2150 AiBZ sensor assembly series.

It is a complete sensor assembly — sensor head, signal processing board, and mechanical housing integrated into a single replaceable unit — designed for the internal encoder cavity of Fanuc's built-in AC spindle motor.

The "thin type" designation specifies the axial depth of the assembly, which is shorter than the standard-profile A860-2120 series sensors, making the A860-2150-T611 the correct replacement for spindle motor models whose encoder cavity is dimensioned for the compact assembly rather than the full-depth unit.

The 512-tooth resolution number identifies the number of signal periods the sensor generates per revolution of the tone wheel or magnetic target.

At 512 teeth with quadrature decoding (multiplying by four), the encoder interface receives 2,048 position counts per revolution — sufficient for accurate velocity regulation across the spindle's full speed range and for the position resolution required by orientation, tapping, and C-axis functions.

The "T" in the part number suffix identifies this as a thin-type assembly within the 512-tooth sensor family.

Within the A860-2150 series, Fanuc offers multiple tooth-count variants — T301 (192), T401 (256), T511 (384), T611 (512), and higher — each matching specific spindle motor designs where the motor's tone wheel tooth count was set during original manufacturing.

Substituting a sensor with a different tooth count than the installed tone wheel produces a speed feedback error proportional to the count mismatch, immediately visible as incorrect spindle speed display and motor control anomalies.

Key Specifications

The Thin-Type Form Factor — Why Physical Profile Matters

Fanuc developed the thin-type sensor assembly specifically for built-in spindle motors where the rear bearing housing and encoder cavity are tightly dimensioned. In a built-in motor, every axial millimetre is shared between the motor's active magnetic length, the bearing span, and the encoder assembly.

Longer spindle motors in larger machines typically have enough axial depth to accommodate the standard-profile sensor. Shorter motors — common in high-speed spindle designs and compact machining centres — require the thin profile of the A860-2150 series to fit within the available cavity depth without interference.

The consequence of fitting the wrong profile is direct: a standard-depth sensor pressed into a thin-type cavity either cannot be fully seated (leaving an incorrect air gap) or contacts the rotating tone wheel (causing immediate mechanical damage on first motor rotation).

This makes physical profile one of the non-negotiable selection criteria — the correct part number must match the motor's encoder cavity design, not just the tone wheel tooth count.

512-Tooth Resolution — Position Feedback Quality

At 512 teeth per revolution with four-times interpolation, the encoder delivers 2,048 increments per revolution to the spindle drive's position and velocity loop. For a spindle operating at 100 RPM under C-axis interpolation, this translates to approximately 34 increments per second at 1 RPM — a position resolution of 0.176° per count.

For orientation accuracy and tapping synchronisation, this resolution is sufficient for standard machining operations; for ultra-precision applications requiring angular accuracy of less than 0.01°, higher-tooth-count sensors in the A860-2150 family or a separate high-resolution C-axis encoder would be appropriate.

The velocity loop benefits directly from higher tooth count: more pulses per revolution means the drive's velocity calculation updates more frequently with smaller incremental changes, improving the smoothness of the speed regulation and reducing the velocity ripple that can produce surface finish variations at the cutter.

Complete Sensor Assembly — Single Unit Replacement

The A860-2150-T611 is a complete assembly — the sensor head, signal conditioning electronics, and connector are integrated into the unit. There is no separate amplifier board or external signal processor to source independently.

This design makes the replacement procedure straightforward: disconnect the encoder cable, remove the old assembly, install the new A860-2150-T611, reconnect the cable, and verify encoder operation through the CNC diagnostic screen during a test orientation.

The integrated design also eliminates the compatibility uncertainty that comes from mixing sensor head and amplifier board from different variants.

FAQ

Q1: How do I confirm that the 512-tooth A860-2150-T611 is the correct sensor for my spindle motor?

The tone wheel tooth count is permanently set in the motor at manufacturing and is specified in the motor's parameter set stored in the CNC. On Fanuc controls, spindle parameter No. 4010 or 4011 typically stores the encoder gear ratio between the motor encoder and the spindle, and the motor data sheet specifies the sensor assembly part number for that motor model.

Cross-reference the motor nameplate model number against Fanuc's spindle motor spare parts list to confirm the correct sensor assembly part number.

Installing a sensor with incorrect tooth count produces immediate speed feedback errors visible in the spindle speed monitoring display.

Q2: The part number ends in -T611 — what does this suffix structure mean within the A860-2150 series?

Within the A860-2150 thin-type series, Fanuc uses the suffix to encode the tooth count: T301 = 192 teeth, T401 = 256 teeth, T511 = 384 teeth, T611 = 512 teeth.

The first digit after T indicates the resolution tier; the remaining digits further specify the sub-variant.

The A860-2120 series (standard depth) uses V-prefix suffixes for different configurations.

When ordering a replacement, the complete suffix must match the installed unit — substituting a sensor with a numerically similar but physically different suffix code will result in either incorrect fit or incorrect feedback resolution.

Q3: Can the A860-2150-T611 be repaired if only the signal processing electronics fail while the sensor head is intact?

The A860-2150-T611 is designed as an integrated assembly — Fanuc does not recommend or support selective repair of the internal components. If the signal processing electronics fail, the correct action is to replace the complete assembly with a new or refurbished A860-2150-T611.

Specialist Fanuc repair centres do offer refurbishment of spindle sensor assemblies, which may be a cost-effective alternative to new purchase, particularly for older motors where new sensors have long lead times or are becoming scarce.

Q4: What is the connection interface of the A860-2150-T611 sensor assembly?

The A860-2150-T611 connects to the spindle amplifier via Fanuc's standard spindle encoder cable — a shielded multi-conductor cable with the Fanuc connector format used on the αi-series spindle amplifiers.

The encoder cable routes from the sensor assembly through the motor's cable exit to the amplifier's JY1 or equivalent spindle encoder connector.

Cable length must be appropriate for the machine's routing; Fanuc specifies maximum cable lengths for encoder connections based on the signal type to avoid signal degradation from cable capacitance and resistance.

Q5: After installing the A860-2150-T611, what verification steps confirm the sensor is functioning correctly?

Power up the CNC and monitor the spindle section of the diagnostic screen for encoder alarm codes. With no alarms active, command a slow spindle orientation and observe the encoder count incrementing on the diagnostic display.

Verify that the Z pulse is detected — the drive should complete the orientation and hold the spindle at the commanded angle. Check the spindle speed display against commanded RPM at several speed points.

If the displayed speed and commanded speed match throughout the range and orientation completes without alarm, the sensor is correctly installed and functioning. Persistent alarm SP-9001 after installation typically indicates a cable or connector issue rather than sensor failure.
