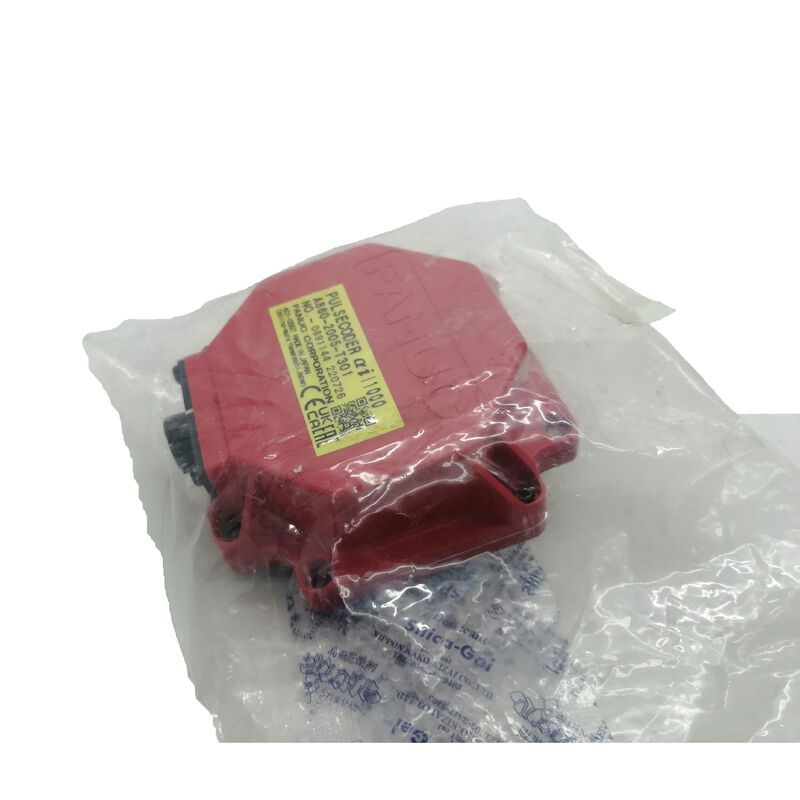

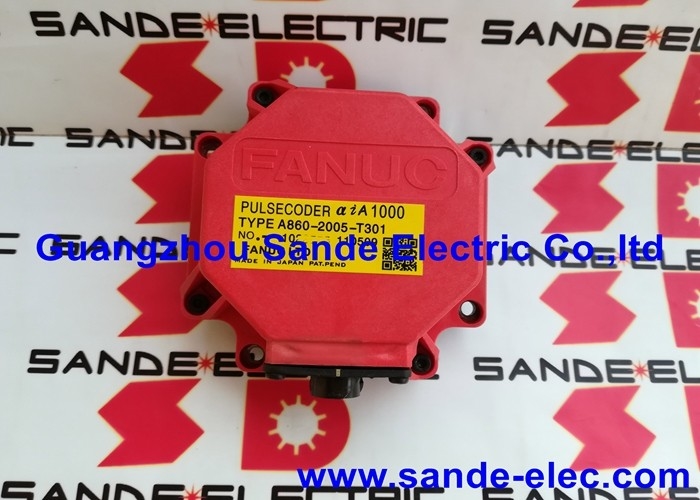

FANUC A860-2005-T301 Pulse Coder — aiI1000 Incremental Encoder for Alpha i Series AC Servo Motors

There's a short list of components that, when they fail, bring a CNC machine to a complete stop. The servo motor pulse coder is near the top of that list. The FANUC A860-2005-T301 is the aiI1000 incremental encoder fitted across the wide-ranging Alpha i series AC servo motor family — one of the most broadly deployed feedback devices in FANUC's industrial motion control ecosystem, covering motor sizes from compact axis drives all the way through large-format high-torque units.

What the aiI1000 Designation Means

The "I" in aiI1000 is the critical character: this is an incremental pulse coder, not an absolute one. Where an absolute encoder outputs a unique position code at every shaft angle regardless of power history, the aiI1000 generates a continuous pulse stream as the shaft rotates — high-resolution quadrature feedback that the FANUC servo amplifier processes to determine speed, direction, and positional change.

Incremental feedback works in combination with the CNC control's reference position system. At machine startup, each axis performs a reference return, establishing a known datum. From that point, the aiI1000 encoder tracks all movement with its 1,000,000-pulse-per-revolution resolution — enough granularity to support tight positioning tolerances and smooth velocity control across the full operating speed range of the Alpha i motor family.

Technical Specifications

A Motor Range That Spans the Industry

What sets the A860-2005-T301 apart from narrower-application encoders is the breadth of Alpha i motors it serves. From the αi2/4000 — a compact, fast motor suited to smaller axis drives — through to the high-torque αi50 variants, the aiI1000 pulsecoder is the standard feedback device across the medium and larger frames of FANUC's entire Alpha i AC servo range.

This spans both 200 V AC and 400 V AC motor variants, meaning the same encoder part number covers machines built for different regional power standards without changes to the motor feedback system. It also means that maintenance teams managing mixed machine fleets can stock a single encoder part number and know it applies to a substantial proportion of their Alpha i servo motors.

Installation: The Oldham's Coupling Method

The A860-2005-T301 installs via an Oldham's coupling — a three-piece mechanical coupling that connects the encoder shaft to the motor shaft while accommodating slight angular and parallel misalignment between the two. This is FANUC's standard mounting approach for the Alpha i pulsecoder family, and the installation procedure is documented in FANUC's motor technical manuals.

The practical steps: four M4 hexagonal socket head bolts secure the pulsecoder to the motor end bell. An O-ring seals the encoder into the motor pocket, preventing contamination ingress at the interface. The coupling requires correct orientation during reassembly — the teeth must engage properly, and the O-ring must seat cleanly without being pinched.

One caution worth noting: FANUC's own documentation emphasises that the pulsecoder and motor cover must not receive physical shocks during installation, as these are precision optical devices. Protecting the encoder from dust and swarf during the replacement procedure is equally important.

Where This Encoder Is at Work

The Alpha i motor series became the dominant FANUC servo platform from the early 2000s and remained in widespread new machine production for well over a decade. That installed base translates to the A860-2005-T301 being a genuinely common maintenance item across:

CNC Machining Centers — primary axis drives (X, Y, Z, B, C) on 3-axis, 4-axis, and 5-axis machining centers from builders including Mazak, Makino, Okuma, DMG Mori, Doosan, and many others running FANUC 16i, 18i, 30i, and 31i controls

CNC Turning Centers and Lathes — axis servo drives on 2-axis, multi-axis, and mill-turn configurations where Alpha i motors power the tool carrier and workpiece axis

FANUC Industrial Robots — arm joint drives on M, R, and LR series robots where the αi motor family provides the high-performance actuation

Dedicated Production Equipment — custom automation cells, transfer lines, and special-purpose machines built around Alpha i servo drives in automotive, aerospace, and general manufacturing environments

A Note on Fault Diagnosis Before Replacement

One of the most common mistakes in encoder replacement is replacing the encoder without first confirming it's actually the failed component. FANUC servo alarms related to encoder faults (typically SV alarms in the 300–499 range on FANUC CNC systems) can also be triggered by cable damage, connector corrosion, amplifier faults, or interference on the encoder signal line.

Before committing to encoder replacement, checking the encoder cable continuity, inspecting the connector at both the motor and amplifier ends, and swapping to a known-good cable are worth doing. A confirmed encoder failure — verified either by static testing equipment or by mounting the suspect encoder on a test motor with a FANUC amplifier — gives the highest confidence that replacement will resolve the fault.

FAQ

Q1: Is the FANUC A860-2005-T301 an absolute or incremental encoder?

It is incremental. The "I" in aiI1000 stands for incremental. Unlike absolute encoders, it does not retain position data through power-off — the CNC control must perform a reference return (axis homing) at each machine startup to establish the axis datum position.

Q2: Which FANUC servo motors use the A860-2005-T301?

This encoder covers the FANUC Alpha i series AC servo motors from αi2/4000 through αi4, αi8, αi12, αi22, αi30, αi40, and αi50, across all speed variants. It is used on both 200 V and 400 V motor versions. Always confirm by checking the encoder label on the motor — the part number on the label is the definitive compatibility reference.

Q3: What CNC controls and servo amplifiers work with the A860-2005-T301?

This pulse coder communicates via FANUC's high-speed serial link with αi and βi series servo amplifiers, paired with CNC controls in the 0i, 16i/18i/21i, and 30i/31i/32i families. These are the dominant FANUC platforms in machine tools and robots built from the early 2000s to the present.

Q4: What FANUC alarms typically indicate a failed A860-2005-T301?

Encoder-related failures typically trigger SV alarms (servo alarms) on the FANUC CNC display — common codes include SV0364 (CSAL alarm), SV0368 (soft phase alarm), and related encoder communication or count errors. Before concluding the encoder has failed, inspect the encoder cable and connector, as cable faults produce identical alarm codes.

Q5: Can the A860-2005-T301 be repaired when it fails?

Genuine repair is rarely achievable. FANUC manufactures the aiI1000 as a sealed precision assembly, and the internal optical disk and coupling components are not designed for field disassembly. Specialist FANUC motor repair facilities with dedicated test rigs can perform fault diagnosis to confirm encoder failure before replacement, but the realistic service options are either replacement with a verified functional unit or exchange programs offered by specialist FANUC encoder suppliers.
