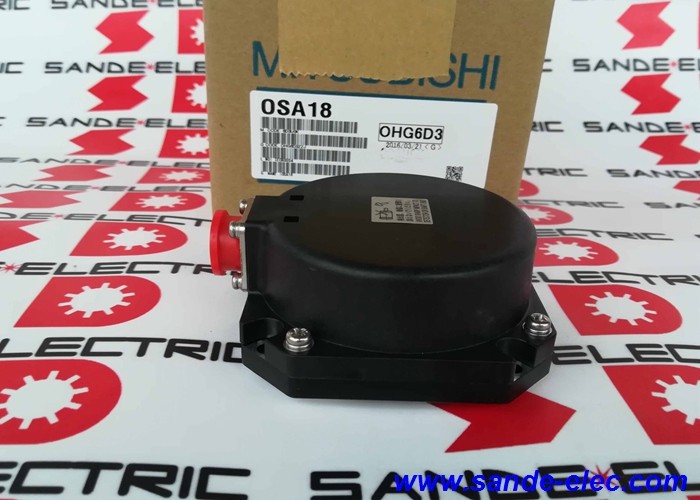

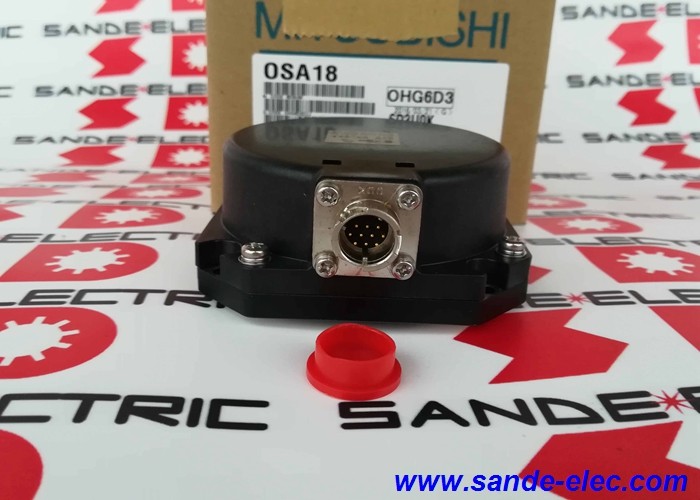

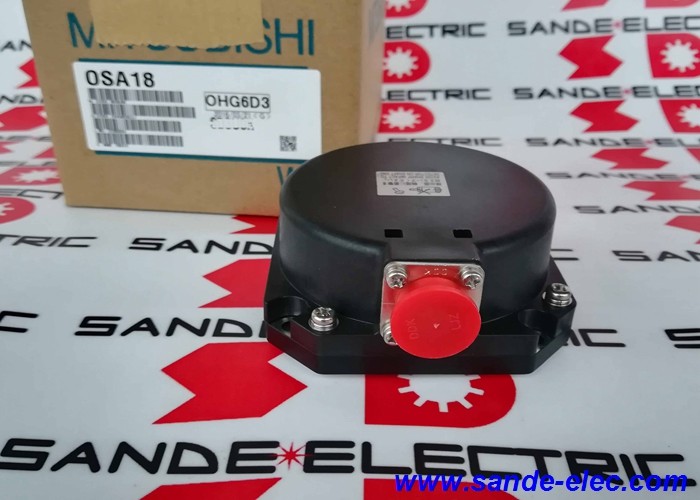

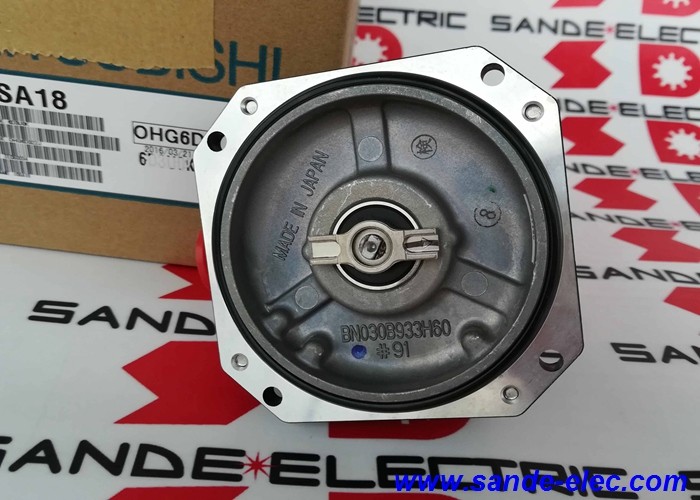

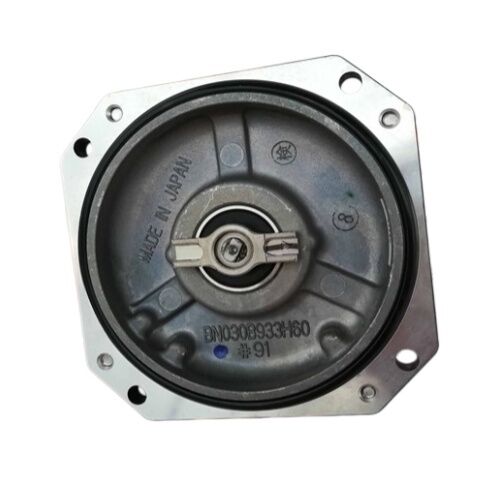

Mitsubishi OSA18 Absolute Encoder — MELSERVO Built-In Position Feedback Unit, New

When a Mitsubishi HF or HG series servo motor loses its encoder — through impact, bearing contamination, thermal stress, or accumulated operating hours — the machine stops. Not partially, not intermittently. It stops completely, because the servo amplifier has no position feedback and cannot close the control loop. The Mitsubishi OSA18 is the factory-matched internal absolute encoder designed for direct replacement in that situation: a built-in optical absolute feedback unit that restores full servo function to the motor it is matched to. New unit, correct for your motor.

What the OSA18 Is — and Isn't

The OSA18 is not a standalone external rotary encoder mounted on a machine axis. It is a built-in servo motor encoder — a compact optical absolute sensing assembly that fits inside the motor housing at the non-drive end, factory-programmed for the specific motor series it serves. When Mitsubishi builds an HF-series or HG-series servo motor, the OSA18 is integrated into the motor as its primary position and speed feedback device.

This distinction matters practically: ordering an OSA18 replacement requires knowing the motor's part number, because the encoder's internal program must correspond to the motor it will be installed in. The motor model determines which specific OSA18 variant (suffix -100, -130, etc.) is the correct match.

Technical Specifications

260,000 Pulses Per Revolution — Resolution That Closes the Loop

The OSA18's 260,000 ppr resolution is the core of what makes the Mitsubishi HF and HG series motors capable of the positioning accuracy their specifications describe. Every degree of shaft rotation is divided into more than 700 discrete feedback counts. The servo amplifier receives this high-density position data continuously, using it to compute velocity, detect position error, and issue corrective torque commands — all within the sub-millisecond control cycle the MELSERVO platform operates on.

This resolution matters most at low speeds and during fine positioning moves. At 1 rpm, 260,000 ppr means the amplifier receives more than 4,000 position updates per second. The servo can follow a commanded position profile with extremely tight error bounds — which is precisely what CNC feed axes, robotic joints, and precision indexing mechanisms require to perform at their rated accuracy.

Being an absolute encoder, the OSA18 reports a unique position value for every shaft angle. There are no incremental pulse sequences to count or lose track of through power interruptions. Position is known at all times, including immediately after power-up, without a homing or reference return sequence.

Motor-Specific Programming — Why the Suffix Number Matters

The OSA18 series uses a suffix to indicate the motor-specific firmware variant. The base designation OSA18 covers a family of programmed encoder units, each calibrated and coded for a particular Mitsubishi servo motor model. When replacing a failed encoder, the replacement must carry the correct suffix for the motor being serviced.

The motor part number on the motor's nameplate determines which OSA18 variant to order. Confirmed compatible motor examples include the HF-104S-A48 and related HF-SP series motors, as well as HG-series motors operating on the MELSERVO J3 and J4 amplifier platforms. For HG series motors (HG-MR, HG-KR, HG-SR, HG-JR, HG-RR), the OSA18 encoder family is the factory-fitted standard across the range, even on motors that Mitsubishi's catalog describes as 22-bit — the physical encoder unit in service uses the OSA18 identification.

Attempting to install an OSA18 variant with the wrong suffix into a given motor will result in encoder alarm conditions and failed commissioning. Always cross-reference the motor model number before ordering.

Where the OSA18 Encoder Is Found

The OSA18 is the standard internal encoder across a wide range of Mitsubishi's production servo motor families. Common platforms where this encoder is installed from the factory include:

MELSERVO HF Series (J3 platform) — HF-SP, HF-JP, HF-KP, and HF-MP series motors across the full power range from fractional kilowatt to several kilowatts; these motors are the dominant servo choice in Mitsubishi J3-platform CNC and motion control installations

MELSERVO HG Series (J4 platform) — HG-MR, HG-KR, HG-SR, HG-JR, HG-RR, HG-UR, and HG-AK series motors; despite J4 catalog references to 22-bit encoders, the installed encoder unit tests and is identified as the OSA18 series in Mitsubishi's own maintenance documentation

CNC Machine Tools — feed axes (X, Y, Z, and rotary) on machining centers, CNC lathes, and turning centers running MELSERVO J3 and J4 amplifier systems connected to MELDAS or MELSERVO CNC controls

Industrial Robots — joint encoders on Mitsubishi industrial robots that use HF or HG series servo motors as the joint actuators, where the OSA18 provides the closed-loop feedback for each axis

Automated Assembly and Handling — multi-axis assembly systems, pick-and-place machines, conveyor indexing drives, and material handling equipment where Mitsubishi servo motors form the motion axes

Replacing an OSA18 — What the Process Requires

Encoder replacement on a Mitsubishi servo motor is a maintenance procedure that requires care at every step. The encoder is mounted inside the motor housing at the non-drive end; access requires partial motor disassembly. Replacing only the encoder — rather than the entire motor — is the cost-effective approach when the motor's mechanical components (stator, rotor, bearings, shaft) remain serviceable.

Key steps in the replacement process include: verifying the correct OSA18 suffix against the motor nameplate, carefully removing the encoder cover and connector, replacing the encoder assembly without allowing contamination to enter the motor housing, and reconnecting the serial feedback cable. After installation, the servo amplifier will typically require a parameter check or encoder initialization sequence per the MR-J3 or MR-J4 amplifier manual before the axis can be returned to service.

The 0.60 lb weight of the encoder unit reflects its compact construction — the OSA18 fits in the confined space of the motor end cap without adding significant mass to the motor assembly.

FAQ

Q1: How do I know which OSA18 suffix variant I need for my motor?

The OSA18 is motor-specific. Check the nameplate on your servo motor — the motor model number (e.g., HF-104S-A48, HF-SP52, HG-SR52) determines which OSA18 suffix is correct. The two variants match different motor families and must not be swapped. Always provide your motor's complete part number when ordering an OSA18 replacement to ensure the correct programmed unit is supplied.

Q2: Can the OSA18 be used with both MELSERVO J3 and J4 amplifiers?

The OSA18 encoder is compatible with both MR-J3 (J3 platform) and MR-J4 (J4 platform) servo amplifiers when installed in the correct motor. Mitsubishi's J4 maintenance documentation confirms that HG-series motors — which operate on J4 amplifiers — use the OSA18 encoder identification. The amplifier's servo parameter configuration must match the encoder installed in the motor.

Q3: Does the OSA18 support absolute position retention without a battery?

The OSA18 is an absolute encoder — it provides a unique position value for every shaft angle and transmits this via serial data to the amplifier. For multi-turn absolute position retention through power-off cycles, a backup battery in the servo amplifier (MR-J3BAT or equivalent) is required. With battery backup active, the motor's position across multiple revolutions is stored through machine shutdowns, eliminating the need for a homing cycle at startup. Without battery backup, single-revolution absolute position is still known at power-on, but the multi-turn count resets.

Q4: What causes OSA18 encoder failure and how can it be identified?

Common failure causes include physical shock (dropping the motor or machine collision events), coolant or lubricant contamination entering through the shaft seal, thermal damage from sustained overload conditions, and age-related degradation of the optical scanning components. Typical alarm indicators on the servo amplifier include encoder communication errors, position feedback alarms, and abnormal encoder signal alarms — the specific alarm code depends on the MR-J3 or MR-J4 amplifier. Any of these alarms that persist after power cycling and cannot be cleared by software generally indicate encoder replacement is required.

Q5: Is the OSA18 repairable, or must it be replaced as a complete unit?

The OSA18 is a factory-programmed, sealed optical assembly. Component-level repair is not practical for end users — the encoder contains precision optical elements that require clean-room conditions and specialized test equipment to service correctly. The standard and recommended approach is complete unit replacement with a new OSA18 matched to the motor. Given the cost ratio between an encoder replacement and a complete servo motor, encoder replacement is the economically sound choice when the motor body is otherwise serviceable.
