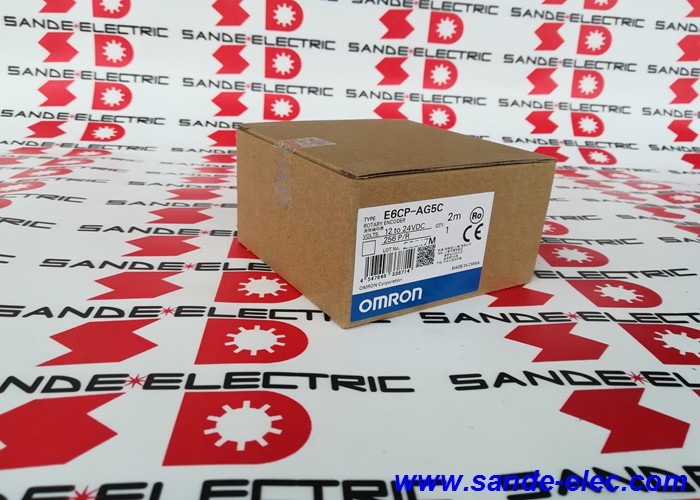

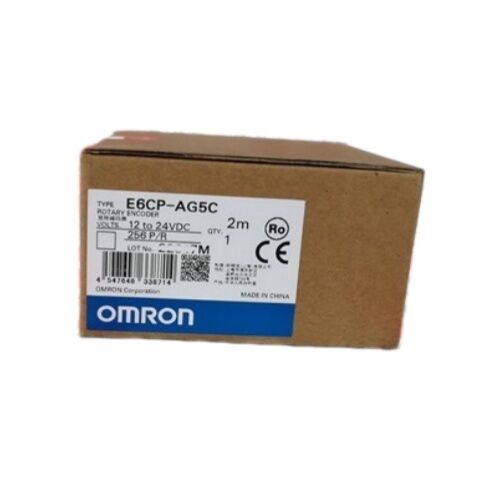

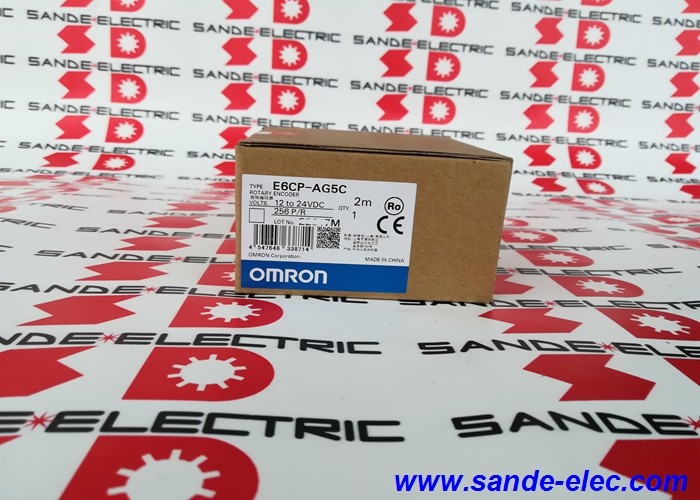

OMRON E6CP-AG5C Rotary Encoder

Absolute | 8-Bit Gray Code | 256 PPR | 50mm Housing | 12–24 VDC | H8PS Cam Positioner Compatible

Angle Control That Starts From Where You Are

Incremental encoders count pulses from a reference point. Absolute encoders simply tell you where you are. That distinction matters every time a machine powers up, recovers from an E-stop, or resumes after a planned shutdown — the E6CP-AG5C outputs a unique angular position code from the very first moment it receives power, with no homing cycle, no reference run, no waiting.

Part of OMRON's E6CP-A series, this compact absolute rotary encoder delivers 8-bit Gray code output across 256 positions per revolution — enough resolution for cam timing control, indexing sequences, and angular position monitoring across the full range of general industrial automation tasks. Its lightweight ABS housing, 50mm diameter footprint, and direct compatibility with OMRON's H8PS Cam Positioner have made it a standard reference in automation control panels and machine timing systems for years.

Technical Specifications

Gray Code Output: Precision Without the Errors

Standard binary output changes multiple bits simultaneously at certain count transitions, creating brief windows where the output could be misread. Gray code eliminates this by ensuring only one bit changes at any given step — regardless of which position the encoder is passing through.

For angle-based machine timing and cam control applications, that single-bit-change property directly reduces the risk of false position readings that could trigger incorrect machine operations. The E6CP-AG5C's 8-bit Gray output gives 256 unambiguous, sequential angular positions across one full rotation, each with a unique code that cannot be confused with its neighbors during normal operation.

Optical System: No Brushes, Fewer Errors

Older angular position sensors used brush contacts — mechanical elements that wear, generate electrical noise, and produce output variations as their contact resistance drifts with temperature. The E6CP-AG5C uses an optical sensing system that eliminates brush noise entirely and keeps output accuracy stable across its full –10°C to +55°C operating temperature range without requiring temperature compensation.

This matters in environments where the sensor is near heat sources, experiences wide daily temperature swings, or operates continuously. A brushless optical system also has no wearing contact parts in the signal path, which contributes directly to service life in high-cycle applications.

H8PS Cam Positioner: The Designed-For-This Connection

OMRON's H8PS is a dedicated cam positioner controller — a device that monitors an encoder's angular position output and triggers outputs at precisely defined angular positions, replicating the function of a mechanical cam drum in a fully programmable, easily reconfigurable form.

The E6CP-AG5C is specifically listed by OMRON as the encoder for use with the H8PS, and the -C suffix variant of this encoder includes a connector specifically designed for direct H8PS interfacing. The combination detects the operation timing of various automatic machines with high precision, according to OMRON's official product documentation — covering applications from packaging machinery cycle control to press and stamping timing to any process where multiple output events need to occur at defined angular positions within a rotation cycle.

For systems not using the H8PS, the standard E6CP-AG5C (pre-wired cable, no connector) connects to any controller capable of reading 8-bit parallel Gray code on open collector outputs.

Wire Color and Output Assignment

The E6CP-AG5C uses a color-coded pre-wired cable with the following output assignment per OMRON's official datasheet:

Important: Allow at least 1 second after power-on before reading encoder output. OMRON's documentation specifies the encoder may output incorrect pulses for the first second following power application.

Where This Encoder Gets Used

The E6CP-AG5C's combination of absolute output, compact 50mm housing, and simple parallel Gray code interface suits a broad range of angular position sensing tasks:

• Cam positioner systems — paired directly with the OMRON H8PS for programmable machine timing control
• Packaging machinery — film registration, label positioning, fill timing relative to container angle
• Indexing and rotary tables — absolute position confirmation at each index station
• Press and stamping equipment — ram position monitoring and output triggering at defined angles
• Conveyor timing systems — angular position of drive shafts for cycle synchronization
• General-purpose angle control — wherever a 256-step absolute position reference is sufficient for the application

Frequently Asked Questions

Q1: What is the difference between E6CP-AG5C and E6CP-AG5C-C?

The core encoder is identical — same 8-bit Gray code output, same electrical specifications, same 50mm housing. The -C suffix designates a connector-terminated version specifically designed for direct connection to the OMRON H8PS Cam Positioner. The standard E6CP-AG5C has flying leads (bare wire ends) suited for general wiring to any compatible controller. Choose based on whether you're connecting to an H8PS or wiring to a custom interface.

Q2: Can this encoder retain its position reading after power loss?

Yes — because it is an absolute encoder, the E6CP-AG5C outputs a unique code for every shaft angle based on its internal optical disk pattern. There is no battery, no capacitor, and no stored data to lose. Remove power, rotate the shaft to any position, restore power: the encoder immediately outputs the correct Gray code for wherever the shaft now sits, without any initialization sequence required.

Q3: Why is the maximum rotational speed only 1,000 RPM?

The 1,000 RPM limit reflects the combination of the 8-bit parallel output and the 5 kHz maximum switching frequency of the open collector outputs. At 1,000 RPM with 256 positions per revolution, the output transitions occur at approximately 4.27 kHz — approaching the switching limit. For higher-speed applications, OMRON offers other encoder families with incremental high-speed output. For the cam positioning and machine timing applications the E6CP-AG5C is designed for, rotational speeds rarely approach 1,000 RPM.

Q4: Is the E6CP-AG5C suitable for use in environments with cutting fluid or washdown?

The IP50 rating provides protection against dust ingress only — it offers no water protection. The E6CP-AG5C is not suitable for direct coolant exposure, washdown areas, or outdoor installation without additional mechanical shielding. For applications requiring water resistance, OMRON's E6C3-A series (IP65 rated) is the appropriate alternative. The E6CP-AG5C is designed for control panel installation or protected machine positions where splash and moisture are not factors.

Q5: How many output wires need to connect to the receiving controller?

The E6CP-AG5C has 8 signal output wires (one per bit, for 8-bit parallel output) plus two power wires (supply and common), giving 10 wires in total. The receiving controller or PLC needs 8 digital input channels capable of reading open collector (NPN, sinking) signals to capture the full 8-bit position word. If fewer bits are needed — for example, only 4 bits for 16-position resolution — the lower-order outputs can simply be left unconnected, and the connected bits will still provide valid Gray code output for the connected channels.
