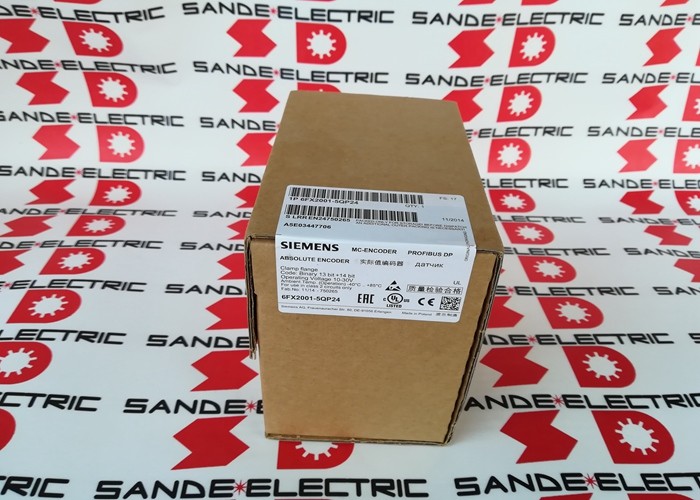

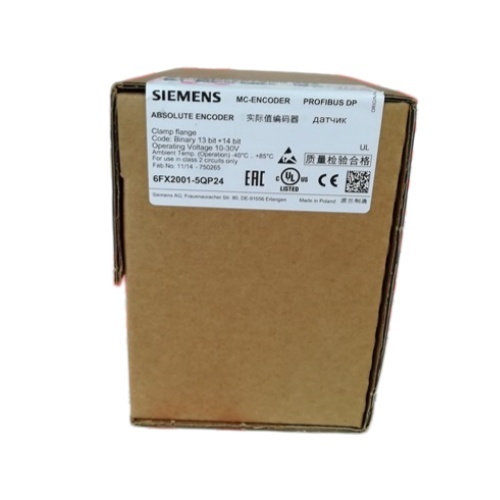

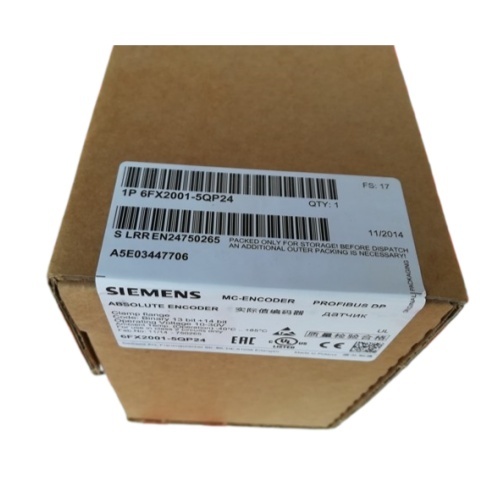

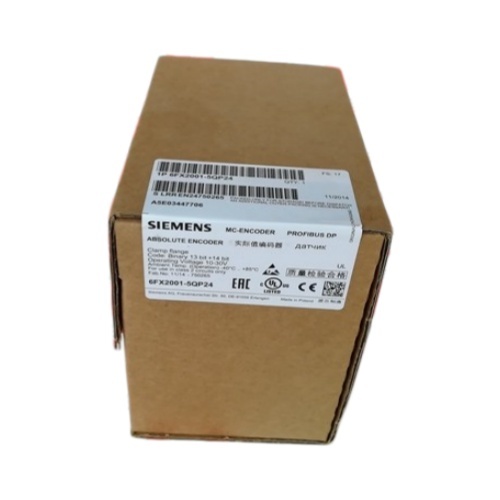

Siemens 6FX2001-5QP24 Multi-Turn Absolute Value Encoder

27-Bit | PROFIBUS DP-V2 | 10–30 VDC | 6000 RPM | Clamp Flange | Isochronous Mode | SINUMERIK / SIMOTION / SINAMICS / SIMATIC

Position Data That Survives a Power Cut

Most rotary encoders answer the same question: where is the shaft right now? Absolute encoders answer a harder one: where was the shaft when the power went off, and where is it now after everything came back? The Siemens 6FX2001-5QP24 is a multi-turn absolute value encoder built specifically for that second question — delivering a genuine 27-bit position word across PROFIBUS DP-V2 the instant the system powers up, with no homing cycle, no reference run, and no wasted machine time.

Designed as a direct-mount, add-on rotary encoder for the SINUMERIK, SIMOTION, SINAMICS, and SIMATIC product families, this encoder is a Siemens system-tested component — not a generic PROFIBUS encoder that happens to work. That distinction matters in machine tool, printing, and packaging applications where drive commissioning time and system certification overhead are real costs.

Technical Specifications

The 27-Bit Architecture: What It Actually Means on the Floor

The 27-bit figure represents the total position word this encoder transmits — not simply 27 individual tracks on a code disk. The encoder's optical scanning reads 13 bits within a single revolution (equivalent to 8,192 discrete positions per turn), then adds a 14-bit multi-turn counter that tracks the number of complete revolutions independently. Multiply the two together and the encoder can report absolute shaft position across 16,384 full revolutions without ambiguity.

For a ball screw axis with a 10mm pitch, 16,384 revolutions represents 163 metres of linear travel — far beyond any practical machine axis. The multi-turn range exists so the axis position is known absolutely regardless of where the machine was parked when power was removed. On restart, the CNC reads the current position directly from the encoder's PROFIBUS data word. No slow reference travel, no operator intervention, no wasted spindle warm-up time waiting for homing cycles to complete.

The parameterizable resolution is equally practical. The full 8,192-position resolution suits high-precision contouring applications, but the same encoder can be configured for coarser resolution in applications where bus bandwidth or cycle time is constrained — any value from 1 to 8,192 per revolution is valid and can be set via PROFIBUS parameter channel without hardware modification.

PROFIBUS DP-V2: More Than Just a Data Bus

Standard PROFIBUS DP (version 1) transfers process data cyclically — the encoder sends its position word, the controller reads it, next cycle. PROFIBUS DP-V2 adds two capabilities that are significant for motion control applications.

The first is isochronous mode. In isochronous operation, the encoder's measurement cycle and the PROFIBUS data transfer are synchronized to the controller's interpolation cycle. Position data arrives at the control unit at a precise, repeatable interval — the jitter in position measurement timing that would otherwise add noise to velocity calculations is eliminated. For high-speed servo axes with tight speed loop requirements, the difference between asynchronous and isochronous position feedback is measurable in positioning precision.

The second is the acyclic parameter channel. This allows online parameterization — changing the encoder's resolution, limit switch positions, or other configuration parameters while the system is running, without removing the encoder from the bus or interrupting cyclic data transfer. For multi-axis systems where individual axes may need resolution changes during process development, this eliminates a maintenance intervention that would otherwise require machine downtime.

The 6FX2001-5QP24 supports both capabilities and achieves 12 Mbit/s maximum bus rate with a per-encoder bus cycle time of 20 µs — fast enough for demanding high-cycle-rate applications.

Clamp Flange Mounting: Mechanical Installation Notes

The clamp flange mounting arrangement on the 6FX2001-5QP24 uses a clamping ring to secure the encoder body to the machine structure, with the shaft inserted directly into a coupling or driven directly by the machine shaft. The hood and radial PG cable entry protect the PROFIBUS cable connection from contaminants and provide strain relief, with the PG entry oriented radially to suit installations where axial cable exit would conflict with adjacent components.

Shaft loading limits differ with speed. Below 6,000 RPM, the shaft tolerates up to 40 N axial load and 110 N cantilever load — sufficient for rigid coupling in most applications. At speeds above 6,000 RPM (this encoder is rated to 6,000 RPM maximum, so the higher-speed load limits apply at the ceiling), the limits reduce to 10 N axial and 20 N cantilever, reflecting the increased bearing stress from combined radial and axial loading at speed. For coupling design, a bellows or disc coupling that compensates for shaft misalignment without transmitting radial forces to the encoder shaft is standard practice.

The rotor moment of inertia of 1.9 × 10⁻⁶ kg·m² is low enough that the encoder adds negligible reflected inertia to the driven shaft in most direct-mount configurations.

System Compatibility: Four Siemens Platforms, One Encoder

The 6FX2001-5QP24 carries the Siemens system-tested designation for four platforms simultaneously. This is not a marketing statement — it reflects that the encoder's PROFIBUS DP-V2 device description files, PNO certification, and parameter structure have been validated against each platform's drive and motion control software.

SINUMERIK CNC — Used as a direct measuring system on linear or rotary machine axes, or as a motor encoder in configurations where the motor encoder and position encoder are separate devices. Compatible with SINUMERIK 840D sl and 828D systems via S120 drive hardware.

SIMOTION — Suited for coordinated multi-axis applications in packaging, printing, converting, and assembly machines where precise position synchronization across axes is required. Isochronous PROFIBUS mode aligns position data capture with SIMOTION's motion control cycle.

SINAMICS — Compatible as an external encoder in SINAMICS S120 and S150 drive configurations, providing position feedback from the load side of a gearbox or machine axis rather than from the motor shaft — critical for eliminating gearbox backlash from the position control loop.

SIMATIC — Used in position-monitoring, cam controller, and process automation applications where absolute shaft position is needed as process data within a PLC-based system architecture.

Frequently Asked Questions

Q1: What is the difference between this 6FX2001-5QP24 multi-turn encoder and a single-turn absolute encoder in the same 6FX2001 series?

Single-turn absolute encoders in the 6FX2001 series deliver 13-bit resolution (8,192 positions) within one revolution — the position is absolute within that revolution but the encoder cannot determine how many full turns have occurred. On power-up after shaft movement with power off, a single-turn encoder can only report the angular position within the current revolution, not the total position. The 6FX2001-5QP24 multi-turn encoder adds the 14-bit turn counter that tracks up to 16,384 full revolutions, making the full 27-bit position word valid on every power-up regardless of shaft history. For any axis that can physically move more than one revolution with power removed — which includes virtually all linear axes on machine tools — the multi-turn version is the appropriate choice.

Q2: Does this encoder require an external PROFIBUS termination resistor at its node?

Yes, PROFIBUS RS 485 requires proper bus termination at both physical ends of the cable segment. If the 6FX2001-5QP24 is the last device on the PROFIBUS segment, the termination resistor network (typically built into the connector) must be enabled. If it is a mid-bus device, termination should be disabled. Incorrect termination causes signal reflections that increase error rates, particularly at 12 Mbit/s. The radial PG cable entry accommodates standard PROFIBUS connectors with integrated switchable termination, making this straightforward in most installations.

Q3: Can the encoder's resolution be changed after installation without removing it from the machine?

Yes — PROFIBUS DP-V2's acyclic parameter channel supports online parameterization of the 6FX2001-5QP24 while the encoder remains mounted and connected to the bus. Resolution per revolution (1–8,192), total resolution (1–16,384 turns), limit switch positions, and speed signal configuration are all parameterizable online. This is particularly useful during machine commissioning when axis resolution may be adjusted to match control requirements without a maintenance dismount. Parameters are written via the PROFIBUS master's acyclic services (DS Read/Write) using the encoder's PNO Encoder Profile V4.1 parameter definitions.

Q4: What coupling type is recommended for mounting this encoder to a machine shaft?

Siemens and encoder industry practice recommend a flexible coupling — bellows or multi-disc type — that compensates for shaft misalignment (both angular and parallel offset) without transmitting the resulting radial forces to the encoder shaft. The encoder shaft is rated for 110 N cantilever load at speeds up to 6,000 RPM, but chronic misalignment-induced radial loading accelerates bearing wear and shortens encoder service life. A correctly selected flexible coupling absorbs the misalignment rather than passing it through. Rigid couplings are only appropriate where shaft coaxiality can be guaranteed to close tolerances throughout the thermal range of the machine.

Q5: Is the 6FX2001-5QP24 a direct replacement for older SINUMERIK absolute encoders previously used with SIMODRIVE 611 systems?

The 6FX2001-5QP24 uses PROFIBUS DP-V2 as its interface. Earlier SINUMERIK absolute encoders used with SIMODRIVE 611 often employed different interface standards — including the Siemens proprietary encoder interface or SSI — rather than PROFIBUS. A direct plug-in replacement is not possible without verifying that the target controller supports PROFIBUS DP-V2 encoder input and that the drive hardware is configured for external PROFIBUS encoder feedback. In a SIMODRIVE 611 to SINAMICS S120 upgrade context, this encoder is fully compatible with S120 hardware using the appropriate S120 control unit configuration. Confirming interface compatibility at the controller level is the critical first step before any encoder substitution.
