IS1000-01 SMC Pressure Switch IS100001 New In Box

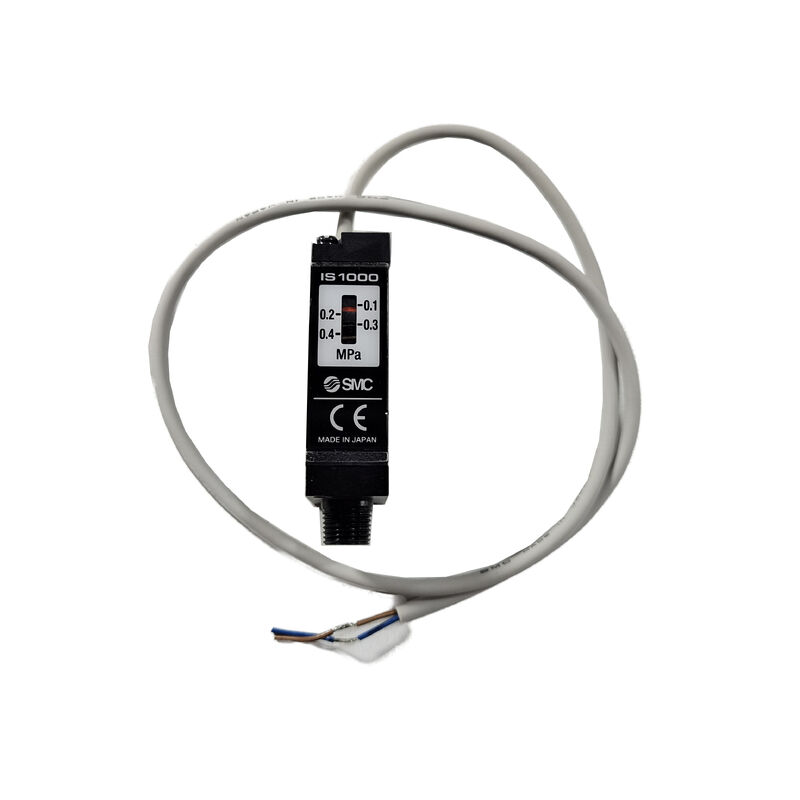

SMC IS1000-01 Air and Inert Gas Pressure Switch

Pressure Monitoring

The SMC IS1000-01 pressure switch monitors air and inert gas pressure in pneumatic systems. Its OFF-point setting range is 0.1–0.4 MPa. The unit weighs 74 g and uses an R 1/8 port.

Technical Specifications

Switching and Installation

Repeatability is ±0.05 MPa. Hysteresis is 0.08 MPa or less. Allow for both values when setting the switching threshold. The standard lead wire measures 0.5 m. Keep ambient and fluid temperatures within −5 to 60°C and prevent freezing.

Application Fields

Application areas include factory automation, pneumatic assembly equipment, packaging machinery, and compressed-air monitoring. The switch also supports inert-gas pressure monitoring within its specified operating limits.

FAQ

Q1: Which fluids can the SMC IS1000-01 monitor?
A: Air and inert gas.

Q2: What is the adjustable pressure range?
A: The OFF-point setting range is 0.1–0.4 MPa.

Q3: What is the maximum operating pressure?
A: 0.7 MPa. The 1.0 MPa value is proof pressure.

Q4: What connection and wiring does it use?
A: An R 1/8 port and a standard 0.5 m grommet lead wire.
