TRD-N200-RZ JTEKT Encoder TRDN200RZ New In Box

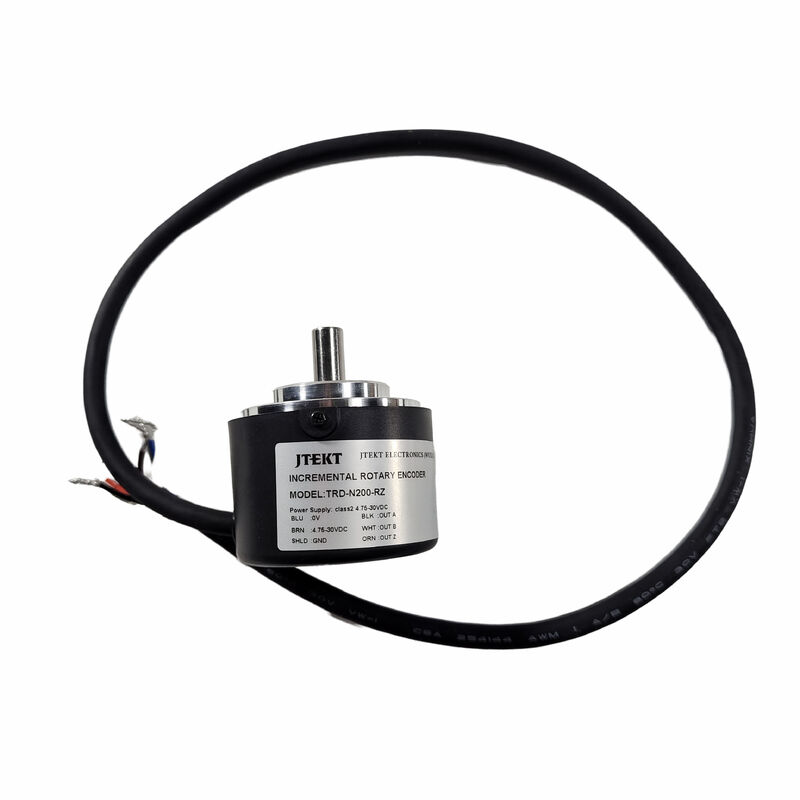

JTEKT TRD-N200-RZ Incremental Rotary Encoder

Product Overview

The JTEKT TRD-N200-RZ is an incremental rotary encoder designed for industrial position and speed feedback. It converts shaft rotation into electrical pulse signals, allowing control systems to monitor rotational movement and calculate speed.

Its compact housing supports installation in machinery with limited mounting space. The encoder is suitable for motion monitoring in automated equipment and industrial drive systems.

Key Features

• Incremental rotary encoder for position and speed feedback

• 200 pulses per revolution

• Two-phase output with a direct-action origin signal

• Totem-pole output configuration

• Wide DC supply voltage range

• Compact design for industrial machinery

• Solid shaft for mechanical coupling

Technical Specifications

Industrial Applications

The TRD-N200-RZ can be used in industrial equipment that requires rotational feedback, including:

• Automated production machinery

• Conveyor and material handling systems

• Packaging equipment

• Motor speed monitoring

• Positioning and indexing mechanisms

• Industrial motion control systems

Frequently Asked Questions

Q1: What is the JTEKT TRD-N200-RZ used for?

It provides incremental rotary feedback for position and speed monitoring.

Q2: What is its resolution?

The encoder provides 200 pulses per revolution.

Q3: What supply voltage does it require?

Its specified supply range is 4.75–30 V DC.

Q4: What type of output does it use?

It uses two-phase signals with an origin output and a totem-pole interface.
