JTEKT TRD-N360-RZ Incremental Rotary Encoder
Product Overview

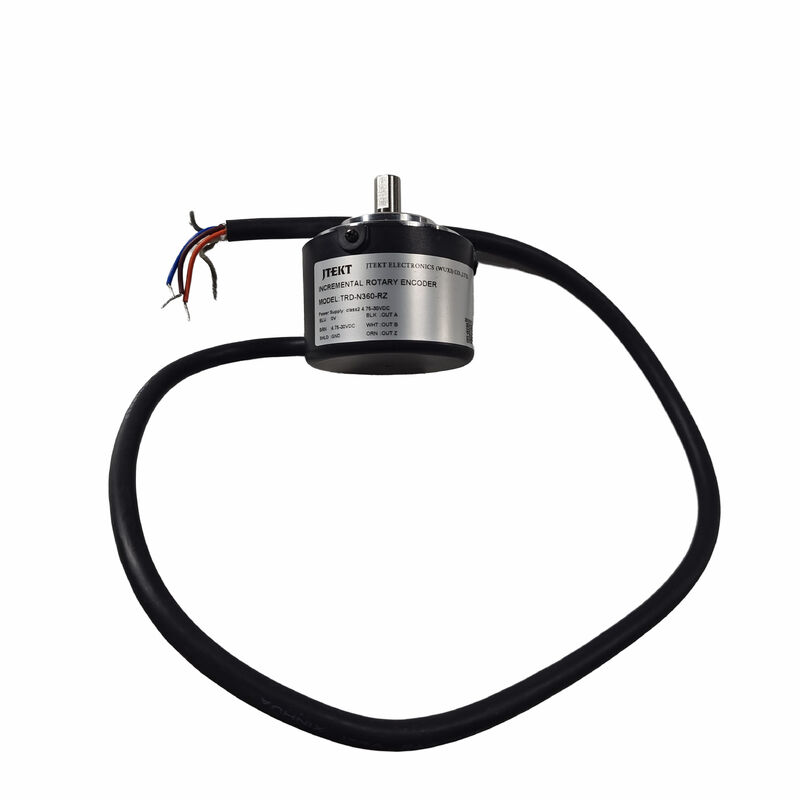

The JTEKT TRD-N360-RZ is an incremental rotary encoder designed for rotational position and speed feedback in industrial machinery. It converts shaft rotation into electrical pulse signals for use by PLCs, counters, and motion controllers.
The encoder features a compact housing and a solid shaft. Its incremental output supports accurate motion monitoring in automated equipment.
Key Features
-
360 pulses per revolution
-
Two-phase pulse output with an origin signal
-
Totem-pole output configuration
-
Wide DC supply voltage range
-
Compact 50 mm housing
-
8 mm solid shaft
-
Designed for industrial position and speed feedback
Technical Specifications
| Parameter |
Specification |
| Brand |
JTEKT |
| Model |
TRD-N360-RZ |
| Product Type |
Incremental Rotary Encoder |
| Resolution |
360 P/R |
| Output Signal |
Two-phase + Origin |
| Output Type |
Totem-pole |
| Supply Voltage |
4.75–30 V DC |
| Body Diameter |
Approx. 50 mm |
| Body Depth |
Approx. 35–36.5 mm |
| Shaft Diameter |
8 mm |
| Cable Length |
0.5 m |
| Protection Structure |
Dustproof |
Industrial Applications
The TRD-N360-RZ is suitable for machinery that requires rotational feedback and speed monitoring. Common applications include:
-
Automated production lines
-
Conveyor systems
-
Packaging machinery
-
Motor speed measurement
-
Material handling equipment
-
Industrial positioning mechanisms
-
Machine tools and automation equipment
Frequently Asked Questions
Q1: What is the JTEKT TRD-N360-RZ used for?
It provides rotational position and speed feedback for industrial control systems.
Q2: What is its resolution?
It provides 360 pulses per revolution.
Q3: What supply voltage does it support?
It operates from 4.75 to 30 V DC.
Q4: Does it provide an origin signal?
Yes. It provides two-phase pulse output with an origin signal.
