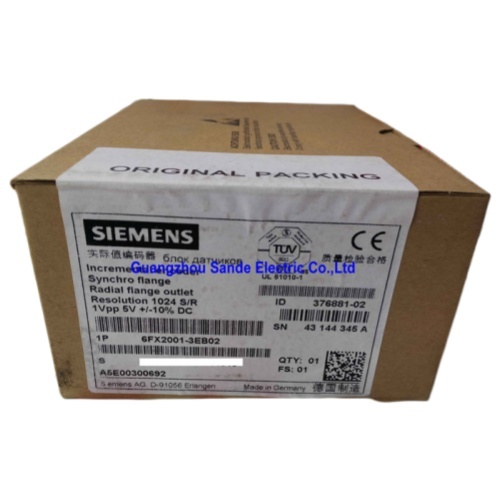

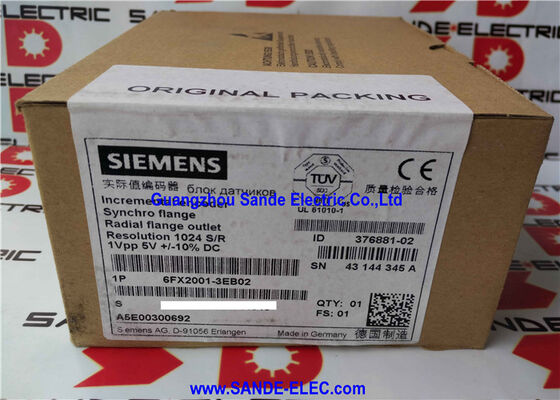

Siemens 6FX2001-3EB02 Incremental Encoder — Precision Sin/Cos Feedback for Industrial Motion Control

When your CNC machine or servo drive demands feedback you can actually trust, the Siemens 6FX2001-3EB02 delivers. This optoelectronic rotary encoder combines a clean 1 Vpp sinusoidal output with 1,024 pulses per revolution, making it a go-to choice for engineers running SINUMERIK, SINAMICS, SIMOTION, or SIMATIC platforms.

What Makes This Encoder Stand Out

At its core, the 6FX2001-3EB02 uses optoelectronic scanning of an indexing disk — an LED illuminates the disk's line pattern, and photoelectronic elements pick up the resulting light-dark transitions. The result: two sinusoidal track signals (A and B) offset by 90°, plus a reference pulse (R), delivered at a signal level of 1 Vpp sin/cos to downstream electronics.

That analog sinusoidal interface is the real differentiator. Unlike standard TTL encoders that output digital square waves, the 1 Vpp signal carries interpolatable waveform data — meaning the control system can mathematically divide each period into hundreds of sub-counts, pushing effective resolution well beyond the base 1,024 lines.

Technical Specifications at a Glance

Built for Siemens Motion Control Ecosystems

This encoder isn't just a generic sensor — it's a system-tested, certified component optimized for the full Siemens automation family:

• SINUMERIK CNC systems (milling, turning, grinding)
• SINAMICS servo and vector drives
• SIMOTION motion controllers
• SIMATIC programmable logic systems

Pairing it with Siemens SIMODRIVE or SINAMICS drives that natively process the 1 Vpp differential signal means zero additional conditioning hardware — a clean, validated signal path from shaft to controller.

Where This Encoder Gets Put to Work

Wherever precise angular position or speed feedback is non-negotiable, the 6FX2001-3EB02 fits right in:

• Multi-axis CNC machining centers — real-time spindle and linear axis tracking
• Automated assembly lines — keeping conveyor and robotic motion in sync
• Printing and packaging machinery — tight registration across high-speed web handling
• Metal forming presses — reliable stroke position feedback under continuous vibration

The synchro flange design makes shaft mounting clean and repeatable, while the radial connector orientation gives cable-routing flexibility in tight enclosures.

Ordering & Compatibility Note

The 6FX2001-3EB02 belongs to Siemens' broader 6FX2001 incremental encoder family, which spans multiple output interfaces — 1 Vpp sin/cos, RS 422/TTL, and HTL — across various resolutions. If your drive controller requires a TTL/RS 422 digital output rather than the analog sin/cos format, the 6FX2001-2EB02 variant offers the same mechanical form factor with a different electrical interface.

FAQ

Q1: What sets the 1 Vpp sin/cos output apart from a standard TTL encoder?

The sinusoidal signal allows the drive controller to interpolate within each pulse cycle, delivering far finer effective resolution than the raw 1,024 lines. TTL encoders output discrete pulses with no sub-period data — simpler to wire, but with no interpolation headroom.

Q2: Which Siemens platforms is this encoder certified for?

It carries system certification for SINUMERIK CNC controls, SINAMICS drives, SIMOTION motion controllers, and SIMATIC systems. It also sees wide use with legacy SIMODRIVE 611 drives. Always confirm your drive's feedback port accepts a 1 Vpp analog sin/cos input before installation.

Q3: Will this encoder work with third-party servo drives?

Yes — any drive or controller equipped with a differential 1 Vpp sin/cos encoder input can work with the 6FX2001-3EB02. This interface is widely adopted across European and Asian industrial servo platforms. Check your specific controller's encoder input specifications to confirm compatibility.

Q4: How far can the encoder cable run from the encoder to the drive?

Siemens technical documentation specifies a maximum cable length of 150 meters for the 1 Vpp sin/cos interface. For best signal integrity on longer runs, use shielded twisted-pair encoder cable with proper grounding at both ends.

Q5: What are the mechanical mounting requirements?

The 6FX2001-3EB02 uses a synchronous (synchro) flange for direct shaft or motor stub mounting, accepting a 6 mm diameter shaft. The radial flange connector keeps cable exit compact — useful when installation space is limited.

Part Number: 6FX2001-3EB02 | Manufacturer: Siemens AG | Series: SIMODRIVE / Motion Control Encoders | Interface: Sin/Cos 1 Vpp | Resolution: 1,024 P/R
