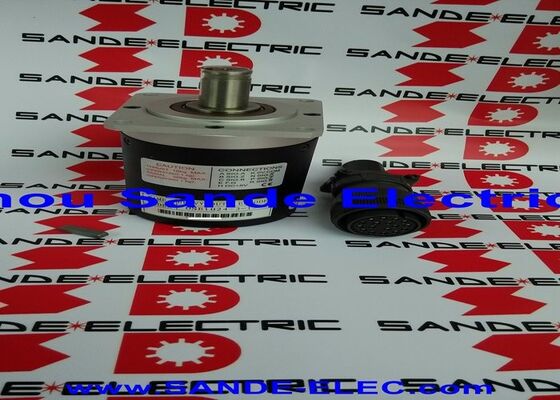

Mitsubishi Electric OSE1024-3-15-8 Optical Shaft Encoder (Synchronous Feed Encoder)

1024 Pulses/Rev | Incremental A/B/Z Phase | DC 5V | Mitsubishi CNC E70 / M70V / M700 Series | ENC Connector Interface | FCUA-R054 Cable | Made in Japan

Not a Spindle Sensor — A Synchronous Feed Encoder

There is an important distinction in how machine tools use encoder feedback, and the OSE1024-3-15-8 sits squarely on the less-discussed side of it. This is not a servo motor encoder measuring rotor position inside a drive loop. It is a synchronous feed encoder — a standalone shaft-mounted incremental optical encoder that connects directly to the CNC control unit's ENC port, delivering a clean A/B/Z phase pulse train that the CNC uses for hand wheel-equivalent synchronous feeding, position reference, or manual pulse generator backup operation.

Mitsubishi Electric's own CNC connection manuals for the 700 Series, M70V Series, and E70 Series explicitly list the OSE1024-3-15-68 as the synchronous feed encoder that connects via R054 cable to the control unit's ENC connector — a dedicated input that accepts either one channel of synchronous feed encoder or two channels of 5V manual pulse generator.

The "-8" suffix identifies a specific variant within the OSE1024-3-15 physical family, distinguishing connector orientation or cable exit direction. In the aftermarket the OSE1024-3-15 and OSE1024-3-15-8 circulate together and are treated as functionally equivalent by Mitsubishi CNC specialists.

Technical Specifications

The ENC Port and How It Works in the MELDAS Architecture

In the Mitsubishi CNC E70 Series connection documentation, the ENC connector on the control unit is defined as supporting either one channel of synchronous feed encoder or two channels of 5V manual pulse generator input. This shared connector architecture reflects the functional relationship between the two devices: both provide incremental position data to the CNC, just from different physical sources.

The E70 Series Connection Manual specifies the input characteristics for the synchronous feed encoder port as three-phase input — A phase, B phase with a 90-degree phase difference, and Z index pulse — matching exactly the output configuration of the OSE1024-3-15-68.

The CNC control unit reads the encoder's A and B phase signals in quadrature, extracting both displacement magnitude and direction from the phase relationship. The Z pulse serves as the once-per-revolution index mark, providing a reference datum for position counting. This three-signal architecture is identical in principle to standard incremental feedback, but the data flows into the CNC's interpolation engine rather than into a servo amplifier's velocity loop — the CNC uses it at the program level, not the drive level.

What "Synchronous Feed" Actually Means on the Machine

In Mitsubishi CNC terminology, synchronous feed refers to a machining mode where the feed axis (typically Z) moves in direct ratio to the rotation of an external shaft — for example, in thread cutting, where each degree of spindle or workpiece rotation must produce an exact proportional Z-axis advance. The OSE1024-3-15-8 provides the rotation count that drives this synchronization.

Machine tool builders integrate this encoder in several configurations:

External shaft synchronization — Where the spindle or a driven component's rotation is not tracked by the servo system but needs to be sensed for synchronous operation. The OSE encoder mounted on the shaft delivers that rotation data directly to the CNC control.

Hand-crank or manual wheel backup — In configurations where a physical handwheel interface must connect to the ENC port without a full manual pulse generator unit, the OSE encoder can serve as the pulse source, with the CNC treating the signal in a manner equivalent to MPG input.

Reference position encoder — As a separate position-sensing device on a machine axis or rotating fixture where the driven component is not a servo-controlled axis but the CNC needs position awareness for program logic or synchronization.

Multiple Mitsubishi CNC parts specialists confirm the OSE1024-3-15-68-8 categorically as a "synchronous feed encoder" — a distinct product class from the servo motor OSE encoders and spindle sensors in the Mitsubishi CNC ecosystem.

The FCUA-R054 Cable: Up to 30 Metres

The E70 Series Connection Manual specifies the FCUA-R050 and FCUA-R054 cables for connecting the synchronous feed encoder to the CNC control unit, with a maximum cable length of 30 metres. The two cable variants differ in connector orientation at the encoder end — right-angle (FCUA-R054) or straight (FCUA-R050) — allowing installation flexibility based on the encoder's mounting geometry and the available routing space.

The 30-metre maximum cable length is consistent with the 5V differential signal levels used on this interface. For installations where the encoder must be mounted at greater distances from the CNC cabinet, signal integrity at this cable length requires attention to proper shielding and avoiding routing alongside high-current power cables.

Both cable types route to the same ENC connector on the CNC control unit, which accepts the encoder's A, B, and Z differential signal pairs along with the 5V supply from the control unit — no external power supply is needed for the encoder itself.

OSE1024-3-15-8 Within the OSE Family

The OSE1024-3-15 designation encodes three parameters: the pulse count (1024), a body size identifier (3), and a bore dimension (15 — referencing the shaft hole diameter class in the encoder's physical specifications). The "-8" suffix and the related "-68" suffix distinguish variants with different connector configurations or cable exit orientations.

In Mitsubishi CNC documentation, the base designation most frequently cited is OSE-1024-3-15-68, with the "-8" variant appearing interchangeably in aftermarket parts listings. Parts specialists who supply Mitsubishi CNC components stock both variants and cross-reference them as covering the same synchronous feed encoder function for the E70/M70V/M700 series control platforms.

The encoder should not be confused with Mitsubishi's servo motor encoder product OSA/OSE series (OSA104, OSA105, OSE104, OSE105), which are high-resolution serial interface absolute encoders built into servo motors and operated by the MDS servo amplifier system. The synchronous feed encoder OSE1024-3-15-8 uses a simple incremental A/B/Z interface at 5V, connecting to the CNC unit itself, not to a drive unit.

Frequently Asked Questions

Q1: What is the functional difference between the OSE1024-3-15-8 and a standard manual pulse generator on the Mitsubishi CNC?

Both devices connect to the same ENC port on the CNC control unit and produce the 5V incremental pulse signals the CNC uses for synchronized motion. Mitsubishi's CNC E70 Series connection documentation confirms that the ENC connector accepts either a synchronous feed encoder (1 channel) or a 5V manual pulse generator (2 channels). The functional difference lies in form and application: a manual pulse generator is a hand-operated rotary control that the operator turns to move axes incrementally, while the synchronous feed encoder is a machine-mounted device that senses the rotation of a mechanical shaft — converting that physical rotation into CNC-readable pulse data for synchronization purposes without operator input.

Q2: Which Mitsubishi CNC control series is the OSE1024-3-15-8 compatible with?

Mitsubishi's official connection manuals for the 700 Series, M70V Series, and E70 Series all document the OSE1024-3-15-68 as the specified synchronous feed encoder for the ENC connector on those control units. The E70, M70V, M700, M700V, and M700VS control platforms are all within the documented compatibility range. For older MELDAS series controls (M3, M32, M50, M64), the encoder was also used in similar synchronous feed functions, though the specific connector and cable designations may differ. Always verify against the machine tool builder's connection manual for the specific control generation installed.

Q3: What cable is required to connect the OSE1024-3-15-8 to the Mitsubishi CNC control unit?

The specified cables are the FCUA-R054 (right-angle connector at the encoder end) and FCUA-R050 (straight connector), with a maximum permitted cable length of 30 metres between the encoder and the CNC control unit's ENC port. The cable carries both the differential A, B, Z signal pairs and the 5V supply from the control unit to the encoder. Using non-specified cables or exceeding the 30-metre maximum may compromise signal integrity and produce erratic encoder counts or communication faults at the CNC.

Q4: Can the OSE1024-3-15-8 serve as a direct replacement for a manual pulse generator on an E70 or M70V control?

In terms of electrical interface compatibility, yes — both the synchronous feed encoder and the manual pulse generator connect to the same ENC port and produce compatible 5V incremental A/B/Z signals. However, the two devices serve different operational purposes. A manual pulse generator is intended for operator-controlled axis movement via hand rotation. The OSE1024-3-15-8 is intended for machine-mounted shaft monitoring. Substituting one for the other requires verifying that the CNC's ENC port parameter configuration matches the device being used, and that the machine's intended function (operator hand-wheel operation vs. shaft synchronization) is preserved. Consult the machine tool builder's documentation before making such a substitution.

Q5: How can a fault in this encoder be distinguished from a problem with the ENC cable or CNC control unit?

A systematic approach is the most reliable. First, inspect the FCUA-R054/R050 cable visually along its full length for any damage, and check both connectors — at the encoder and at the CNC ENC port — for bent pins, moisture, or contamination, which are common causes of intermittent signal faults. Second, with the encoder mounted and connected, manually rotate the shaft and observe whether A, B, and Z signals are present on the CNC's encoder monitor screen; if the CNC shows no signal at all, the cable is the more likely fault than the encoder. Third, if signal is present but counts are erratic or the Z pulse is missing or irregular, the encoder's optical elements may be contaminated or its code disk damaged. Encoder faults of this type typically require replacement of the encoder assembly, as the internal optical elements are not field-serviceable.
