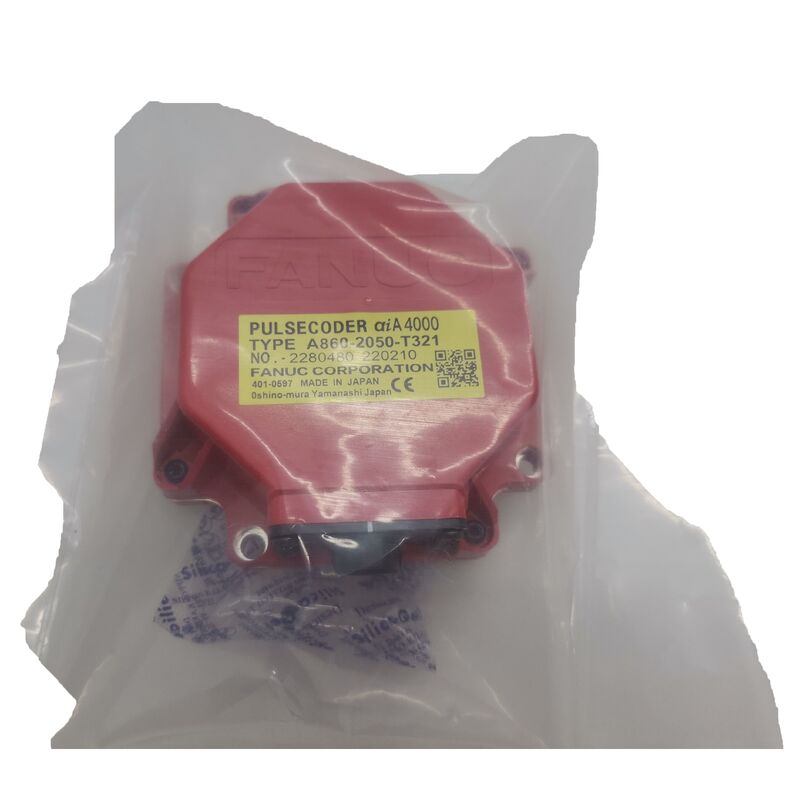

FANUC A860-2050-T321 Pulse Coder — aiA4000 Absolute Encoder for Alpha i Series AC Servo Motors

Every positioning command a CNC machine executes starts with the control knowing exactly where the motor shaft is.

The FANUC A860-2050-T321 is the absolute pulse coder responsible for delivering that information on FANUC's Alpha i series servo motors — a high-resolution, IP67-rated absolute encoder built for the medium-to-large frame Alpha i motor family that has powered precision machining centers, turning centers, and industrial robots across two decades of manufacturing.

Absolute Feedback — No Homing Required

The "absolute" designation is what separates this encoder from incremental alternatives, and it matters in production environments.

Every angular position of the motor shaft maps to a unique code output from the A860-2050-T321. When power is restored after a machine shutdown — planned or otherwise — the FANUC servo amplifier reads the encoder and knows the axis position immediately.

No axis motion. No reference return cycle. No waiting.

For automated cells and multi-axis machining centers where homing sequences can add minutes to every restart, that translates directly into productive uptime.

It also matters after unexpected power interruptions: the machine knows where it stopped, making controlled resumption of interrupted operations more straightforward than it would be with an incremental feedback system.

Technical Specifications

Understanding the aiA4000 Designation

The aiA4000 identifies both the encoder generation and the feedback protocol. The "ai" prefix confirms this is the Alpha i series — FANUC's second-generation AC servo motor platform that succeeded the original Alpha series and introduced improved resolution, FSSB (FANUC Serial Servo Bus) communication, and enhanced environmental sealing across the range.

The A4000 component of the designation refers to the encoder's position within FANUC's aiA resolution family. This 20-bit absolute encoder provides the servo amplifier with a dense stream of position data at every shaft angle, enabling the tight control loops that modern high-speed contouring and precision positioning demand.

IP67 Protection — Built for the Machine Tool Environment

The sealed IP67 housing is not an optional extra — it's a baseline requirement for an encoder that lives inside a servo motor on a production machine tool. IP67 means complete dust exclusion and the ability to withstand water immersion up to one metre depth. In practical machining terms, that covers:

• Coolant spray from high-pressure through-spindle and flood cooling systems
• Cutting fluid mist that permeates the machine interior during prolonged cuts
• Wash-down cleaning between jobs or at shift end
• Condensation from temperature cycling in climate-controlled shops

Without adequate sealing, optical encoder elements degrade over time in these conditions — leading to intermittent position errors, FANUC servo alarms, and eventual encoder failure. The IP67 construction extends service life where lesser-rated encoders would fail prematurely.

Compatible Alpha i Motor Range

The A860-2050-T321 is the factory-fitted encoder for the FANUC Alpha i -B series servo motors — the medium and larger frame models in the Alpha i family. According to FANUC's motor documentation and specialist encoder suppliers, this covers a wide span of motor sizes from the compact αiS4/3000-B through the high-torque αi50 variants, including:

αiS4, αi8, αi12, αi22, αi30, αi40, αi50 — all in -B series configuration

The -B designation in the motor part number indicates these motors use the aiA4000 IP67-rated encoder rather than the earlier non-IP67 encoder variants. Always verify the motor suffix before ordering to confirm this is the correct pulse coder for your specific motor model.

Where This Encoder Is Working Today

FANUC Alpha i servo motors with the A860-2050-T321 pulse coder are installed across a very broad range of CNC equipment from the mid-2000s through the present:

CNC Machining Centers — primary X, Y, Z, and B/C axis drives on horizontal and vertical machining centers from major builders including Mazak, Makino, Okuma, DMG Mori, and Doosan using FANUC 16i, 18i, 30i, and 31i controls

CNC Turning and Mill-Turn Centers — axis servo drives and sub-spindle systems on multi-axis lathes and mill-turn platforms

FANUC Industrial Robots — joint drive axes on M and R series robots where the larger Alpha i motor frames are used in high-payload wrist and elbow joints

Dedicated Production Lines — servo-driven transfer systems, pallet changers, and automation cells where FANUC Alpha i motors provide the actuated axis drives

A Note on Repairability

This is worth addressing directly because the encoder repair market generates significant confusion. FANUC's aiA4000 pulse coders are manufactured as sealed assemblies, and the internal optical disk and coupling are not field-serviceable in the conventional sense. While some suppliers claim repair capability, specialist encoder services with FANUC CNC test rigs consistently note that genuine repair of these units is uncommon — fault diagnosis and replacement are the realistic service options.

For maintenance teams dealing with encoder failures, the practical options are replacement with a verified functional unit (new or tested used), or engaging a specialist FANUC motor repair facility that can test the encoder under realistic servo drive conditions to confirm failure before committing to replacement.

FAQ

Q1: Which FANUC servo motors use the A860-2050-T321 pulse coder?

This encoder is fitted to FANUC Alpha i -B series AC servo motors, covering models from αiS4/3000-B through αi8, αi12, αi22, αi30, αi40, and αi50 -B variants. Check that the motor part number ends in a -B suffix — that designation specifically indicates the IP67 aiA4000 encoder variant.

Q2: What is the resolution of the A860-2050-T321?

The A860-2050-T321 uses a 20-bit absolute position architecture, delivering high-resolution shaft angle data to the FANUC servo amplifier via FANUC's high-speed serial communication link. This resolution supports the tight positioning and contouring tolerances demanded by modern CNC machining and robotics applications.

Q3: Which FANUC CNC controls are compatible with this encoder?

The A860-2050-T321 works with FANUC servo amplifiers (αi series SVM modules) paired with CNC controls in the 0i, 16i/18i/21i, and 30i/31i/32i families — the dominant FANUC platforms across machine tools and robots built from the mid-2000s to the present.

Q4: Why is IP67 protection important for a servo motor encoder?

Servo motor encoders on CNC machine tools are continuously exposed to coolant spray, cutting fluid mist, and wash-down cycles. Without adequate sealing, moisture and contamination degrade the optical sensing components over time, leading to position errors and eventual encoder failure. IP67 — full dust exclusion and water immersion to 1 metre — ensures the encoder maintains reliable operation in production machining environments throughout its service life.

Q5: Can the A860-2050-T321 be repaired if it fails?

Genuine repair is rarely practical. FANUC manufactures the aiA4000 as a sealed unit, and the internal optical assembly is not designed for field disassembly. Specialist FANUC encoder services can perform fault diagnosis using dedicated test rigs, but in most failure cases the correct course is replacement with a verified functional unit. Before replacing, confirm the fault is in the encoder rather than the cable or amplifier — testing on a known-good motor is the definitive diagnostic step.
