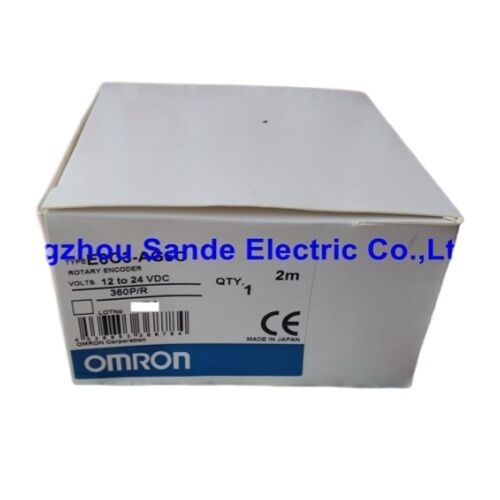

OMRON E6C3-AG5C 360P/R Rotary Encoder

Absolute | 9-Bit Gray Code | IP65 | 50 mm Housing | 12–24 VDC

Position Without Guesswork

Most position sensors tell you how far something has moved. An absolute encoder tells you exactly where something is — even after a power cut, even after a machine restart. That distinction matters enormously on a production line where re-homing routines cost time and unexpected drift costs parts.

The OMRON E6C3-AG5C 360P/R is a rugged absolute rotary encoder built around that principle. With 360 pulses per revolution and Gray code output, it delivers unambiguous angular position data across the full 360° rotation — no counting pulses from a reference point, no initialization sequence required after power restoration.

Technical Specifications

Built Tough Enough for the Shop Floor

The E6C3 series earned its "rugged" label from the materials up. The housing is aluminium alloy — light but rigid — while the shaft is SUS303 stainless steel, which holds up against the mild corrosive exposure common in food processing and chemical-adjacent environments. Sealed bearings and an IP65 rating mean water jets and airborne particulates aren't a concern under normal operating conditions.

Running at temperatures from -10°C to +70°C, this encoder covers the range from cold warehouse environments to warm process areas without thermal compensation workarounds. For storage, the range extends further still: -25°C to +85°C, which matters when units spend time on unheated shelves between deployment cycles.

Why Gray Code, and Why It Matters Here

Standard binary output has a known weakness: at certain transition points, multiple bits change simultaneously, which creates a window — however brief — where the output can read an incorrect intermediate value. Gray code eliminates this by ensuring only a single bit changes at any given transition.

For angular position sensing, that property is especially valuable. Whether you're tracking a rotating cam, a conveyor indexing position, or a dial mechanism, the E6C3-AG5C's Gray code output removes the category of position errors caused by bit-transition timing. It's not a minor refinement — it's a fundamental reliability advantage in high-cycle applications.

Where This Encoder Gets Deployed

The E6C3-AG5C fits naturally into any application that needs reliable angular position feedback without relying on a power-on reference routine. Common use cases include:

• Cam positioners — works directly with OMRON's H8PS Cam Positioner for high-precision timing control of automated machinery
• Packaging and labeling lines — angle-based registration and indexing
• Conveyor systems — product position tracking along indexed belts
• Rotary tables and turntables — absolute position monitoring across 360°
• Printing and press machinery — phase synchronization and registration
• General PLC-based motion control — NPN open collector output connects directly to most standard PLC input modules

NPN Open Collector Output — Wiring Practicalities

The NPN open collector configuration means the encoder's outputs pull to ground when active, with the load connected between the output and the positive supply rail. This is the most widely compatible output type for OMRON PLCs, Mitsubishi, Siemens S7 digital input cards, and most other industrial controllers operating in the 12–24 VDC range. Pull-up resistors are typically built into PLC input modules, so no additional components are needed in most standard wiring schemes.

Frequently Asked Questions

Q1: Does the E6C3-AG5C retain its position reading after power loss?

Yes — that's the core advantage of an absolute encoder. Unlike incremental types that must return to a home position after each power cycle, the E6C3-AG5C outputs a unique position code for every shaft angle. Power it back up and the position is immediately available.

Q2: What is the difference between the E6C3-AG5C and the E6C3-AG5C-C?

The suffix "-C" indicates a pre-wired connector termination rather than bare flying leads. Both share identical electrical and mechanical specifications. The choice depends on your panel wiring preference and whether a mating connector is already in use on the machine.

Q3: Can this encoder connect directly to a standard PLC digital input?

In most cases, yes. The NPN open collector output is compatible with the sourcing (PNP-type) digital inputs common on OMRON, Siemens, and Mitsubishi PLCs. Always verify that your PLC's input voltage range matches the encoder's supply voltage and that the input impedance suits the 35 mA output current rating.

Q4: What happens if the shaft speed exceeds 5,000 RPM?

Operating above the rated maximum speed risks signal integrity issues and accelerated bearing wear. The 20 kHz switching frequency limit also becomes a constraint at higher RPMs — at 5,000 RPM with 360 P/R, the output frequency is already at 30 kHz, which is why the mechanical speed limit is the binding constraint rather than the electrical one for this resolution.

Q5: Is the E6C3-AG5C suitable for wet or washdown environments?

IP65 protects against low-pressure water jets from any direction, which covers most splash and indirect washdown exposure. It is not rated for full submersion or high-pressure washdown. For food processing or beverage environments with aggressive cleaning routines, verify that the cleaning pressure and chemicals are within IP65 parameters before installation.
