Heidenhain ERN 1380 Incremental Rotary Encoder — ID 551126-12 | 1000 Lines | 1 Vpp | Stator Coupling | 12-Pin Radial Connector

Some encoder specifications demand no compromise. When a servo motor drive or CNC machine tool axis needs a position feedback device that holds accuracy across millions of cycles — through temperature swings, vibration, and the accumulated stress of continuous production — the answer is a Heidenhain encoder. The 551126-12 is the ID number for the Heidenhain ERN 1380-1000-62S12-30: an incremental rotary encoder with integral bearing, stator coupling mount, 1,000-line count, sinusoidal 1 Vpp output, and a 12-pin radial plug connector. Built in Germany to the engineering standards that have made Heidenhain the benchmark for precision measurement in machine tools worldwide.

Confirmed Specifications

Stator Coupling Mounting — Precision Through Mechanical Intelligence

The ERN 1380 uses a mounting method that sets Heidenhain's encoder family apart from simple shaft-coupled devices. Rather than relying on a rigid coupling between motor shaft and encoder, the stator coupling approach lets the encoder shaft connect directly to the motor shaft while the encoder housing (stator) remains fixed to the motor flange via the coupling element — which absorbs small misalignments, axial play, and tilt between the motor shaft and the encoder mounting face.

The stator coupling compensates for play between the motor and the rotary encoder, thereby correcting inaccuracy. Even tilt and axial play of up to ±0.5 mm can be reliably compensated for, and the coupling also facilitates easy mounting to the plane surface.

The result is a mounting arrangement that tolerates the real-world mechanical imperfections of production machinery without those imperfections degrading signal quality. The encoder delivers its rated accuracy regardless of minor shaft runout or mounting face deviations — which is why this configuration has become the standard for servo motor feedback in machine tool applications.

1,000-Line Count and 1 Vpp Sinusoidal Output

The 1,000 lines per revolution line count defines how many optical signal cycles the encoder generates per full shaft rotation. Unlike TTL square-wave encoders, the ERN 1380 outputs sinusoidal 1 Vpp signals — smooth sine and cosine waves across the full signal amplitude — which the connected interpolation electronics in the CNC or servo drive can then subdivide to achieve position resolution far exceeding the 1,000 physical lines.

With typical interpolation factors of 5× to 1,000×, a 1,000-line encoder with 1 Vpp output feeding a standard HEIDENHAIN or compatible interpolator can deliver effective position resolution of 5,000 to 1,000,000 counts per revolution. This is why sinusoidal output encoders are specified wherever high-resolution position feedback matters — precision servo axes on CNC lathes, machining centers, grinding machines, and gear hobbing equipment where positioning accuracy drives part quality directly.

The ~1 Vpp signal standard is also the native input format for HEIDENHAIN's IK and IBV interpolation electronics, and is accepted by most modern CNC servo drives without additional signal conditioning.

12-Pin Radial Plug Connector

The electrical connection on the 551126-12 is a straight, double-row, 12-pin plug connector with locking mechanism, oriented in the radial direction — the cable exits perpendicular to the encoder's rotational axis. This orientation is standard on motor-mounted servo feedback encoders where the cable must route cleanly away from the motor end face without axial clearance constraints.

The double-row locking connector with retaining walls provides a vibration-resistant, secure connection that does not loosen under the mechanical environment of a machine tool spindle or servo axis. For replacement or maintenance applications, confirming the pin count (12), connector orientation (radial), and locking type against the existing wiring installation is essential before installation.

Where the ERN 1380 Is Used

The ERN 1380 series occupies a specific and well-defined application space in the HEIDENHAIN encoder catalog: servo motor feedback for CNC machine tools and industrial automation. The combination of integral bearing, stator coupling, 1 Vpp output, and compact construction makes it a natural fit for:

CNC Servo Motor Feedback — direct shaft mounting on AC servo motors driving feed axes on machining centers, CNC lathes, turning centers, and grinding machines where the encoder replaces or restores the motor's factory position feedback

Drive Electronics with 1 Vpp Input — servo amplifiers and CNC controls from major machine tool and drive manufacturers that accept sinusoidal 1 Vpp incremental encoder signals as their standard feedback interface

High-Resolution Positioning Axes — linear or rotary positioning stages where the sinusoidal output, combined with downstream interpolation electronics, achieves sub-micron or arc-second level resolution from a mechanically robust device

Retrofit and Replacement Maintenance — restoring encoder function on servo motors or machine axes where the original encoder has failed, been damaged, or deteriorated through age; the 551126-12 ID number is a direct HEIDENHAIN catalog reference for ordering or specifying the exact replacement

EDM and Precision Grinding Equipment — applications requiring high signal quality, excellent signal purity, and immunity to environmental contamination, where the ERN 1380's proven optical scanning technology has demonstrated decades of reliable service

ERN 1380 in the Heidenhain Family

Within HEIDENHAIN's encoder portfolio, the ERN 1380 is part of the broader ERN series — incremental rotary encoders with integral bearings and stator coupling, available across a range of line counts and output signal types. The 1380 designation reflects a specific housing and shaft configuration within that family, with the 1,000-line 1 Vpp variant (ID 551126-12) being one of the most commonly specified configurations for servo feedback on machine tools using 200V-class servo drives.

ERN rotary encoders have integrated bearings and a mounted stator coupling. They compensate for radial runout and alignment errors without significantly reducing the accuracy. The encoder shaft is directly connected with the shaft to be measured. During angular acceleration of the shaft, the stator coupling must absorb only that torque caused by friction in the bearing — resulting in high dynamic performance and high natural frequencies that suit demanding servo control applications.

This design philosophy — minimal bearing load, high dynamic performance, and mechanical error compensation through the stator coupling — explains why ERN encoders appear on servo motors in CNC machine tools from essentially every major machine builder that sources from the European and Japanese precision motion control ecosystem.

Ordering Note

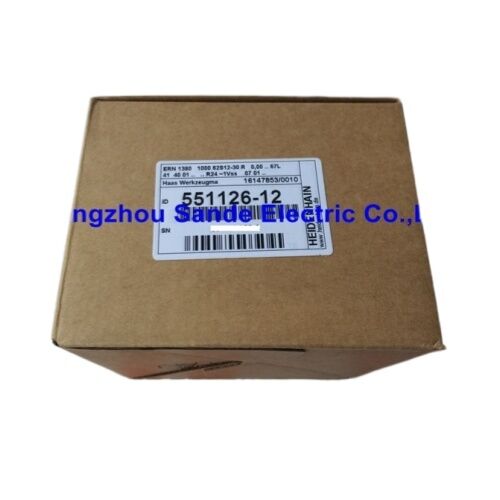

The part number 551126-12 is the HEIDENHAIN ID number — their factory catalog reference. The full model string is ERN 1380-1000-62S12-30. Both references identify the same unit. When sourcing a replacement, confirm both the ID number and the full model string against your existing encoder label, as the ERN 1380 family includes multiple line counts and connector configurations with different ID numbers.

FAQ

Q1: What does the 1 Vpp output signal mean, and what electronics does it require?

The ~1 Vpp output is a sinusoidal analog signal — the encoder outputs sine and cosine waves with a peak-to-peak amplitude of approximately 1 volt. This signal is fed to interpolation electronics in the servo drive or CNC control, which digitize it at high resolution. Most modern HEIDENHAIN-compatible CNC controls and servo drives — including Siemens, Indramat, and HEIDENHAIN iTNC systems — accept 1 Vpp directly. Verify that your servo drive or control specifies 1 Vpp encoder input before installing this encoder.

Q2: What is the stator coupling and does it need periodic maintenance?

The stator coupling is a spring-flex element that connects the encoder housing to the motor mounting flange. It allows the encoder shaft to follow the motor shaft precisely while absorbing minor misalignments and axial play. No routine maintenance is required — the coupling is a passive mechanical element. During installation, it should be secured per HEIDENHAIN's torque specifications to prevent the housing from rotating during operation.

Q3: Can the 551126-12 directly replace an older ERN 1380 with the same line count but a different connector configuration?

The encoder body and mounting are identical across ERN 1380 variants with the same line count, but the connector type, pin count, and cable exit direction differ between variants. The 551126-12 has a 12-pin radial plug connector. If the original installation uses a different connector (axial exit, different pin count, or cable version), the wiring harness must be adapted. Always verify the full ID number on the existing encoder label before ordering a replacement.

Q4: What is the effective position resolution when using this encoder with interpolation electronics?

The 1,000-line count provides 1,000 sine/cosine cycles per revolution. With 5× interpolation, the effective count is 5,000 counts/rev; with 1,000× interpolation (available on HEIDENHAIN IBV and similar units), effective resolution reaches 1,000,000 counts/rev. The actual resolution used in any given CNC installation depends on the interpolation factor configured in the servo drive or control. Sinusoidal 1 Vpp encoders are specifically chosen over TTL encoders in applications where this downstream multiplication of resolution is needed.

Q5: Is the 551126-12 still in production, and is it available as a service replacement?

The ERN 1380 series is a mature HEIDENHAIN product line. The 551126-12 ID has been noted as discontinued in some distributor catalogs, which is common for specific configurations in long-running product families as HEIDENHAIN consolidates into newer ERN generations. Current replacement availability through HEIDENHAIN-authorized service channels and the industrial aftermarket is well-established, as this is one of the most widely installed servo encoder configurations in the global CNC machine tool fleet. Confirm current availability with your supplier before placing a time-critical order.
