Replacement Hengstler Encoder 0548001 S212048001 S21-2048.001

1pcs
MOQ
Replacement Hengstler Encoder 0548001 S212048001 S21-2048.001
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New Factory Seal(NFS)
Item No.: S21-2048.001
Origin: Germany
Warranty: One Year
Lead Time: 1-2 Days
Key Word: Hengstler Absolute Encoder
Highlight:

Hengstler sine encoder

,

S212048001 sine encoder

,

replacement hengstler 0548001
Basic Infomation
Place of Origin: Germany
Brand Name: HENGSTLER
Certification: CE / cULus Listed / RoHS 2002/95/EC
Model Number: S21-2048.001
Payment & Shipping Terms
Packaging Details: original packing
Delivery Time: 1-3 Days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 10000pcs/day
Product Description

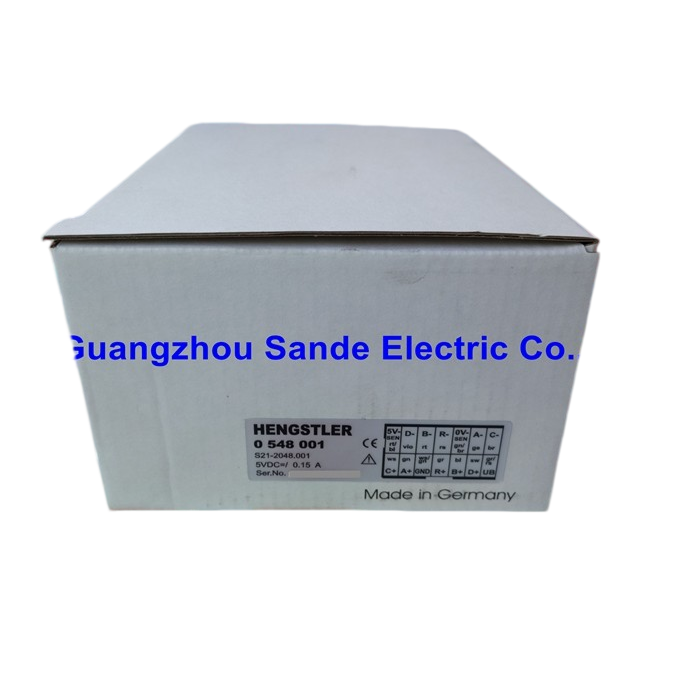

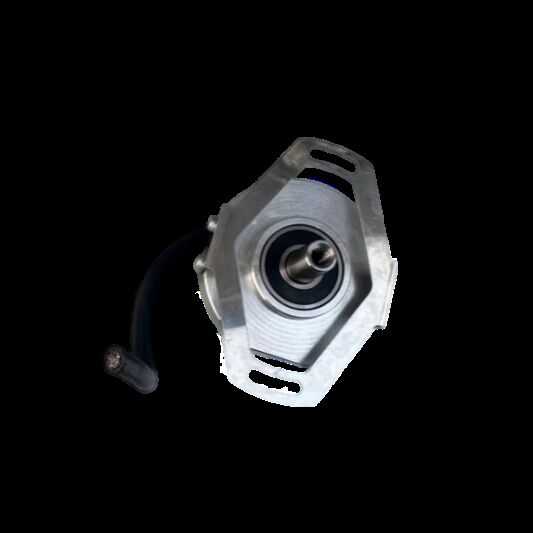

0548001 ENCODER S21-2048.001/03 C Hengstler ABSOLUTE ENCODER

0548001 / S21-2048.001/03 c

Sine-wave Encoder S 21

Features Overview Of Hengstler ABSOLUTE ENCODER 0548001

  • Wide operating temperature range of –15 °C up to +120 °C, therefore optimum use of motor capacity

  • High limiting frequency with excellent signal quality, allowing highest peak speeds and reduced non-productive time wastage

  • Excellent immunity to interference (EN 61000-4-4, Class 4)

  • High functional safety due to signal control and system monitoring (under-voltage, pollution, disc damage, end of LED service life)

  • High signal quality through control and error compensation

Certification:


CE / cULus Listed / RoHS 2002/95/EC



Detailed Product Description



Parameter Specification
Housing diameter 53 mm
Shaft diameter Cone 1/10
Protection class shaft input (EN 60529) IP40
Protection class housing (EN 60529) IP40
Shaft load axial / radial 20 N / 90 N (for tapered solid shaft)
Axial endplay of mounting shaft (hubshaft) ± 0.5 mm
Radial runout of mating shaft (hubshaft) ± 0.1 mm
Max. speed max. 12,000 rpm (continuous), max. 15,000 rpm (short term)
Torque ≤ 1 Ncm
Vibration resistance (DIN EN 60068-2-6) ≤ 100 m/s² (10 … 2,000 Hz)
Shock resistance (DIN EN 60068-2-27) ≤ 1,000 m/s² (6 ms)
Operating temperature –15 °C … +120 °C
Storage temperature –20 °C … +80 °C
Material housing Aluminum
Weight approx. 170 g
Connection PCB connector and cable



Parameter Specification
General design as per DIN EN 61010-1, protection class III, contamination level 2, overvoltage class II
Supply voltage DC 5 V ±10 %
Max. current w/o load 120 mA
Reference signal R > 0.4 V (1 pulse per revolution)
Commutation signals C, D Sine – Cosine 1 Vpp (1 period per rev.)
Incremental signals (optional) Sinus-Cosinus 1 Vpp
Number of pulses 2048
3 dB limiting frequency 500 kHz
Absolute accuracy ±35″
