Fanuc A860-0360-T001 | Alpha αA64 Absolute Pulse Coder — 64,000P, Small-Frame, 15-Pin Flat Plug, Fanuc Small Alpha AC Servo Motors

Overview

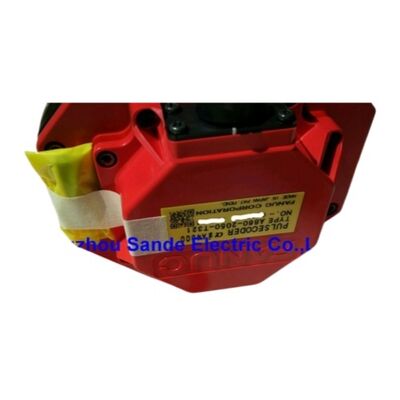

The Fanuc A860-0360-T001 is the absolute αA64 (64K ppr) pulse coder for small-frame Fanuc alpha series AC servo motors.

It sits at the small end of the A860-0360 family, physically matched to the compact motor frame of the a1/3000, a2/2000, a2/3000, and αM2.5/3000 motors — and it is precisely this small-frame construction that makes it non-interchangeable with the larger αA64 variants used on bigger alpha motors.

The motor frame governs the encoder body size, and the size difference is mechanical, not electrical — both small and large frame A860-0360 variants produce the same 64K ppr absolute feedback to the same CNC interface.

The 15-pin male flat plug connector identifies this encoder as belonging to Fanuc's later connector generation for the A860-0360 family, having moved on from the older hardwired cable construction of the earliest T101 variant.

The flat plug mates with the female socket in the motor's encoder cable assembly, and the cable runs from there to the servo amplifier's encoder input.

The connector-based design means the encoder can be swapped without disturbing the cable routing, which is a practical advantage during motor maintenance.

From a motion control standpoint, the A860-0360-T001 fulfills the core function of every absolute pulse coder: it tells the servo amplifier exactly where the motor shaft is at any moment, without requiring the machine to perform a reference return at power-up.

After every planned or unplanned machine power cycle, the CNC powers up and immediately knows the position of each axis — assuming the servo amplifier's battery has maintained the multi-turn position count through the power-off period.

For production environments where machine startup time and setup repeatability matter, this absolute position retention is not a luxury; it is a baseline operational requirement.

The A860-0360-T001 has been discontinued by Fanuc, with supply now coming entirely from managed exchange pools and controlled surplus.

The small-frame alpha motors it serves — often used in lighter-duty axes on machining centres, turning centres, and transfer lines — continue to operate in many production environments, making tested replacement encoders an active maintenance requirement.

Key Specifications

Small-Frame Design — Why Size Is Not Interchangeable

The alpha series covers a wide range of motor torque ratings, and motor physical size scales with torque.

A small-frame motor like the a1/3000 has a substantially smaller rear housing diameter than a mid-frame motor like the a6/3000.

The encoder must fit the motor's rear housing — the disc assembly couples to the motor shaft, and the encoder body mounts to the rear housing plate.

This means the encoder body diameter and mounting pattern of the A860-0360-T001 is specific to small-frame motors, and fitting a large-frame αA64 encoder to a small-frame motor (or vice versa) is mechanically impossible without modifications that are not factory-sanctioned.

When sourcing a replacement T001, the correct part number is non-negotiable — a T001 for a small-frame motor cannot be substituted with a T201 or T211 from the large-frame alpha motor range, even though all produce the same 64K ppr absolute feedback. The part number must match the motor model.

Absolute Position in Production — Battery Maintenance

The absolute position memory in the A860-0360-T001's installation depends on battery backup in the servo amplifier.

The battery maintains the amplifier's SRAM — which holds the accumulated multi-turn encoder count — during machine power-off. Without a healthy battery, the count is lost at the next power-down, and the machine requires a full reference return at the following power-up.

Battery management is simple but easily overlooked.

The CNC generates a BAT alarm when battery voltage falls to the warning threshold. The correct response is to replace the battery while the machine remains powered on — the amplifier's supply voltage holds the SRAM intact through the battery swap.

Replacing the battery while the machine is de-energised risks position data loss if the battery was already exhausted. Most Fanuc servo systems use standard 3.6V lithium D-cell or equivalent batteries; confirm the correct part number from the machine's maintenance manual.

FAQ

Q1: What is the difference between the A860-0360-T001 and the A860-0360-T011 in this same encoder family?

Both are small-frame αA64 absolute encoders for the same motor range with the same 64K ppr specification and 15-pin flat plug connector. The T011 includes an internal supercapacitor that provides short-term (minutes) position backup after machine power-off, independent of the amplifier battery.

The T001 has no internal supercapacitor — it relies entirely on the amplifier battery for position retention.

For machines where planned power-off periods are short and battery maintenance is reliable, the T001 is functionally equivalent.

The T011's supercapacitor offers an additional safety margin for brief unplanned power interruptions.

Q2: Can the A860-0360-T001 be replaced with an alpha i series encoder for a future-proof upgrade?

No. The A860-0360-T001 serves the alpha (pre-i) motor generation and uses the alpha serial encoder protocol. Alpha i series encoders (A860-2000/2001/2005 families) use a different serial protocol and physically mount on different motor frame styles.

Fitting an alpha i encoder on an alpha motor is not mechanically or electrically compatible.

If a genuine upgrade path is desired, it requires replacing the motor itself with an equivalent alpha i motor, replacing the servo amplifier with an alpha i compatible unit, and updating the CNC's servo parameters — it is a complete axis drive upgrade, not an encoder swap.

Q3: What are the signs that the A860-0360-T001 is failing before a permanent alarm appears?

Intermittent SV-360 series alarms that clear on power cycling are the earliest electrical indicator — these suggest marginal signal quality at the encoder-to-cable interface, or degrading optical disc performance under rotation.

Axis position errors where the CNC loses track of position by a fixed increment (typically a multiple of the encoder's position count) during high-speed movement can indicate disc contamination causing occasional missed counts.

Physical indicators include roughness or resistance when rotating the motor shaft by hand (indicating bearing wear in the encoder), and visible coolant or oil contamination around the encoder body seal. Any of these should prompt testing before an outright encoder failure stops the machine.

Q4: How should a surplus A860-0360-T001 be evaluated before installation on a production machine?

At minimum, the replacement encoder should be tested on a closed-loop alpha motor test rig with a compatible CNC — driven at rated speed, in both directions, with the serial feedback verified against commanded position.

A supplier who tests on a static bench (powering the encoder without rotating it) is providing a much weaker quality assurance than one who tests under rotation on a real Fanuc system. Ask specifically about the test methodology.

Also inspect the 15-pin connector for bent or corroded pins and verify the encoder body housing seal shows no cracks or evidence of previous liquid ingress.

Q5: Is the A860-0360-T001 compatible with the same CNC generation as the Serial A encoder (A860-0346-T101)?

Yes — the αA64 A860-0360-T001 and the Serial A A860-0346-T101 are both compatible with Fanuc Series 15/16/18/21 (Model A) CNCs with their respective motor types. However, the two encoders serve different motor families: the T001 goes on small alpha motors, and the Serial A encoder goes on S-series motors.

The CNC's servo interface handles both encoder types through its digital servo loop, but they are not interchangeable between motor generations — each encoder fits only its intended motor type.
