FANUC A860-0365-V501 Alpha i64 Incremental Pulse Coder — 64,000-Pulse Servo Feedback for FANUC CNC Systems

Ask any FANUC servo technician which encoder family they see most often on CNC machine tool repairs, and the Alpha i64 series comes up reliably. The FANUC A860-0365-V501 is the incremental variant of that family — a 64,000-pulse serial pulse coder fitted on an enormous installed base of FANUC Alpha i series AC servo motors across machining centers, lathes, and automated production lines the world over.

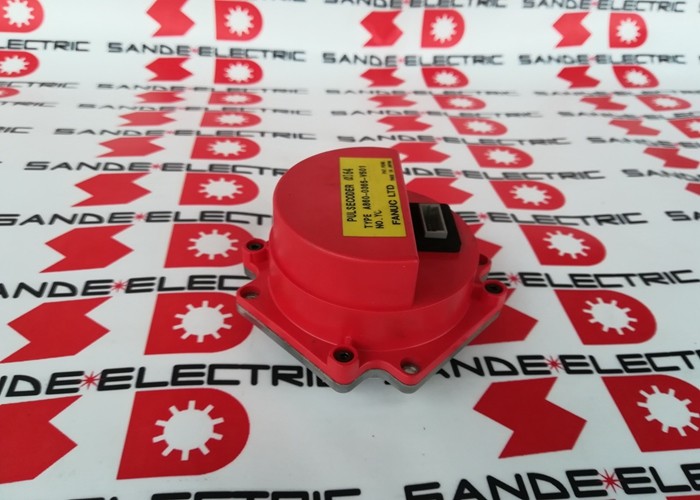

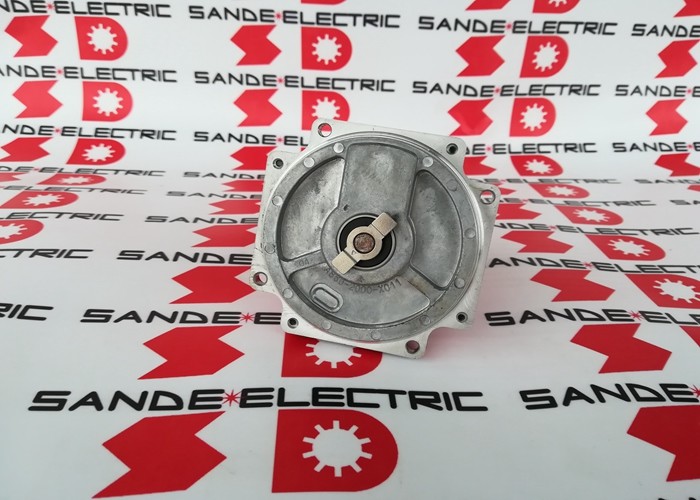

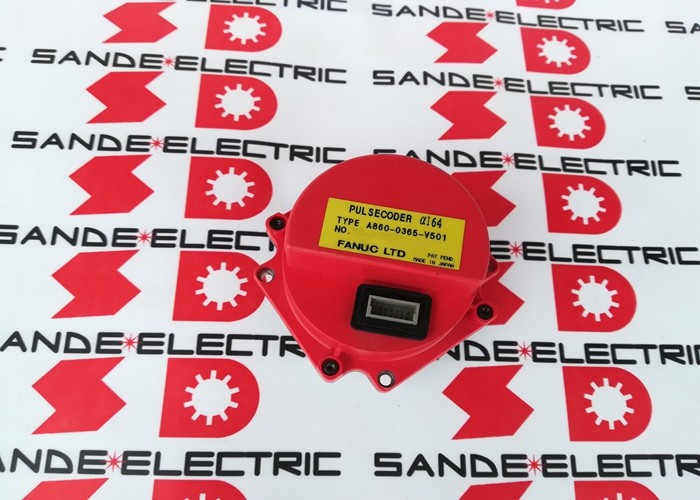

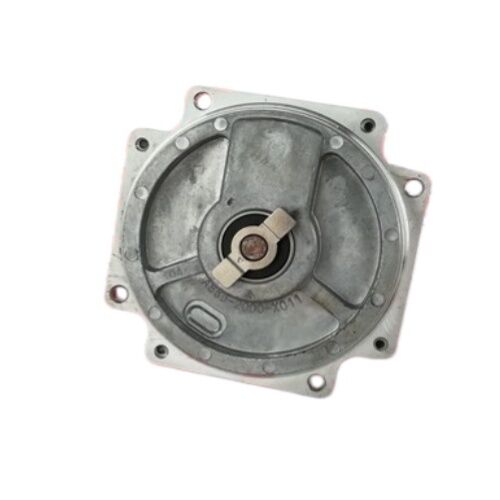

This unit is offered tested and fully functional — pulled from a working machine, verified against a FANUC servo drive, and confirmed to produce clean, stable output before shipping.

Incremental at 64K Resolution — What That Delivers

The "I64" designation tells you the important number straight away: 64,000 pulses per revolution on this incremental encoder. Through FANUC's high-resolution serial communication protocol between the pulse coder and the servo amplifier, the control system processes position data with a fineness that makes sub-micron axis positioning achievable at the machine level.

Compare that to earlier FANUC generations — the 2,000-pulse DC encoder of the first-generation motors, or even the 8,000-pulse encoders on early AC servo motors — and the resolution jump illustrates why the Alpha i series raised the bar for positioning accuracy and speed regulation when it was introduced.

Quadrature A and B outputs, 90 degrees out of phase, give the servo drive both position count and direction of travel simultaneously. This bidirectional tracking means the control knows exactly where the axis is on every move, in both directions, with no ambiguity at reversal points.

Technical Specifications

The Alpha i64 in the FANUC Motor Ecosystem

FANUC's Alpha i series AC servo motors replaced the earlier Alpha (red-cap) series from the early 2000s onward and became the dominant servo platform in FANUC-controlled machine tools for roughly two decades. The key distinction between the Alpha (aA64) absolute encoder generation and the Alpha i (aI64) incremental generation is the feedback architecture:

The aI64 is an incremental encoder — it counts pulses from a known starting reference rather than outputting an absolute position word. This means the CNC control establishes axis reference positions through a reference return (homing) operation at machine startup, after which the incremental count provides continuous, highly accurate position tracking.

FANUC's high-resolution serial protocol transmits this data between the encoder and the amplifier over a dedicated two-wire serial link, providing the high data throughput needed to support the 64K resolution at full motor speed without the signal integrity challenges of parallel wiring.

V501 Connector Variant — Without Cable

The V-suffix in FANUC pulse coder part numbers typically indicates a bare encoder unit without the interconnecting cable. The A860-0365-V501 ships without cable — the matching cable assembly (A860-0360-V906) is ordered separately and connects the encoder body to the amplifier's CN2 encoder port.

For replacement work on an existing machine, the original cable is typically reused if it's undamaged. The cable is a common failure point — particularly the connector pins and the first few centimeters of cable adjacent to the connector where repeated flexing occurs — so inspecting it before reuse is worth the few minutes it takes.

Where This Encoder Is Found

The A860-0365-V501 is fitted on a very broad range of FANUC Alpha i servo motor models, covering the axis drive applications on equipment built from the early 2000s through the 2010s:

CNC Machining Centers — X, Y, Z, and rotary axis drives on vertical and horizontal machining centers from Mazak, Makino, Okuma, Haas, DMG Mori, and dozens of other builders using FANUC Alpha i servo systems

CNC Turning Centers — Z and X axis servo feedback on two-axis and multi-axis lathes, plus sub-spindle and C-axis drives on more complex turning centers

Robot Joints — FANUC industrial robots in the M and R series families used Alpha i servo motors with aI64 pulse coders in their joint axes

Flexible Manufacturing Systems — pallet changers, automated material handling systems, and transfer lines built around FANUC CNC and servo technology from the same era

Buying Used and Tested — The Practical Case

This is a tested, used unit — and for the A860-0365-V501, that's a reasonable and common sourcing choice. New units, when available, carry a significant price premium. A tested used encoder that has been verified on a working servo system has a known functional state, and the bearings inside have typically run for years without issue — these are precision optical devices, not high-wear components under normal operating conditions.

The caution with used pulse coders is always the bearing condition and the integrity of the optical sensing assembly. A unit pulled from a machine that failed for unrelated reasons and tested against a servo drive is meaningfully different from an untested surplus pull. Verifying that the encoder produces clean A, B, and Z channel outputs at representative speed before shipping is the standard of due diligence that makes a tested used unit a reliable purchase.

FAQ

Q1: Is the A860-0365-V501 an absolute or incremental encoder?

It is incremental. The "I" in Alpha i64 stands for incremental — it tracks position by counting pulses from a reference point. The machine establishes axis references through a homing cycle at startup. This is distinct from absolute encoders, which output position directly without requiring a reference return.

Q2: Does this encoder come with the cable?

No. The V501 variant is supplied without cable (W/O cable). The matching cable assembly is A860-0360-V906, which connects the encoder to the servo amplifier's CN2 encoder input. On a replacement job, the existing machine cable can typically be reused if it's in good condition.

Q3: Which FANUC servo motors and amplifiers use the A860-0365-V501?

This pulse coder is fitted on FANUC Alpha i series AC servo motors (A06B-0xxx series with aI64 encoder designation). It works with FANUC αi and αiS series servo amplifiers and is compatible with CNC controls in the 0i, 16i, 18i, 21i, 30i, 31i, and 32i families. Confirm against the motor nameplate part number before ordering.

Q4: What does "tested" mean for a used pulse coder?

A tested pulse coder has been electrically verified on an actual FANUC servo drive system — confirming that the A, B, and Z channel outputs are present, clean, and correctly phased at operating speed. This is more meaningful than a simple visual or continuity check and confirms the optical sensing assembly and electronics are functioning as designed.

Q5: Can the A860-0365-V501 be repaired if it develops a fault?

Yes — specialist FANUC motor and encoder repair services can replace bearings, reseat the optical disk, and repair connector damage on the aI64 pulse coder. Repair is a viable path when the encoder housing and optical disk are intact but a bearing failure or connector fault has rendered the unit non-functional. For units with physical disk damage or cracked housings, replacement is the practical option.
