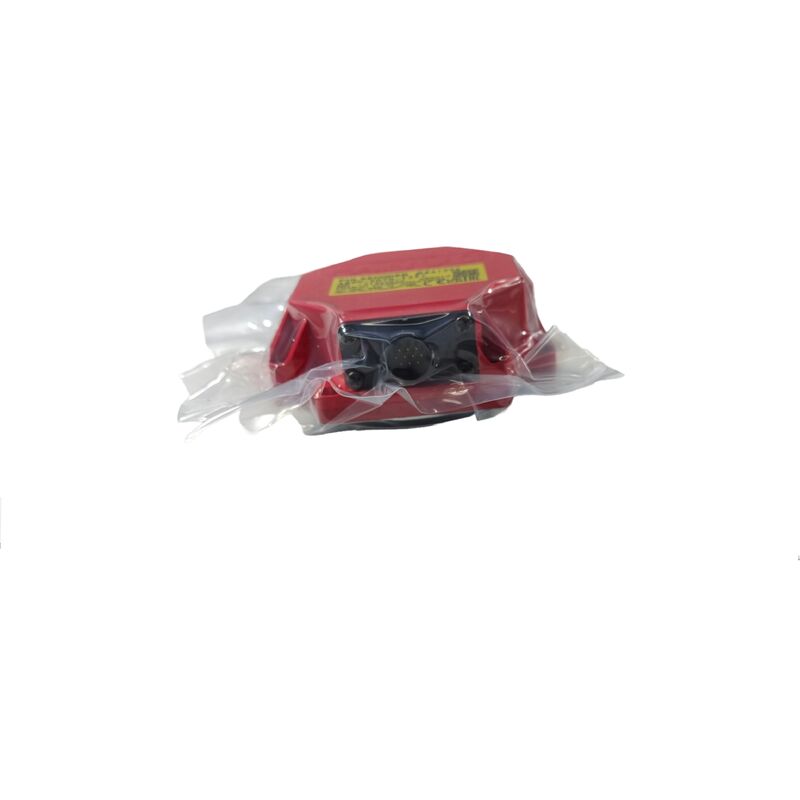

FANUC A860-2120-T511 Spindle Motor Encoder — Alpha i BZi Sensor for FANUC AC Spindle Systems

When a CNC spindle won't orient, rigid tapping produces bad threads, or the control throws a spindle sensor alarm, the problem often traces back to one component: the spindle motor encoder. The FANUC A860-2120-T511 is the factory-matched feedback sensor for FANUC's Alpha i series AC spindle motors — a magnetic gear-tooth sensor that gives the spindle amplifier the continuous speed and position data it needs to run orientation, C-axis, and synchronized feed cycles with confidence.

What This Encoder Actually Is

The A860-2120-T511 belongs to FANUC's Alpha i BZi (BZ) sensor family — a line of magnetic sensing units designed specifically for AC spindle motor feedback in the FANUC CNC ecosystem. Unlike optical pulse coders that count light through a slotted disk, the BZi sensor reads the teeth of a precision gear ring mounted on the spindle motor shaft, generating a high-frequency signal that the spindle drive converts to speed and angular position data.

This magnetic sensing approach gives the BZi sensor a practical edge in the harsh environment of a spindle motor: it's unaffected by oil mist, metallic dust, or the vibration and thermal cycling that characterize industrial spindle applications running at sustained high RPM.

Technical Specifications

The BZi Sensor Architecture — Magnetic Tooth Detection

FANUC's BZi sensor technology works on a straightforward but reliable principle. A toothed ring is precision-mounted to the spindle motor shaft and rotates with it. The BZi sensor head, fixed to the motor body, detects the passing of each tooth magnetically and generates pulses proportional to shaft speed and angular position.

This gear-tooth counting method is robust by design. The detection gap is relatively tolerant of contamination compared to optical sensing, and the magnetic field is not disrupted by the coolant spray, oil vapor, and swarf that inevitably find their way into high-speed spindle environments. FANUC's technical guidance for the BZi series specifically warns against magnetic dust accumulating on the gear teeth — and recommends periodic air blowing during maintenance — which confirms just how close to the cutting environment these sensors operate.

What Spindle Feedback Enables

The A860-2120-T511 isn't just running in the background. Every high-value spindle function on a FANUC-controlled machine depends on accurate, low-latency spindle feedback:

Spindle Orientation — Stopping the spindle at a precise angular position for tool changes, boring head adjustment, or part loading. Without clean sensor data, the spindle overshoots the target position or hunts.

Rigid Tapping — Synchronizing spindle rotation with Z-axis feed during threading cycles. The controller calculates thread pitch by correlating spindle encoder pulses with servo position. A sensor fault here produces incorrect thread pitch or broken taps.

C-Axis Positioning — On mill-turn centers, the spindle functions as a controlled rotary axis. Position feedback from the BZi sensor allows the spindle drive to hold angular position under cutting load — a requirement for off-center drilling and contour milling.

Threading and Feed Synchronization — On lathes, spindle speed data feeds directly into the G32/G76 threading cycle calculation. Spindle sensor degradation typically shows up first as irregular thread pitch before it progresses to outright faults.

Alpha i BZi Sensor Family — The A860-2120 Series

The A860-2120 series covers multiple connector and cable variants of the Alpha i BZi sensor assembly. The part number suffix indicates the specific connection configuration:

• V-series (e.g., A860-2120-V004, A860-2120-V005) — sensor assembly variants, typically without cable or with alternate connectors
• T-series (e.g., A860-2120-T401, A860-2120-T511) — sensor assemblies with integrated cable and connector for direct installation

The T511 variant comes with its cable and plug pre-installed, ready for direct mounting and connection to the spindle motor and amplifier without additional assembly. For maintenance teams replacing a failed sensor, this saves significant installation time compared to rebuilding a connector termination in the field.

CNC Machines Where This Encoder Is Found

FANUC Alpha i spindle motors with the A860-2120 BZi sensor family are installed across a broad cross-section of CNC equipment produced during the 2000s through the present:

CNC Machining Centers — horizontal and vertical machining centers from Mazak, Makino, DMG Mori, Okuma, Doosan, and other builders running FANUC 0i, 16i, 18i, or 30i series controls

CNC Lathes and Turning Centers — two-axis and multi-axis turning centers where spindle speed feedback governs threading cycles and part surface finish

Mill-Turn Centers — multi-tasking machines requiring C-axis spindle positioning and driven-tool synchronization

Dedicated Machining Lines — transfer line spindle heads and special-purpose machine tools with FANUC spindle drives in the SPM series

Sensor Installation — What Matters

The BZi sensor requires precise air gap setting between the sensor head and the gear ring teeth. Too wide a gap and the signal amplitude drops, leading to intermittent detection errors. Too narrow and physical contact during thermal expansion or vibration can damage the sensor.

FANUC's installation procedure involves centering the sensor using the amplifier's diagnostic screen while rotating the spindle slowly, then locking down the mounting once the signal is stable. This centering step is mandatory after every sensor replacement — and it's also why the T511 variant's pre-wired cable is useful, as it eliminates one variable from the installation process.

FAQ

Q1: What function does the A860-2120-T511 perform on a FANUC CNC machine?

It is the spindle motor's position and speed feedback sensor. It detects the passing of gear teeth on the motor shaft and sends this data to the FANUC spindle amplifier, which uses it for spindle speed control, orientation, rigid tapping synchronization, and C-axis positioning functions.

Q2: Which FANUC spindle amplifiers and CNC controls are compatible with this sensor?

The A860-2120-T511 is designed for FANUC Alpha i series AC spindle motors paired with SPM (Spindle Amplifier Module) series drives. It is compatible with CNC systems in the FANUC 0i, 16i, 18i, 21i, 30i, 31i, and 32i families. Always confirm against the motor nameplate and amplifier documentation before ordering.

Q3: Does the sensor need calibration or adjustment after replacement?

Yes. After installing the A860-2120-T511, a centering procedure is required to set the correct air gap between the sensor head and the gear ring. This is performed using the spindle amplifier's diagnostic display while rotating the spindle at low speed. Skipping this step leads to detection errors and spindle alarms.

Q4: What causes this sensor to fail, and what are the warning signs?

Common causes include bearing wear on the motor allowing excessive shaft runout, contamination of the gear ring with magnetic swarf, cable damage from heat or coolant, and connector corrosion. Warning signs include intermittent spindle orientation failures, inconsistent rigid tap depth, spindle sensor alarms (SV or SP alarm codes on FANUC systems), and unstable spindle speed at low RPM.

Q5: What is the difference between the T-suffix and V-suffix variants of the A860-2120 series?

Both are Alpha i BZi sensor assemblies for the same motors. The V-suffix variants (e.g., A860-2120-V004, V005) are sensor units typically without mounting ring or with alternate cable configurations. The T-suffix variants (e.g., A860-2120-T511) include an integrated cable and connector, ready for direct plug-in installation. Confirm the required variant against the motor's existing sensor part number before purchasing.
