A860-0346-T001 FANUC Pulse Coder A8600346T001 A860-0346-T001

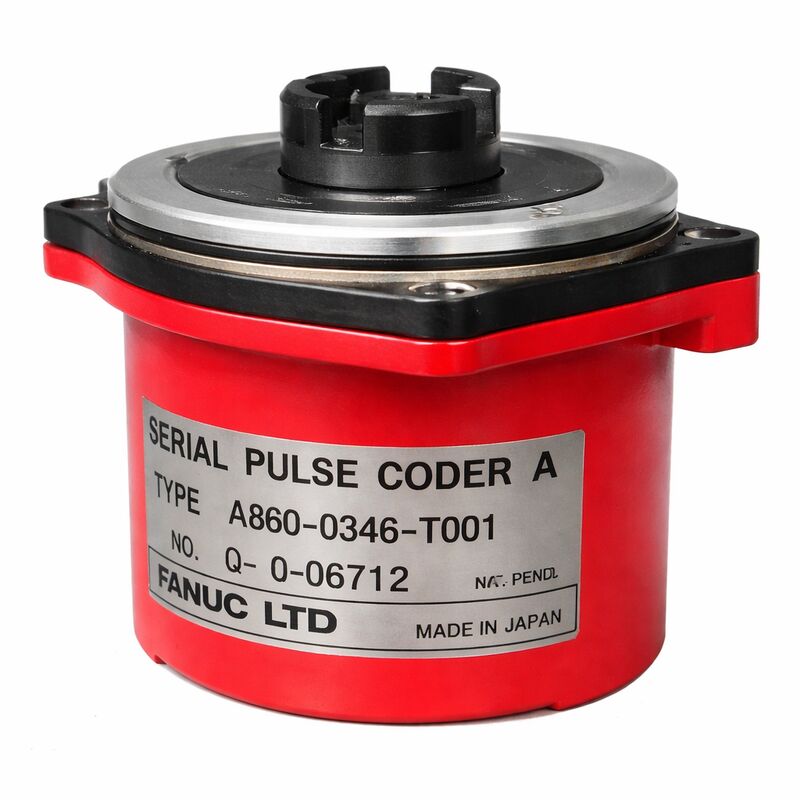

Fanuc A860-0346-T001 | Serial Pulse Coder A — Non-Alpha, D-Sub Connector, 40,000P Absolute, Red Cap, Fanuc AC S-Series Servo Motors

Overview

The Fanuc A860-0346-T001 is the earliest and most fundamental variant in the A860-0346 Serial Pulse Coder A family — the T001 suffix denoting the base version within the series.

It carries the same red plastic cap housing, 40,000 ppr absolute Serial A feedback architecture, and motor-mounted form factor that characterise all members of the A860-0346 encoder range, but is distinguished by its D-Sub connector configuration at the cable connection point.

This D-Sub interface reflects the connector standard of the machine tools and wiring installations for which this variant was specified.

The "Non-Alpha" designation in Fanuc's documentation for this encoder is important context. It distinguishes the entire A860-0346 family from the later alpha, alpha i, and beta series encoder lines.

Non-Alpha means this encoder belongs to the pre-alpha generation — the S-series AC servo motors that preceded the introduction of the alpha servo motor range.

For maintenance engineers encountering a machine with S-series motors and this encoder, that "Non-Alpha" label is the system generation identifier: it tells you which amplifiers, CNC controls, and service procedures apply, and which modern alpha or beta series encoders are incompatible with this installation.

The product series designation A860-0346 spans the complete range of Serial Pulse Coder A variants for the S-series motor generation.

Within this series, the T001 is the foundational variant — the original form from which other T-suffix variants evolved as Fanuc adapted the connector style and mechanical details for different motor body sizes and machine builder specifications.

Machines that were built with T001 encoders from the earliest production runs of S-series motor-equipped CNC machine tools are likely the machines where this specific part number is still needed today.

Key Specifications

Non-Alpha Product Positioning in the Fanuc Encoder History

Fanuc's encoder generations follow the motor generations they support: conventional pulse coders (incremental, A860-0300 series) for the earliest DC and AC servo motors; Serial Pulse Coder A (A860-0346 series) for the S-series AC motors; alpha series encoders (A860-0360, A860-0370 families) for alpha motors; and alpha i / beta i series encoders (A860-2000 and A860-2020 families) for the current generation.

The A860-0346-T001 sits at the Serial A stage of this evolution — the generation where Fanuc moved from raw pulse trains to serial communication, and from incremental to absolute position, while still using the red cap housing that had become familiar from the S-series motor design.

Machines equipped with A860-0346-T001 encoders were built during a period when many of today's high-volume machining centres were being installed for the first time.

That these machines remain in production decades later speaks to the durability of the underlying motor and mechanical structure — but it also means the encoders on those motors are well into their service life, and replacement parts like the A860-0346-T001 are essential to keeping these productive assets running.

D-Sub Connector — Cable Interface Context

The D-Sub connector on the A860-0346-T001 distinguishes it from later A860-0346 variants that use round MS-style or other connector types. D-Sub connectors were common in industrial electronics and CNC machine wiring of the era, providing a reliable, widely available connector standard with good contact protection when properly mated.

The existing cable in a machine built with T001 encoders will terminate in a matching D-Sub connector at the encoder end — a direct replacement T001 encoder will mate without cable modification, whereas using a different T-suffix variant with a different connector type would require cable adaptation.

When sourcing replacement T001 encoders, confirm that the D-Sub connector is present and undamaged on the exchange unit.

Connector damage — bent pins, broken housing clips, or contamination in the contact cavities — is a common result of rough handling in the aftermarket and should be inspected before installation.

FAQ

Q1: What distinguishes the A860-0346-T001 from the T041 and T101 within the same family?

All three are 40,000 ppr Serial Pulse Coder A absolute encoders with the same red cap and Serial A communication protocol.

The T001 is the base variant with a D-Sub connector; the T041 and T101 variants use different connector types and have specific motor model compatibility ranges.

The T101 is confirmed for model 0S through 30S motors specifically; the T001 is the original variant that fit the initial S-series motor releases.

These mechanical and connector differences mean the three variants are not directly interchangeable without first confirming that the connector and mounting dimensions of the replacement match the original installation.

Q2: The product is described as "Non-Alpha" — does this affect which CNC it is compatible with?

Yes. "Non-Alpha" indicates this encoder belongs to the S-series motor generation, and the CNCs that communicate with it are those equipped with the Serial Pulse Coder A interface card: specifically the Fanuc digital servo control systems for the Zero-series (0-C, 0-D) and the 16/18/21 Model A controls.

Alpha series motors use alpha encoders that communicate on a different serial protocol; alpha i motors use a further evolved serial protocol.

Connecting a Non-Alpha Serial A encoder to an amplifier designed for alpha series feedback produces an incompatibility fault — the amplifier cannot decode the Serial A protocol. The motor, amplifier, encoder, and CNC must all belong to compatible generations.

Q3: Can the absolute position be maintained indefinitely, or does it degrade over time?

Absolute position is maintained as long as the backup battery in the servo amplifier or battery unit remains above its discharge threshold.

The battery chemistry (typically lithium primary cells) has a finite service life — typically three to five years depending on usage patterns, with continuous machine operation consuming the battery more slowly than frequent power cycling. When battery voltage drops to the warning threshold, the CNC generates a BAT alarm.

The battery should be replaced before the machine is powered off for extended maintenance, as replacing the battery while the machine remains powered avoids data loss. Once position data is lost due to full battery discharge, a reference return procedure re-establishes the datum.

Q4: Is it possible to test the A860-0346-T001 encoder without removing it from the motor?

Basic diagnostic testing is possible in situ. On the CNC, monitoring the servo feedback status during slow axis motion (using the diagnostic screen or servo diagnostic data) can reveal communication quality — clean serial data without retransmission requests indicates a healthy encoder.

Checking the encoder connector at the motor end for secure seating and clean contacts is a non-invasive first step.

However, for definitive encoder evaluation, particularly when contamination, disc wear, or bearing deterioration are suspected, the motor must be removed and the encoder tested on a dedicated serial A test rig with oscilloscope verification of the serial output under rotation — a proper workshop test that cannot be replicated in-situ.

Q5: What are the available service options for a machine-down situation involving this encoder?

Exchange is the fastest recovery route: a tested, warranted exchange A860-0346-T001 (or confirmed-compatible alternative) can be shipped and installed within hours in regions where stock is available.

Submit the complete motor with the faulty encoder to a specialist service provider — this allows the encoder change, bearing inspection, winding resistance test, and insulation check to be performed as a complete motor overhaul rather than just an encoder swap, which is the better practice for a motor of this age.

Where exchange stock is unavailable, sourcing the A860-0346-T001 from surplus channels is the alternative — surplus units should be electrically tested on a serial A rig before installation, as physical inspection alone is insufficient to confirm encoder functionality.
