Fanuc A860-0346-T041 | Serial Pulse Coder A — 40,000P Absolute, Red Cap, Fanuc AC S-Series Servo Motors, CNC Zero / 16 / 18 / 21

Overview

The Fanuc A860-0346-T041 is a Serial Pulse Coder A variant from the A860-0346 family, sharing the red plastic cap housing and 40,000 ppr absolute serial feedback architecture common to all encoders in this S-series motor generation.

The T041 suffix places it within the A860-0346 encoder range, distinguishing its specific connector configuration and mechanical interface from other variants in the same series — a distinction that matters when physically matching the encoder to the motor it serves, as different T-suffix members have different connector pin counts and mechanical fitment details.

The A860-0346-T041 carries the defining characteristics of the entire Serial Pulse Coder A generation: the absolute position capability that eliminates reference return at power-on, the high-speed serial communication link to the amplifier, and the red plastic housing that encapsulates the optical disc assembly and electronics against the machine environment. On machines where this encoder variant was originally installed, it appears alongside Fanuc's S-series AC servo motors — the motor range that defined Fanuc's transition from DC servo to AC servo technology in the 1980s.

What sets the A860-0346-T041 apart within the family is primarily the connector and mechanical variant it represents.

Across the A860-0346 range, Fanuc produced multiple T-suffix variants to accommodate different motor body configurations, cable routing requirements, and connector standards that varied by motor size, mounting orientation, and machine builder preference.

The T041 is one of these variants, serving specific motor configurations within the S-series range where the T101 or T141 variants would not physically fit.

Key Specifications

The Red Cap Identity — S-Series Motor Generation

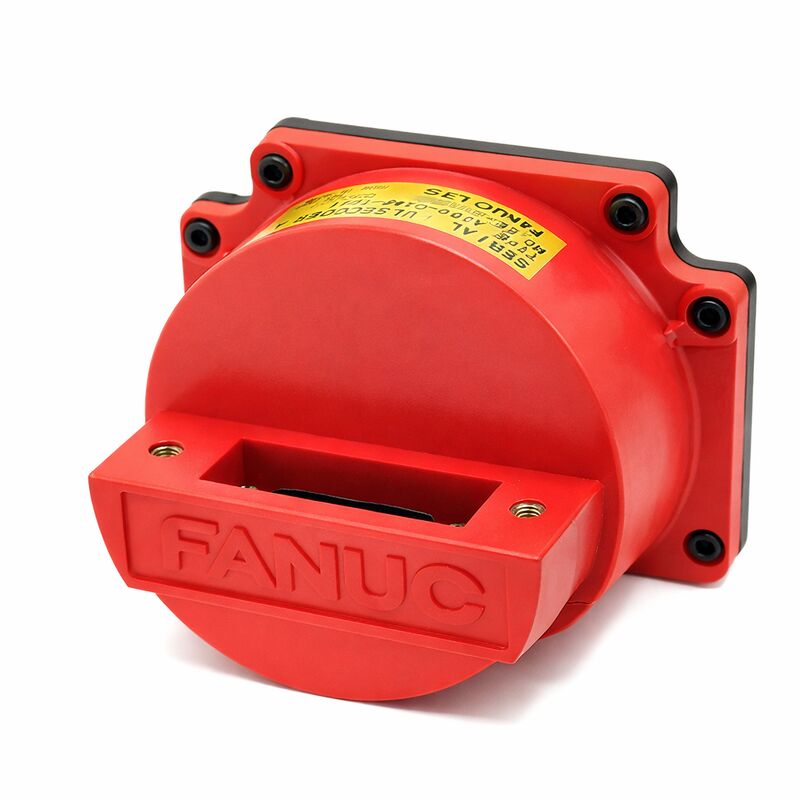

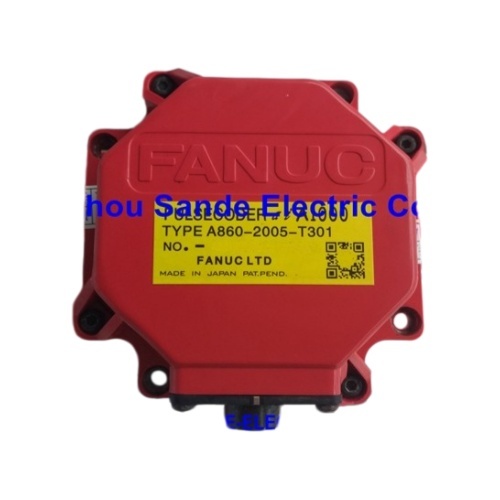

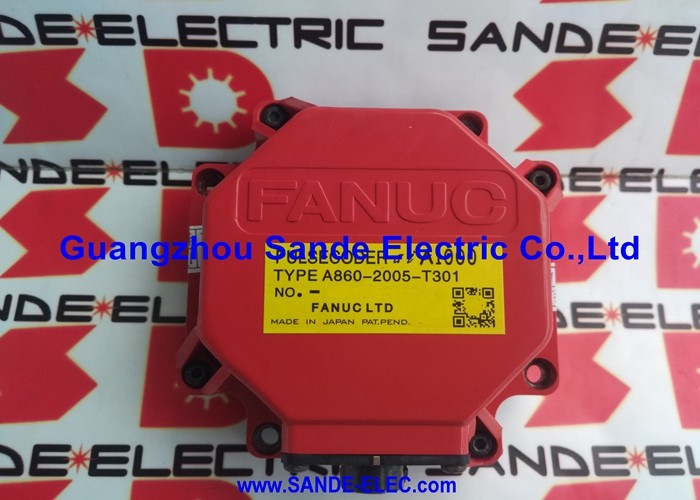

The red plastic encoder cap is one of the most recognisable identifiers in Fanuc's motor history. When a motor is fitted with an A860-0346 series encoder, the entire motor presents as a "red cap motor" — a colloquial name that persists in the CNC service industry.

This identification is practical: the red cap immediately tells a service engineer which generation of encoder and motor they are dealing with, before any part numbers are checked.

It signals Serial Pulse Coder A, S-series motor, digital servo CNC compatibility, and battery-backed absolute position — all key facts for diagnosing and servicing the machine.

The A860-0346-T041's red cap also serves as an environmental seal.

The encoder disc and electronics are housed inside the cap, which clips or screws onto the rear of the motor frame to protect the encoder from coolant splash, swarf, and the electromagnetic interference generated by the motor's own windings.

While not rated to the IP67 standard of later alpha i encoders, the red cap provides meaningful protection in a typical machine tool environment when the seal and retaining fasteners are intact.

Serial A Absolute Position — Operational Context

The 40,000 ppr absolute resolution of the A860-0346-T041, while modest compared to modern alpha i encoders with millions of counts per revolution, was appropriate for the machining accuracy required of the S-series motors' applications.

At 40,000 counts per revolution and with a typical 10mm pitch ball screw, the raw position resolution is 0.25µm per count — more than sufficient for the tolerances routinely held by CNC machine tools equipped with this motor generation.

The absolute nature of the Serial Pulse Coder A means the CNC does not need to re-establish axis zero position at every startup.

For production environments where the machine runs continuous shifts with minimal power-down cycles, this eliminates the reference return step that incremental encoder machines require.

The position is maintained as long as the backup battery remains charged — making battery monitoring a first-line maintenance responsibility for all machines in this encoder generation.

FAQ

Q1: How does the A860-0346-T041 differ from the T101 and T141 in the same family?

All three are 40,000 ppr Serial Pulse Coder A absolute encoders with the same red cap housing and the same CNC compatibility.

The differences are in the connector type, pin count, and motor mounting interface.

The T041 has a specific connector arrangement suited to the motor configurations it was installed on; the T101 is confirmed for model 0S through 30S; the T141 is noted for a 19-pin connector variant. Substituting between T-suffix variants is not straightforward — the mounting flange dimensions and connector at the motor-side cable must match exactly.

Always confirm the motor model and original encoder T-suffix from the motor documentation or nameplate before ordering a replacement.

Q2: The eBay and surplus market descriptions label the T041 as "ABS" (absolute) — is the Serial A always absolute?

Yes. All A860-0346 Serial Pulse Coder A variants are absolute-type encoders.

The "ABS" label on surplus listings confirms this, distinguishing the Serial A from the purely incremental pulse coders (such as the A860-0300 series) that were used on earlier Fanuc motors.

Absolute means the encoder reports a complete position reference at power-up, maintained by battery backup, without requiring a mechanical reference return cycle.

This is a fundamental characteristic of the Serial A design and applies to T001, T041, T101, T141, and all other T-suffix variants in the A860-0346 range.

Q3: What CNC controller series are confirmed compatible with this encoder?

Digital servo Fanuc CNCs with a Serial Pulse Coder A interface: Series Zero-C and Zero-D (the key generation where S-series motors were prevalent), and Series 16, 18, and 21 Model A controls.

The Series 0-C and 0-D represent the majority of installations where this encoder is found — these controls and the S-series motors were the dominant Fanuc system specification during the late 1980s through much of the 1990s.

Series 15A is also compatible. Older non-digital-servo CNCs and later 0i-series controls (which use alpha or beta series encoders) are not compatible with this encoder type.

Q4: Is the A860-0346-T041 repairable, and if not, why?

The Serial Pulse Coder A is a sealed, monolithic assembly — the optical disc, bearing, signal processing board, connector, and red cap housing form an integrated unit that was not designed for field disassembly.

The encoder's mechanical precision depends on factory-controlled alignment of the optical disc to the bearing assembly; this alignment cannot be reliably reproduced in a service workshop environment.

For this reason, Fanuc does not supply repair parts for the A860-0346 series, and reputable service providers offer test and exchange services rather than component-level repair. Exchange with a tested, warranted unit is the practical service route.

Q5: What is the diagnostic process when the machine shows a Serial Pulse Coder A communication alarm?

First, check the encoder feedback cable for physical damage — a bent pin at the encoder connector or amplifier end is the most common root cause of serial communication faults and is often overlooked. Inspect and clean both connectors.

Next, check the machine's battery voltage — a low battery does not directly cause communication alarms, but it indicates a maintenance deficit that may be accompanied by other fault conditions. Swap the encoder cable with a known-good cable from another axis if available.

If the alarm persists after cable and connector inspection, remove the motor and inspect the red cap retaining fasteners and seal — coolant ingress around a degraded seal contaminates the encoder disc and produces the same communication fault pattern. If no physical cause is found, the encoder requires replacement.
