Fanuc A860-0346-T141 | Serial Pulse Coder A — 40,000P Absolute, 19-Pin Connector, Red Cap, Fanuc AC 0S / 5S / 10S / 20S / 30S Servo Motors

Overview

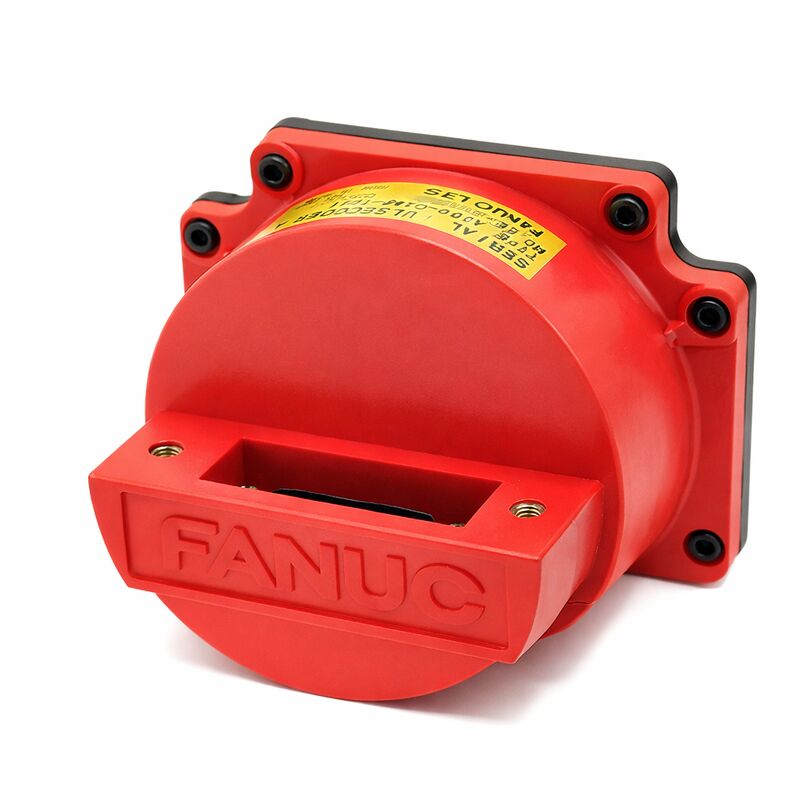

The Fanuc A860-0346-T141 is the 19-pin Serial Pulse Coder A — the circular MS-connector variant within the A860-0346 encoder family for Fanuc's S-series AC servo motors.

It carries the same 40,000 ppr absolute Serial A feedback architecture as the T101 and other members of the A860-0346 family, and fits the same motor range (0S through 30S), but its defining feature is the 19-pin MS-type circular connector that distinguishes it at the cable interface from the T101 (which uses a different connector configuration) and the T001 (which uses a D-Sub).

The 19-pin connector count on the T141 is notable. Earlier discussions in the CNC service community noted that A860-0346 variants with 19-pin MS connectors indicated absolute (as opposed to incremental) encoder types — a useful identification heuristic for field engineers encountering unknown encoder installations on red cap motors.

The 19-pin count accommodates the additional signal lines required for the serial absolute communication protocol beyond what a simpler incremental quadrature encoder would need.

This encoder is confirmed to be related to the T101 — both carry the Serial A absolute protocol, the same motor compatibility range, and the same A290-0561-V572 alternative part number.

The relationship between T101 and T141 within the same family is primarily in the connector type and any minor mechanical mounting differences that led Fanuc and machine builders to specify one variant over the other for particular motor configurations or machine installations.

Both encoders interface with the same C-series amplifiers and digital servo CNCs.

The T141 has been supplied with cable and plug included in some market channels, making it a complete ready-to-install assembly rather than a bare encoder body — a practical service advantage when the original cable is also damaged and requires replacement alongside the encoder.

Key Specifications

The 19-Pin Connector — A Field Identification Tool

For service engineers maintaining older Fanuc-controlled machine tools, the connector pin count on A860-0346 series red cap encoders serves as a useful field identifier. CNC specialists have noted that 19-pin MS connectors on this encoder family indicate absolute feedback types, while 17-pin connectors indicate incremental types.

This heuristic is useful when documentation is missing or illegible — counting the pins on the encoder connector can rapidly confirm whether the installation requires a reference return at power-up (incremental) or retains absolute position (absolute/serial A).

The T141's 19-pin circular connector makes this identification unambiguous on machines where it is installed.

Any replacement encoder for a T141 installation must also carry a 19-pin circular connector to mate with the existing motor-side cable; fitting a different connector variant requires cable work before the encoder can be installed.

C-Series Amplifier Compatibility

The A860-0346-T141 works with Fanuc's C-series servo amplifier generation — the amplifiers that were current during the S-series motor era.

The C-series amplifiers require a Serial Pulse Coder A interface card to communicate with this encoder.

When replacing or maintaining amplifiers on machines with T141 encoders, the replacement amplifier must retain this Serial A capability.

Later amplifier generations (alpha series servo modules, A06B-6096 FSSB series) use entirely different encoder protocols and cannot communicate with the Serial A encoder type.

FAQ

Q1: How does the T141 differ from the T101 within the A860-0346 family?

Both T141 and T101 are 40,000 ppr Serial A absolute encoders for the same 0S through 30S motor range, both share the alternative part number A290-0561-V572, and both fit C-series amplifiers and the same CNC generation.

The key difference is the connector: the T141 uses a 19-pin MS-type circular (Cannon) connector, while the T101 uses a different connector configuration.

This mechanical difference determines which cable assembly mates at the motor end.

In a replacement scenario, the T141 can only directly substitute for another T141 installation; fitting a T101 in a T141 installation (or vice versa) requires cable adaptation at the motor-side connection.

Q2: Is the 40,000 ppr resolution of the Serial A limiting for precision machining?

In practice, the 40,000 ppr resolution of the Serial A encoder — combined with Fanuc's flexible feed gear function on the digital servo CNC — supports detection units down to 1µm or better depending on the machine's ball screw pitch and feed gear parameters.

For the S-series motors' typical applications in the 1980s through 1990s, this was entirely adequate for the machining tolerances those machines were designed to hold.

The resolution is not a precision limitation for the motor generation it was designed for; the machine's mechanical accuracy (guideways, ball screw quality, thermal behaviour) is the practical limiting factor long before encoder resolution becomes relevant.

Q3: The T141 is sometimes described as shipped with cable and plug — what does this mean for ordering?

Some suppliers provide the A860-0346-T141 as a complete assembly including the encoder body and a pre-terminated cable with the 19-pin circular connector fitted — a ready-to-install unit.

This is particularly useful when the original encoder cable is also damaged (from the same fault event that caused the encoder failure, or from wear at the connector).

Confirming whether the supplier's stock includes the cable assembly or the bare encoder only is worth doing before ordering, as a bare encoder may require a separate cable procurement if the existing cable is also unserviceable.

Q4: What CNC alarm codes indicate a Serial A encoder fault on a machine with this encoder?

On compatible Fanuc CNCs (Zero-C/D, 16A, 18A, 21A), Serial Pulse Coder A faults typically generate alarms in the SV360-range: SV-360 indicates Serial Pulse Coder A communication failure on a specific axis.

Alarm SV-361 and SV-362 indicate related fault conditions.

These alarms may be intermittent in early failure stages — appearing on cold starts or after vibration events before becoming permanent.

Persistent SV-360 alarm on one axis, combined with normal operation on other axes, strongly suggests an encoder or cable fault on the alarming axis. Start the diagnosis at the connector rather than the encoder body.

Q5: Can the A860-0346-T141 be repaired rather than replaced?

The consensus among Fanuc CNC service specialists is that Serial A encoders in the A860-0346 family are not practically repairable.

The optical disc, bearing assembly, signal processing electronics, and housing are integrated without access provisions for component-level repair.

Third-party services occasionally advertise repair capability for these encoders, but the results are inconsistent — a repaired encoder that fails again on the machine causes a second machine-down event and additional unplanned costs.

The preferred service route is exchange with a tested, warranted replacement unit.

Where a faulty T141 is submitted to a service provider, testing to confirm the fault and providing an exchange unit from a separate tested stock is the standard offering, not component-level repair of the original unit.
