Fanuc A860-0360-T061 | Alpha αA64 Absolute Pulse Coder — 64,000P, D-Sub Interface, Fanuc Alpha AC Servo Motors

Overview

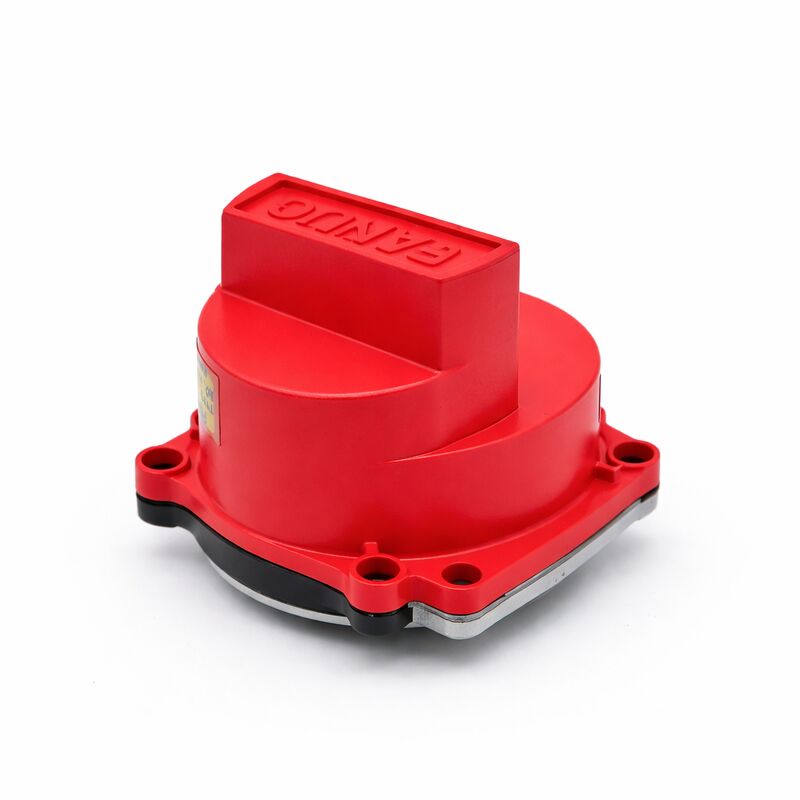

The Fanuc A860-0360-T061 is the D-Sub interface variant of the αA64 (64K ppr) absolute pulse coder within Fanuc's A860-0360 alpha encoder family.

All members of the A860-0360 range share the same fundamental encoder architecture — 64,000 ppr absolute serial feedback for alpha series AC servo motors — but differ in their connector style and cable configuration.

The T061 variant is defined by its D-Sub connector, which determines the cable assembly that mates at the encoder end of the motor's feedback wiring.

Within the broader A860-0360 family, multiple connector variants exist because Fanuc and machine builders specified different connector standards for different motor and installation configurations across the alpha motor generation's production run.

The T001 uses a 15-pin flat male plug; the T011 uses a 15-pin flat plug with internal supercapacitor backup; the T061 carries a D-Sub style connector — all serving the same encoder function, all compatible with the same CNC generation, but each requiring the specific cable and connector combination that matches the T-suffix for physical installation.

An important note confirmed by multiple specialists in the alpha encoder field: the new flat version connector T-variants are also compatible with older installations.

This means a T001 with its flat 15-pin plug may be fitted in a T061 D-Sub installation with appropriate cable adaptation, and the flat profile version can serve the older D-Sub interface where older-stock T061 units are unavailable.

The αA64 absolute encoder provides complete position reference at every power-up — no reference return cycle is needed when the machine restores from a planned shutdown, provided the amplifier's battery backup has maintained the stored position count through the power-off period.

The 64K ppr resolution is well suited to the alpha motor range for which it was designed, delivering the position update density needed for stable velocity control across the motor's rated operating speed range.

Key Specifications

D-Sub Connector in the Alpha Motor Ecosystem

D-Sub connectors — the familiar trapezoidal multi-pin connector type — were widely used in industrial electronics throughout the era that Fanuc's alpha servo motor generation was produced.

They offered a well-understood interface standard with good mating security and were supported by a broad range of pre-made cable assemblies in various lengths.

The A860-0360-T061's D-Sub connector at the encoder body directly accepted the D-Sub socket at the motor-end of the encoder feedback cable, with no adapter required.

For machines still in service with the original D-Sub cable assemblies, the T061 is the straightforward direct replacement — plug in, no wiring modification.

For machines where D-Sub cable assemblies have been replaced or adapted over years of maintenance, verifying the current encoder-end cable connector before ordering avoids the surprise of receiving an encoder whose connector does not match the installed cable.

Absolute Position Retention and Battery Dependency

Like all αA64 variants, the T061's absolute position capability depends on battery backup in the servo amplifier to maintain the multi-turn position count during machine power-off. The encoder itself reports its within-one-revolution angular position at any time; the amplifier accumulates this data into a full multi-turn absolute count and stores it in battery-backed SRAM.

A healthy battery means the axis position display on CNC power-up matches the actual mechanical position exactly. A failed or discharged battery means the count is lost, and a reference return is necessary.

Battery health monitoring is the first-line maintenance action for any machine with αA64 absolute encoders.

The CNC generates a BAT alarm when battery voltage falls to the warning threshold — at this point, replace the battery before the next planned power-off.

Replacing the battery while the machine is energised is the safest approach; the encoder's absolute data remains intact because the amplifier's supply stays uninterrupted through the battery change.

FAQ

Q1: The "new flat version is also compatible with old ones" — what does this mean in practice for the T061?

It means that a newer-production αA64 encoder with a flat 15-pin male plug connector (such as the T001 or T011 revision) can physically mate with the older D-Sub cable assembly used by the T061, with appropriate cabling.

In practice, a service provider can supply a T001-connector encoder with an adapter that converts the flat 15-pin output to a D-Sub socket at the motor-cable side, preserving the existing cable run.

This backward compatibility is a Fanuc-confirmed characteristic and is useful when T061-specific stock is unavailable.

Q2: Can the A860-0360-T061 be used with FSSB-equipped CNC controls such as 16i or 18i?

No. The αA64 A860-0360-T061 is an alpha series encoder designed for the first-generation alpha motor's serial feedback interface used with Series 15/16/18/21 Model A controls. The FSSB (Fiber Servo Serial Bus) interface found on 0i, 16i, 18i, and 21i controls is designed for alpha i series encoders (A860-2000/2020 series BiA types).

The serial protocol, physical interface, and motor ID handshake are all different between the alpha and alpha i encoder generations.

A machine retrofit from alpha to alpha i motors would require both motor and encoder replacement.

Q3: How is the D-Sub connector's condition assessed before installing a surplus T061?

Inspect all pins in the D-Sub housing for bending, breakage, and corrosion. Even one bent pin can cause intermittent encoder communication alarms — sometimes only at certain temperatures or vibration levels, making the fault difficult to diagnose.

Check the D-Sub housing itself for cracks at the strain relief. The latching screws that secure the mating cable connector should have functional threads; rounded-off latch threads are a common result of in-service mishandling and allow the cable connector to vibrate loose during machine operation.

If any of these issues are present, either source a different surplus unit or have the connector replaced before installation.

Q4: What is the typical failure mode for the αA64 T061, and how long do these encoders typically last?

Bearing wear is the most common age-related failure. The encoder bearing supports the optical disc assembly and the encoder shaft coupling; as it wears, the increasing radial play introduces signal noise in the A/B quadrature outputs and eventually causes intermittent or permanent encoder alarms.

Contamination from coolant mist, oil aerosol, or swarf ingress through the motor shaft seal also degrades the optical disc, producing reduced signal amplitude that the amplifier detects as a communication fault.

Service life varies widely with operating conditions; encoders on motors running 24/7 in heavy machining environments age faster than those on occasional-use equipment. Decades of service is not unusual for well-maintained machines.

Q5: Is repair of the A860-0360-T061 available, and under what circumstances?

The A860-0360-T061 is generally considered non-repairable in the conventional sense — the optical disc, bearing, and signal electronics are factory-assembled as a sealed unit without provision for component-level service access.

Some specialist providers offer limited repair capability focused on bearing replacement and optical disc cleaning under controlled conditions, but results vary and the repair itself risks introducing new faults.

For most operators, exchange with a tested surplus unit carrying a service warranty is the preferable and more predictable service route compared to attempting repair on an encoder of this generation.
