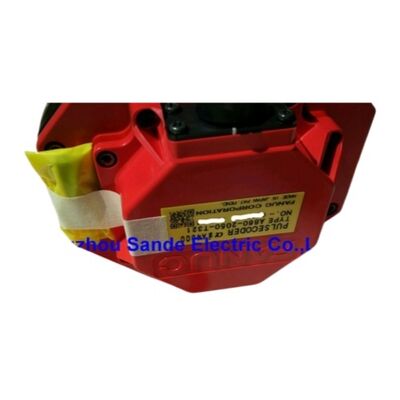

1 PC Used Fanuc A860-2001-T321 Encoder In Good Condition A8602001T321 A860-2001-T321

Fanuc A860-2001-T321 | Alpha i Absolute Pulse Coder — 16,000,000P, IP65, αi2–αi40 Series, CNC 0i-C/D · 16i/18i-B · 31i — Discontinued, Replaced by A860-2051-T321

Overview

The Fanuc A860-2001-T321 is the αiA16000 absolute pulse coder — the factory-fitted encoder for Fanuc's alpha i series AC servo motors, covering the full drive range from the compact αi2 through to the heavy-duty αi40 and all their speed-rated variants.

With 16 million pulses per revolution, it was the highest-resolution motor-mounted encoder in the alpha i generation when introduced, and its feedback density directly underpins the sub-micron position detection capability that 31i-A and 0i-D controlled machine tools achieve in precision machining operations.

The alpha i motor generation covers the majority of Fanuc-controlled CNC machine tools built from the early 2000s onward — machining centres, turning centres, five-axis machines, and large-format mills from the world's major machine builders.

Because of this, the A860-2001-T321 has the largest installed base of any encoder in the alpha i family.

Even after Fanuc discontinued active production in favour of the A860-2051-T321 replacement, machines carrying the original A860-2001-T321 continue to account for a substantial fraction of global CNC production capacity.

That installed base is what drives ongoing demand for tested replacement units from managed exchange pools.

The absolute position capability means no reference return is needed at machine startup — the CNC powers on and immediately knows every axis position, assuming the servo amplifier's battery has kept the multi-turn count intact through the power-off period.

This operational convenience is practically important in facilities where machine startup time matters: a machine with αiA16000 absolute encoders can begin production within seconds of power-on, while an equivalent machine with incremental encoders requires a reference return sequence before any axis can move.

The IP65 rating provides complete dust exclusion and protection against directed water jets — appropriate for the standard machining environment of coolant mist, swarf-laden air, and periodic cleaning.

The upgrade to IP67 on the replacement T321 is an improvement particularly relevant for machines with aggressive flood cooling or those cleaned with high-pressure water between jobs.

Key Specifications

16M ppr in Practice — Resolution Serving the Servo Loop

At 16 million pulses per revolution, the αiA16000 generates position update data at a rate that makes traditional encoder resolution limits effectively invisible to the servo loop. At 2000rpm — the rated speed of an αi22 motor — the encoder produces over 533 million quadrature edge counts per second. The CNC's servo card samples this data every 125µs (or faster on 31i-A systems) to compute velocity estimates.

The density of this data stream produces velocity estimates with negligible quantisation noise even at the slow feed rates used during precision cutting passes, where velocity loop quality translates directly into workpiece surface finish.

For the amplifier's flexible detection unit function, the 16M ppr resolution supports detection units down to 0.01µm — a positioning granularity finer than the mechanical repeatability of most machine tool transmissions.

This means the encoder is never the limiting factor in axis positioning precision; the machine's mechanical system is always what constrains achievable accuracy at the workpiece.

Discontinued Status — Replacement Path and Sourcing

Fanuc's official replacement is the A860-2051-T321, which doubles the resolution to 32M ppr and improves the environmental rating to IP67. For machines that carry the T321 operating within a correctly configured amplifier and CNC system, there is no functional deficiency that requires upgrading — the T321 continues to deliver full performance in its original system.

Upgrading to the T321 replacement is most compelling when rebuilding a motor that has suffered encoder damage, when the machine operates in environments where IP67 would be beneficial, or when the machine is being retrofitted with a current-generation CNC that can exploit 32M ppr resolution.

Testing of replacement A860-2001-T321 units should always be performed on a closed-loop alpha i motor test rig — driven at rated speed on a Fanuc 0i or 16i/18i control — to verify serial communication, absolute count stability, and alarm-free operation before installation on a production machine.

FAQ

Q1: Does the A860-2051-T321 replacement install directly without CNC parameter changes?

Yes, in most configurations. The αiA32000 T321 replacement uses the same physical connector and motor coupling as the T321 original. The servo amplifier automatically identifies the encoder type through the FSSB serial handshake at power-up and adjusts its internal resolution reference accordingly.

The CNC servo parameters for the axis do not require manual changes for the resolution increase — the amplifier handles the translation transparently. Execute a full reference return after installation to re-establish the absolute position datum with the new encoder.

Q2: What alarm codes indicate the A860-2001-T321 has failed?

The most common alarm is SV0360 (Serial communication error) or SV0368 (Encoder feedback error) on the affected axis.

These appear at power-up or during operation. Less common is SV0362 (Count miss), which indicates intermittent data loss — often associated with cable damage or a degraded encoder rather than complete failure.

Always inspect the encoder feedback cable and its connectors before condemning the encoder body.

A cable fault at the motor-side connector produces identical alarm patterns to an encoder failure.

Q3: How does the IP65 rating differ from IP67 in practical machining centre use?

IP65 protects against dust ingress and directed water jets from any angle — adequate for standard coolant mist and machine wash-down procedures.

IP67 adds protection against temporary immersion up to 1 metre for 30 minutes, providing meaningful additional margin in machines with heavy flood coolant where coolant can pool around motor housings, or in machines routinely cleaned with high-pressure water.

For the majority of machining centre installations, IP65 performs without issue. The IP67 upgrade on the replacement encoder is most valuable for aggressive coolant environments.

Q4: What is the battery management requirement for the A860-2001-T321's absolute position retention?

The encoder's multi-turn absolute count is stored in battery-backed SRAM in the servo amplifier, not in the encoder itself. The amplifier battery must be maintained above the BAT alarm threshold to prevent position data loss during machine power-off.

When a BAT alarm appears on the CNC, replace the battery while the machine remains powered — this maintains the SRAM supply through the battery swap. Replacing the battery with the machine powered down risks losing the position count if the battery is already exhausted.

Most alpha i amplifiers use standard 3.6V lithium batteries; verify the correct part number from the machine's maintenance documentation.

Q5: Can the A860-2001-T321 function with CNC controls newer than the 31i-A generation?

The αiA16000 encoder communicates via Fanuc's alpha i serial encoder protocol. Fanuc's 30i-B, 31i-B, and 0i-F generation controls are designed for the alpha i-B motor/encoder system (A860-2051-T321 and beyond) and their associated drive architecture.

While the encoder protocol may be similar, fitting a T321 original to a machine specified for the newer encoder series is not a supported configuration and may produce compatibility issues at the servo amplifier level.

The T321 is the correct encoder for systems specified with the T321 generation amplifiers and CNC controls (0i-C/D, 16i/18i-B, 31i-A).
