6ES7 134-4FB01-0AB0 Genuine New 6ES71344FB010AB0 Siemens Electronics Module

6ES7134-4FB01-0AB0 Genuine New Siemens Electronics Module

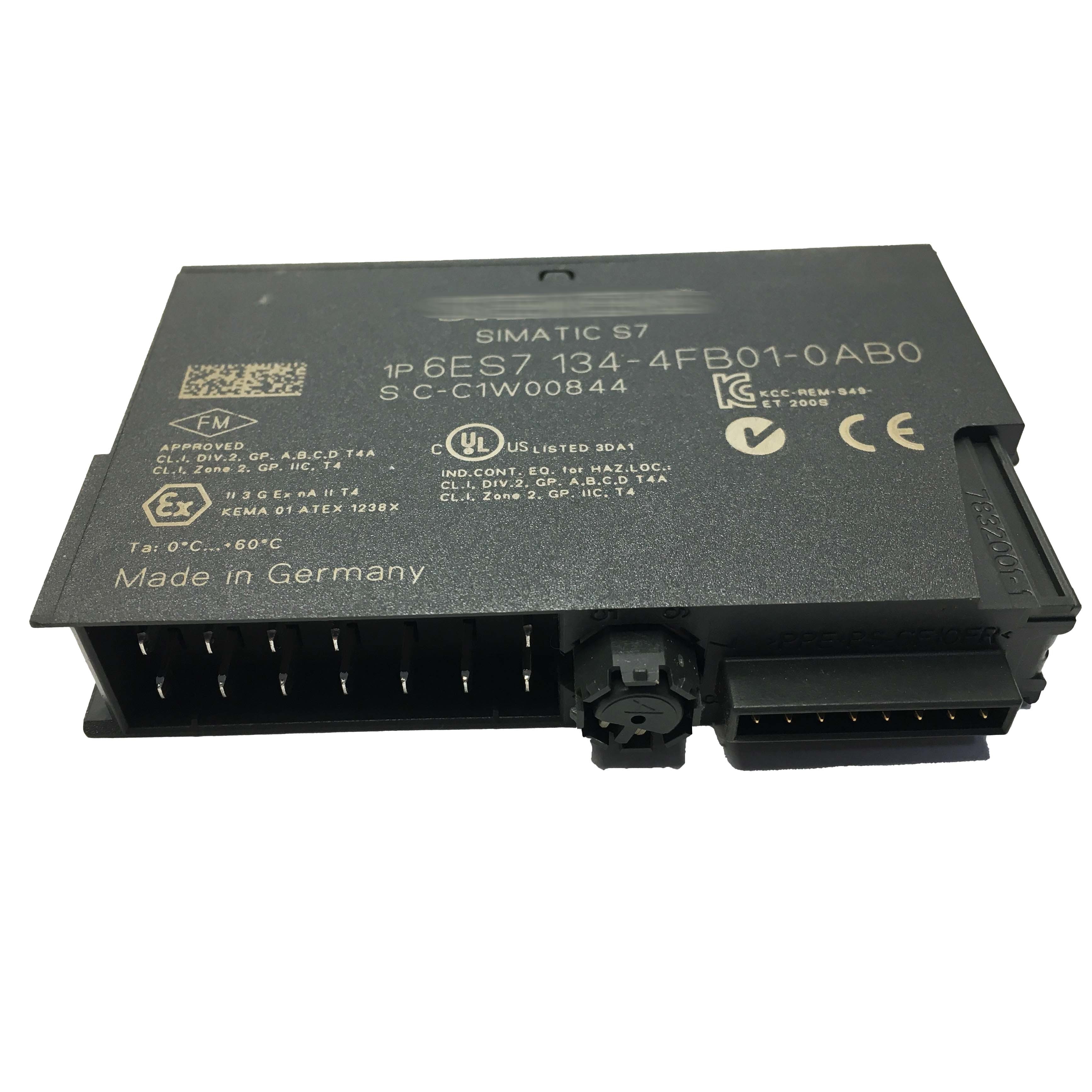

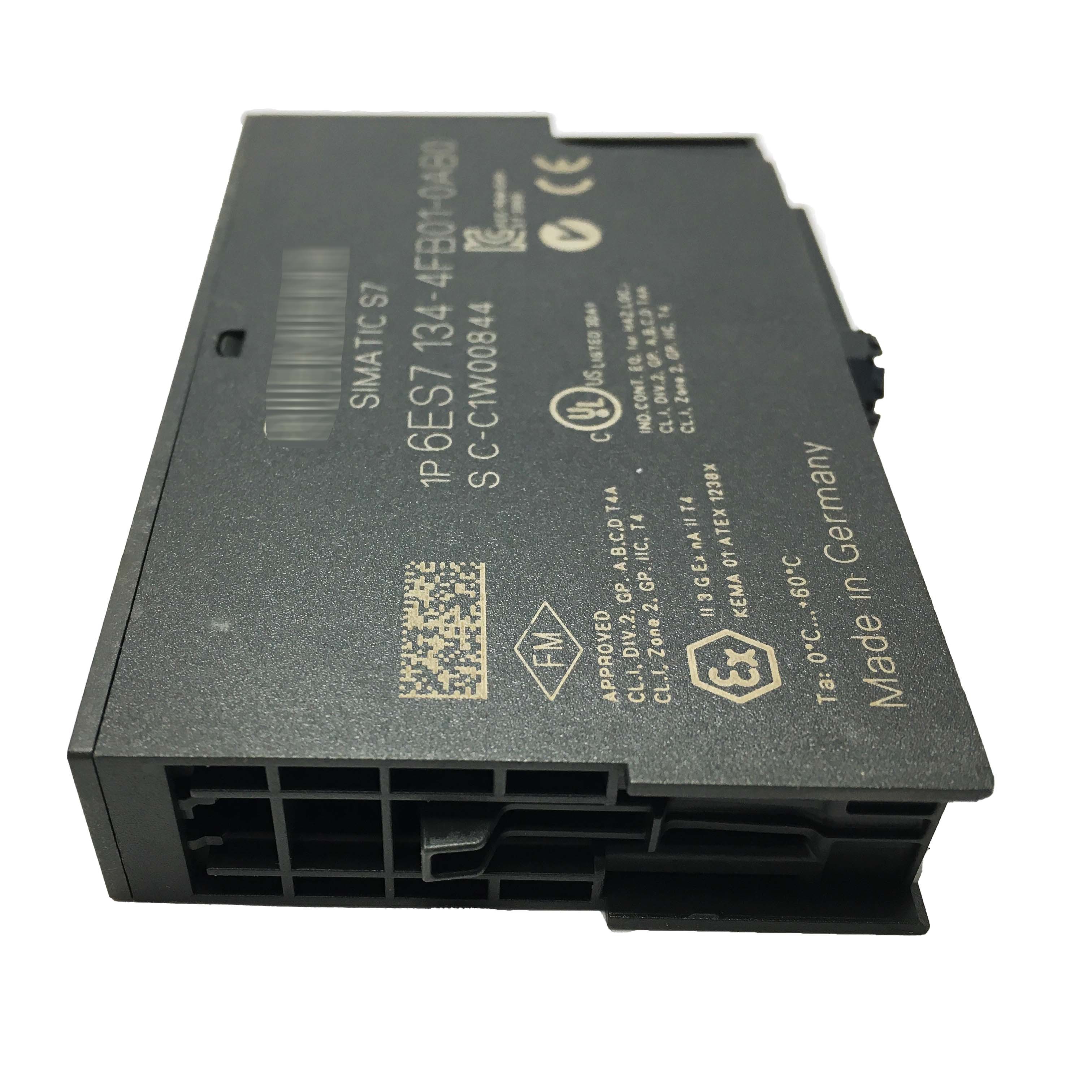

The Siemens 6ES7134-4FB01-0AB0 electronics module is designed for precise analog signal acquisition within the SIMATIC ET 200S distributed I/O system. It features two standard analog input channels and supports multiple voltage ranges, including ±10 V with 13-bit plus sign resolution, ±5 V with 12-bit plus sign resolution, and 1…5 V with 12-bit resolution, providing flexibility for a wide range of industrial measurement tasks.

With a compact 15 mm module width, this unit enables high I/O density and efficient use of control cabinet space. A 65 ms cycle time per channel ensures consistent and reliable signal processing in continuous industrial operation. For enhanced diagnostics and system safety, the module is equipped with an SF LED group fault indicator, allowing quick visual identification of fault conditions during operation.

Key Features & Advantages

• High-precision analog signal acquisition for stable and repeatable process control

• Supports multiple analog input types, enabling flexible system design

• Fast conversion and response time, ideal for dynamic industrial processes

• Seamless integration with SIMATIC ET 200S systems

• Compact electronics module design, optimized for space-saving control cabinets

Technical Specifications

Typical Applications

• Process automation systems

• Factory automation and production lines

• Distributed I/O systems with ET 200S

• Energy, water treatment, and chemical industries

Application Precautions

1. Environmental Conditions: Ensure the module operates within the specified ambient temperature, humidity, and vibration range. Excessively high or low ambient temperatures may affect its measurement accuracy and long-term stability.

2. Power Quality: The power supply to the module should be stable and clean. Drastic voltage fluctuations or high-frequency noise may interfere with the module's normal operation.

3. Signal Cable Laying: Analog signal cables should be kept as far away as possible from strong interference sources such as power cables and inverter output cables. If multiple cables cross each other, they should cross perpendicularly whenever possible. Cable shielding should be treated according to relevant standards to avoid creating ground loops that introduce interference.
