Used FCA65V-P1 Mitsubishi System host FCA65VP1

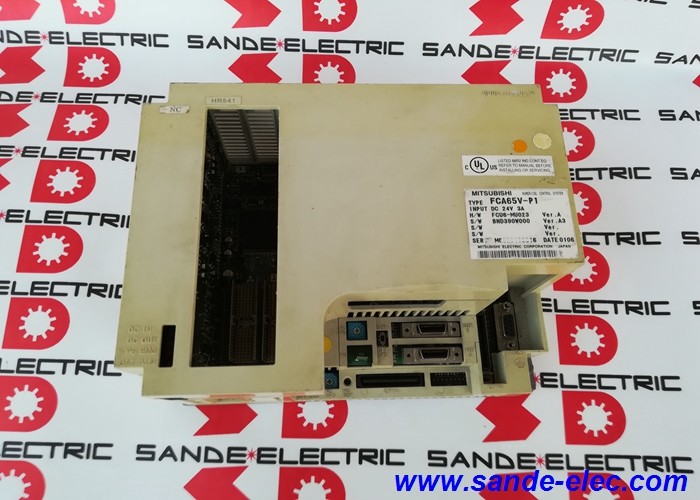

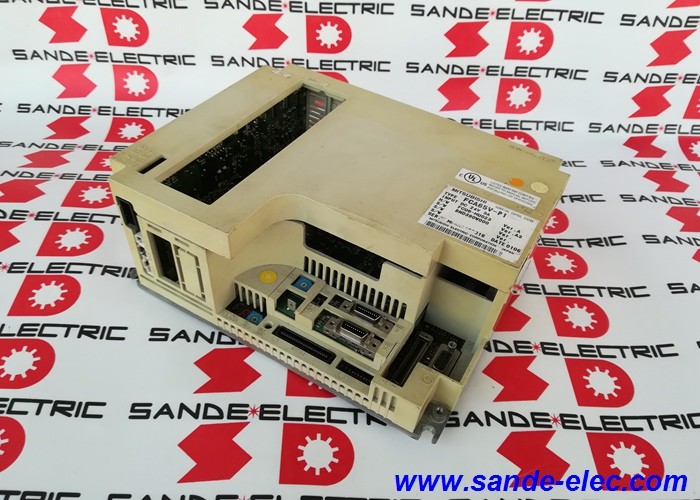

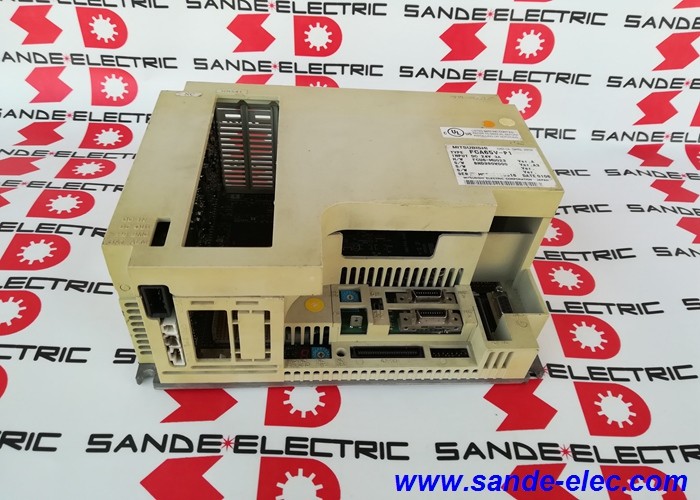

FCA65V-P1 | Mitsubishi MELDAS 65V CNC System Host Board — Main Host PCB / MELDAS M65V Control Unit / Legacy CNC Spare

MELDAS 65V — The CNC System the FCA65V-P1 Serves

The MELDAS 65V (M65V) was part of Mitsubishi Electric's MELDAS 60 Series CNC controller family — a generation that also included the M64, M64A, M65, and M66. The MELDAS 60 series was used in machining centres and lathes across a wide range of machine tool builders including Mazak (where MELDAS controls appeared in MAZATROL configurations), DMG Mori, Citizen, and many others.

Within each MELDAS CNC unit, the system host board is the central processing assembly. It manages the NC programme execution, coordinates servo and spindle axis control through the optical communication network, handles the internal bus to auxiliary boards and I/O units, and maintains the operator interface through the display connection. A failed system host board typically produces a complete NC unit failure — the machine stops and will not restart regardless of other components' health, because the host board is what everything else depends on.

The "65V" designation in the part number identifies the board as the host for the MELDAS 65V CNC variant specifically. The M65V and M65 are related but distinct CNC systems — the 65V incorporated enhancements to the servo communication architecture over the standard M65. The FCA65V-P1 is matched to the 65V variant; substituting the host board for a different MELDAS variant (M65, M64, M66) would not be functionally compatible.

Key Specifications

Role in a MELDAS 65V System

A MELDAS 65V CNC system consists of several interconnected boards and units:

• System host (FCA65V-P1): The main CPU and programme control assembly — this unit
• Servo axis boards: Axis control for each NC axis communicating via optical SSCNET
• I/O boards and base I/O units: Machine interface signals (limit switches, tool changers, coolant)
• Power supply unit: 24VDC internal power
• Display and keyboard: Operator panel connection

When the system host fails, the entire system stops because programme execution and inter-board coordination originate from this board. Replacement requires the exact MELDAS 65V matching part — it stores system-specific parameters and communicates with other boards using the established MELDAS 65V protocol.

Application Scenarios

Machining centre with MELDAS M65V control: A multi-axis machining centre using a MELDAS M65V NC unit develops a system host fault. The NC unit powers on but fails to boot or produces a host alarm. Replacing the FCA65V-P1 and re-loading the NC parameters (from backup media or machine backup documentation) returns the machine to service.

Lathe with MELDAS M65V spindle and axis control: Similar to the above — the host board failure stops the NC. System host replacement, followed by parameter restore and servo re-initialisation, restores operation.

Planned spare stock for MELDAS M65V fleets: Production environments with multiple machines running MELDAS M65V controls maintain an FCA65V-P1 as a critical spare — host board failure is a production-stopping event, and having an on-hand replacement eliminates wait time for sourcing.

FAQ

Q1: Is the FCA65V-P1 compatible with the MELDAS M65 (without the V)?

No. The M65 and M65V are distinct CNC systems with different host board architectures. The FCA65V-P1 is specific to the M65V — the V designation indicates a different servo communication design over the standard M65. Substituting an M65 host board in an M65V system (or vice versa) would not produce a functioning system.

Q2: What parameters must be saved before replacing the FCA65V-P1?

Before replacement, all NC parameters, machine parameters, servo parameters, and machining programmes stored in the NC unit must be backed up — typically to a memory cassette, RS-232C serial backup, or other external storage, depending on what is available and functional on the machine. The replacement host board will typically be uninitialised; all parameters must be restored before the system can operate. This is the most critical step in host board replacement — a machine without its parameter backup cannot be commissioned without the machine builder's original specifications.

Q3: Does the FCA65V-P1 require any special handling?

Yes — MELDAS system host boards are electrostatic-sensitive devices (ESD). Handle with appropriate ESD precautions: grounded wrist strap, ESD mat, and anti-static packaging during transport and storage. Do not touch board connector pins or components directly. Keep the board in its ESD bag until immediately before installation.

Q4: What alarms on the MELDAS M65V indicate a host board failure?

MELDAS system-level alarms indicating CPU or host failure — such as "System Alarm," "NC CPU Error," or alarms that prevent normal NC initialisation — typically point to the host board or its associated memory. Alarms appearing before the NC reaches its ready state, particularly those that prevent servo initialisation or display basic system error codes, are consistent with host board faults. Consult the MELDAS 65V alarm manual for the specific alarm codes relevant to the installed machine configuration.

Q5: What programming or test equipment is required to commission the replacement FCA65V-P1?

After installation, the MELDAS system requires parameter restoration using either the NC unit's internal restore function (loading from memory cassette or backup media) or an external PC with MELDASMAGIC or equivalent software via RS-232C. The machine tool builder's service manual documents the commissioning sequence — parameter order, servo parameter setting, absolute position initialisation — that must be followed after host board replacement.
