One New AB CompactLogix 5370 Controller 1769-L16ER-BB1B In Box

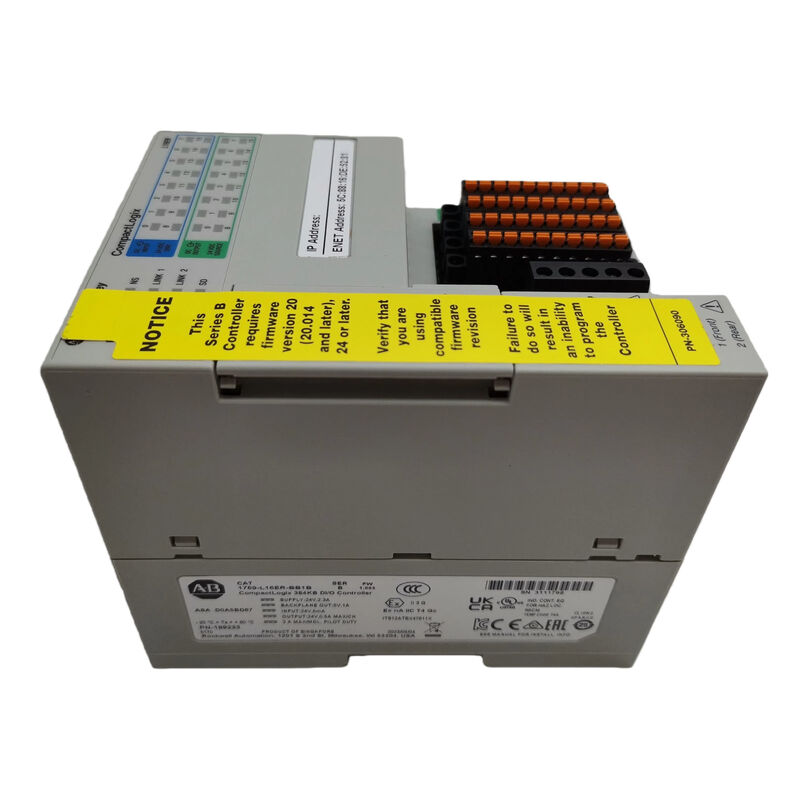

Allen-Bradley 1769-L16ER-BB1B CompactLogix L16 Controller

Overview

The 1769-L16ER-BB1B is a CompactLogix 5370 L1 controller designed for compact EtherNet/IP machine control.

Rockwell identifies it as a CompactLogix L16 controller with 384 KB user memory, embedded 16 digital inputs and 16 digital outputs, dual Ethernet ports with DLR capability, up to 6 local expansion modules, and a 1 GB SD card shipped with the controller.

Rockwell’s installation instructions also show that the controller uses a 24 VDC nominal power supply with an input range of 10…28.8 VDC, and that the USB port is intended for temporary local programming rather than permanent connection.

Technical Data

Application Value

The 1769-L16ER-BB1B is well suited to compact machine cells, packaging systems, conveyors, modular OEM equipment, and small EtherNet/IP architectures where embedded I/O and dual-port Ethernet are more useful than a larger rack controller.

Rockwell’s CompactLogix 5370 L1 literature specifically positions the L1 family for small to mid-size applications that need lower axis counts, compact footprint, and integrated DLR network capability.

That makes this controller especially practical in machines where panel space is limited but Logix-based control and EtherNet/IP integration are still required.

Its value in maintenance work is equally strong.

When a machine was originally designed around the L16ER-BB1B footprint, embedded I/O, and POINT Bus expansion concept, replacing it with the same model usually preserves the cabinet layout, network structure, and project assumptions more cleanly than moving to a different controller class.

This is an engineering inference based on the published embedded-I/O, 6-module expansion, and DLR-enabled architecture of the controller.

Replacement and Selection Perspective

For replacement work, the 1769-L16ER-BB1B should be matched by embedded I/O type, memory class, Ethernet layout, and local expansion scale, not just by the CompactLogix family name.

In practical systems, the details that matter most are the 16 sink inputs / 16 source outputs, 384 KB memory, dual-Ethernet DLR design, and 10 to 28.8 VDC power range.

Matching the same controller model is usually the safest way to avoid wiring, network, and commissioning changes.

FAQ

Q1: What kind of controller is 1769-L16ER-BB1B?
It is a CompactLogix 5370 L1 controller with embedded digital I/O, dual Ethernet ports, and 384 KB user memory.

In practical terms, it is a compact Logix controller intended for small to mid-size EtherNet/IP machines rather than large rack-based systems.

Q2: What applications fit it best?
It fits compact automation systems such as conveyors, packaging machines, modular skids, and machine cells where panel space is limited but Logix programming and EtherNet/IP still matter.

Rockwell’s L1 controller literature explicitly places the family in small to mid-size applications with lower axis and I/O counts.

Q3: Why does DLR matter on this controller?
DLR helps improve resiliency in ring-topology EtherNet/IP networks. In practical machine installations, that can simplify device layout and reduce the effect of a single lost network path.

Q4: Why is the embedded I/O configuration important?
Because the embedded 16 DI / 16 DO arrangement is part of how the original machine was wired.

Replacing the controller with the wrong I/O type or output style can create immediate field-wiring and startup issues.

Q5: What should be checked before ordering?
Check the installed part number, confirm the 384 KB memory class, verify the 16 sink inputs / 16 source outputs, and make sure the machine uses the same 24 VDC power and DLR-capable dual-Ethernet layout.
