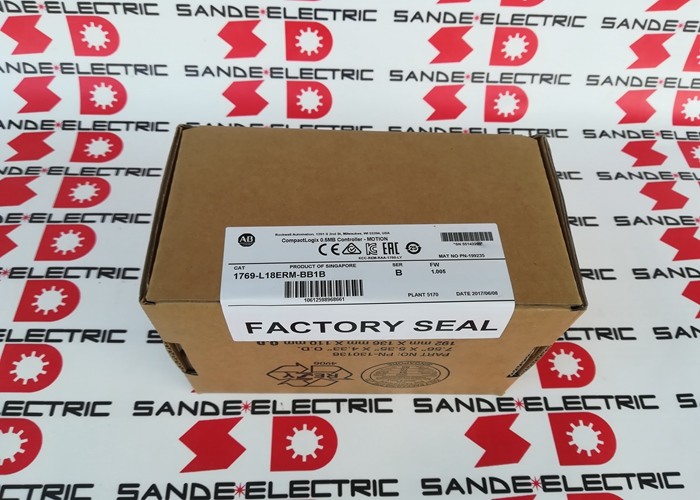

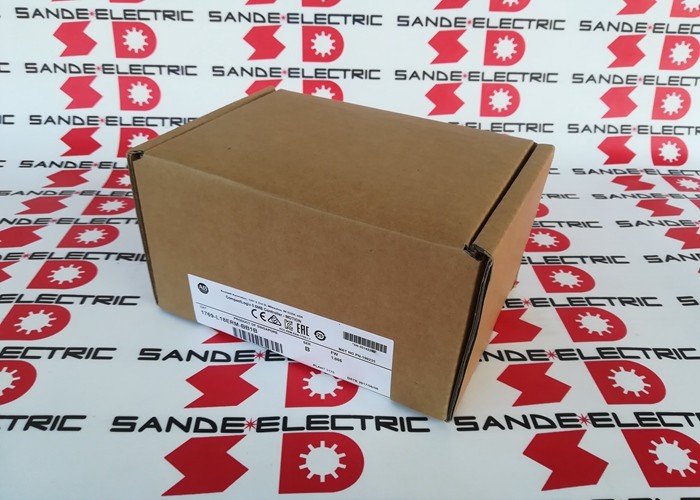

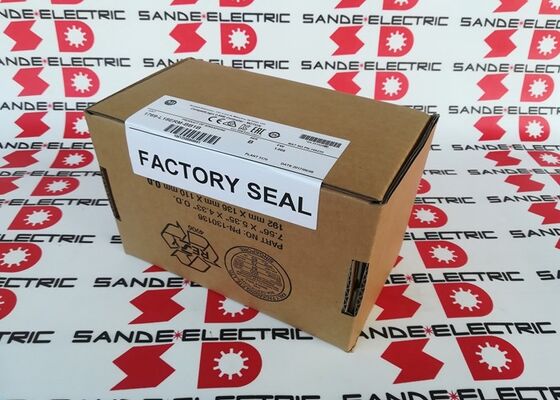

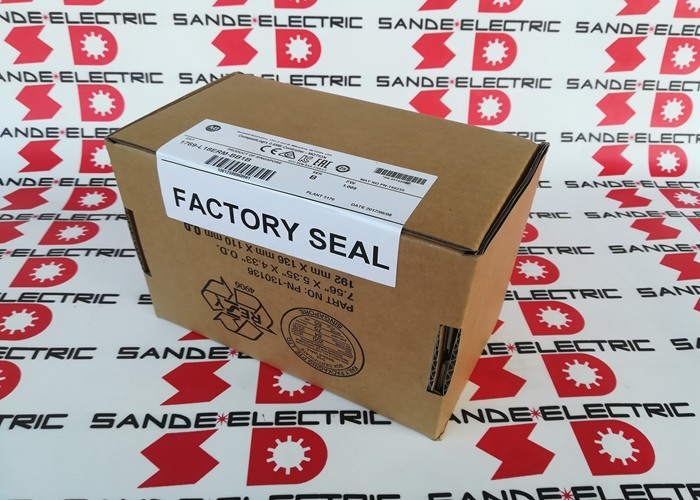

One New Allen Bradley 1769-L18ERM-BB1B COMPACT LOGIX Ethernet Controller

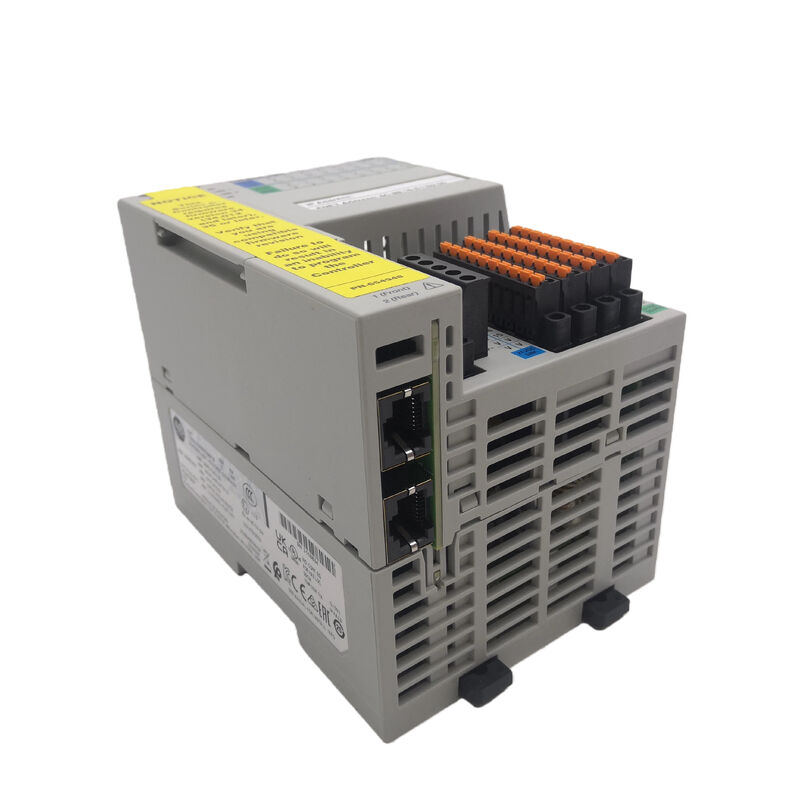

Allen-Bradley 1769-L18ERM-BB1B CompactLogix Controller

Overview

The 1769-L18ERM-BB1B is a CompactLogix 5370 L1 controller built for compact machine control where embedded I/O, EtherNet/IP networking, and integrated motion need to sit in one small controller platform.

Rockwell and distributor references describe this model with 512 KB user memory, dual Ethernet with Device Level Ring capability, 16 sink inputs, 16 source outputs, support for up to 8 Ethernet/IP nodes, and 2-axis CIP motion with kinematics.

It also uses the 1734 POINT I/O backplane for expansion, which places it in a different expansion class than the larger Compact I/O-based L2 and L3 controllers.

Technical Data

Application Value

This controller fits well in compact packaging systems, conveyors, material handling stations, OEM skids, and small Ethernet-based machine cells where a limited but capable Logix platform is the right fit.

The combination of embedded I/O, dual Ethernet, and 2-axis motion makes it especially practical in machines that need tight integration between basic sequencing and light motion control without moving to a larger controller family.

That application profile is an engineering inference drawn from the published memory, node, motion, and POINT I/O characteristics of the controller.

Replacement and Selection Perspective

For replacement work, the 1769-L18ERM-BB1B should be matched by embedded I/O type, POINT I/O expansion concept, Ethernet layout, and motion capability, not just by CompactLogix family name.

In practical systems, the important details are the 16 sink inputs / 16 source outputs, the L1 architecture, and the 2-axis CIP motion capability.

Matching the same controller usually preserves both the machine wiring and the project structure more cleanly than moving to another Logix class.

FAQ

Q1: What kind of controller is 1769-L18ERM-BB1B?
It is a CompactLogix 5370 L1 controller with embedded digital I/O, dual Ethernet, and integrated motion capability.

In practical use, it is aimed at compact machine control rather than large modular rack systems.

Q2: What applications fit it best?
It fits small to mid-size machines that need EtherNet/IP control, compact footprint, and light integrated motion.

This is an engineering inference based on the published 512 KB memory, 8-node EtherNet/IP scale, and 2-axis motion capability.

Q3: Why does POINT I/O support matter here?
Because this controller expands through the 1734 POINT I/O backplane, not through the larger Compact I/O expansion style used on some other CompactLogix models.

That affects how the machine is wired and how the controller fits into the original architecture.

Q4: Why is 2-axis CIP motion important?
Because it allows the controller to handle basic motion tasks directly over EtherNet/IP.

In practical machine design, that can reduce the need for a separate motion processor in smaller systems.

Q5: What should be checked before ordering?
Check the installed controller code, confirm the L1 / POINT I/O architecture, verify the 16 DI / 16 DO embedded I/O requirement, and make sure the application depends on the same 2-axis motion and dual Ethernet DLR layout.
