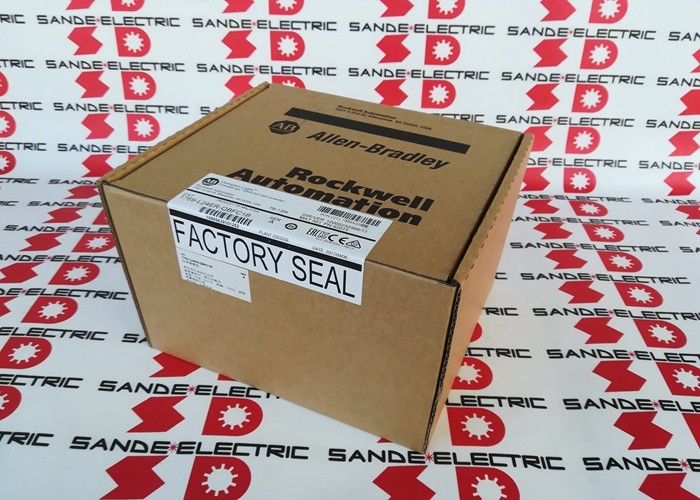

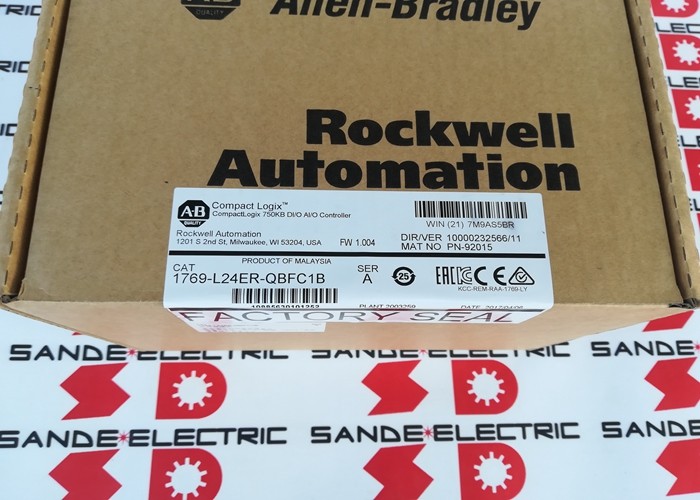

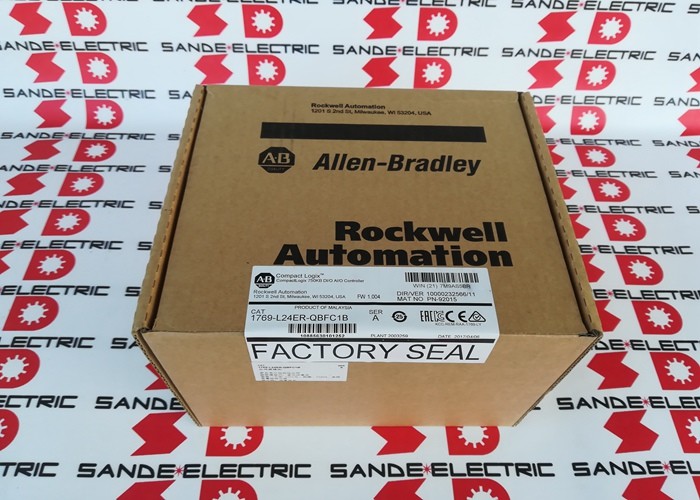

New and original Allen Bradley 1769-L24ER-QBFC1B 1769L24ERQBFC1B

Allen-Bradley 1769-L24ER-QBFC1B CompactLogix Controller

Overview

The 1769-L24ER-QBFC1B is a CompactLogix 5370 L2 controller intended for compact machine applications that need more onboard I/O variety than a basic embedded-digital controller can offer.

Rockwell configuration data and industrial product references describe it with 750 KB user memory, dual EtherNet/IP ports with DLR capability, 16 DC inputs, 16 DC outputs, 4 universal analog inputs, 2 analog outputs, 4 high-speed counters, and support for up to 4 local 1769 Compact I/O modules.

It also includes a 1 GB SD card, supports up to 2 GB, and uses a 24 VDC embedded power supply.

Technical Data

Application Value

This controller fits well in OEM skids, packaging equipment, compact process stations, machine cells, and automation panels where both digital and analog signals must be handled directly from the controller body.

Its strongest practical advantage is that it combines embedded digital I/O, analog I/O, high-speed counting, and dual Ethernet in one compact unit, which can reduce module count and simplify cabinet design.

That application fit is an engineering inference based on the published embedded I/O mix and local expansion limits of the controller.

Replacement and Selection Perspective

For replacement work, the 1769-L24ER-QBFC1B should be matched by embedded I/O mix, analog capability, Ethernet structure, and local expansion scale, not only by CompactLogix family name.

In practical terms, the important details are the 750 KB memory, the 16/16 digital I/O, the 4 AI / 2 AO analog structure, and the 4-module Compact I/O expansion limit.

Matching the same model is usually the safest way to preserve both field wiring and the controller’s role in the machine.

FAQ

Q1: What kind of controller is 1769-L24ER-QBFC1B?
It is a CompactLogix 5370 L2 controller with embedded digital and analog I/O, dual Ethernet, and local Compact I/O expansion capability.

Q2: What applications fit it best?
It fits compact machine systems that need onboard digital and analog handling without immediately adding separate analog modules.

That use profile is an engineering inference based on the controller’s published embedded I/O mix and compact scale.

Q3: Why are the analog channels important on this model?
Because the built-in 4 universal analog inputs and 2 analog outputs let the controller support mixed sensor and control-loop tasks directly.

In practical cabinets, that can reduce slot usage and simplify the hardware layout.

Q4: Why do high-speed counters matter here?
Because they allow the controller to handle fast digital pulse inputs without requiring a separate counting module for many compact applications.

This is an engineering inference based on the controller’s published 4 high-speed counters.

Q5: What should be checked before ordering?
Check the installed controller code, confirm the 750 KB memory class, verify the required digital and analog I/O mix, and make sure the machine uses the same 4-module local expansion and dual Ethernet DLR arrangement.
