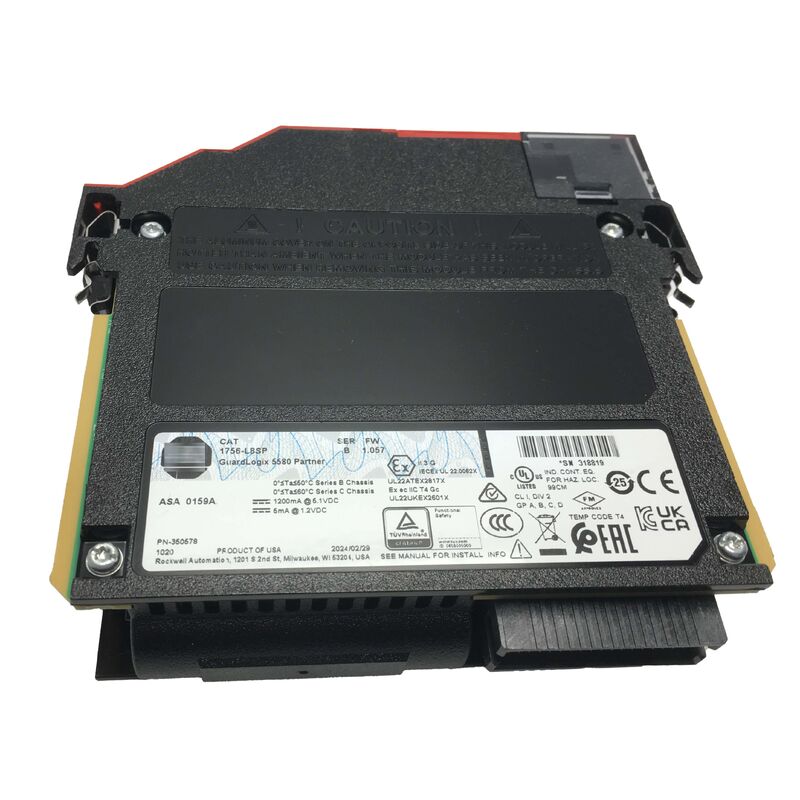

1756-L8SP AB GuardLogix5580 Partner Safety Controller Plc 1756L8SP New Sealed
Allen-Bradley 1756-L8SP | GuardLogix 5580 Safety Partner Controller
Catalog Number: 1756-L8SP
Manufacturer: Rockwell Automation / Allen-Bradley
Product Family: GuardLogix 5580 / ControlLogix
Controller Type: Safety Partner (Co-processor for SIL 3 / PLe)
Chassis: ControlLogix Series C
Enclosure: Open
Display: Yes
Safety Rating: SIL 3 / PLe / Category 4
Overview
The 1756-L8SP is the GuardLogix 5580 Safety Partner Controller — a dedicated co-processor module that forms the second half of a complete GuardLogix 5580 safety system. It cannot execute logic independently.
Its role is to work alongside a paired primary GuardLogix 5580 controller (such as the 1756-L81ES through 1756-L85ES) to provide the redundant safety execution channel required for SIL 3 and Performance Level e (PLe) rated safety systems.
In the GuardLogix 5580 architecture, safety logic is executed on both the primary controller and the safety partner simultaneously. The safety partner continuously compares its results with those of the primary. If there is a disagreement — if the two processors reach different conclusions from the same safety data — the partner triggers a safety fault that brings the system to its safe state. This 1oo2 (one-out-of-two) redundant execution model is the foundation of the SIL 3 / PLe safety architecture.
The 1756-L8SP installs in the slot immediately to the right of its paired primary controller in any ControlLogix Series C chassis. It is configured and programmed as part of the same Studio 5000 Logix Designer project as the primary controller — there is no separate programming tool or project for the safety partner. The safety program appears in the Studio 5000 project alongside the standard tasks, with the safety task automatically distributed across both processors.
Key Specifications
| Parameter |
Value |
| Catalog Number |
1756-L8SP |
| Manufacturer |
Rockwell Automation / Allen-Bradley |
| Product Family |
GuardLogix 5580 |
| Controller Type |
Safety Partner (co-processor, not standalone) |
| Safety Rating |
SIL 3 / PLe / Category 4 |
| Chassis Compatibility |
ControlLogix Series C (1756-A4, -A7, -A10, -A13, -A17) |
| Slot Position |
Immediately to the right of paired primary controller |
| Power Draw |
5 mA @ 1.2V DC; 1.2 A @ 5.1V DC |
| Power Dissipation |
3.5 W |
| Thermal Dissipation |
11.9 BTU/hr |
| Operating Temperature |
0 - 60°C (32 - 140°F) |
| Enclosure |
Open |
| Display |
Yes |
| Certifications |
CE, CSA, CUL, KC, NRTL, RCM, UL |
| Weight |
approx. 0.43 kg (0.94 lbs) |
The GuardLogix Safety Architecture
Rockwell Automation's GuardLogix system is described as the only true integrated safety controller — a system that executes both safety-rated and standard automation logic from a single software environment. This is a genuine differentiator.
Traditional safety architectures required a separate, dedicated safety controller and a dedicated safety programming tool alongside the standard PLC. GuardLogix eliminates this duplication.
The primary GuardLogix 5580 controller handles standard automation tasks (motion, process, discrete I/O) and the execution of safety tasks in its safety-rated memory partition. The 1756-L8SP serves as the independent verification channel for the safety partition.
When the primary controller completes a safety task execution, the safety partner verifies the result. The safety signature — a checksum of the safety program and data — must match on both processors. Any mismatch indicates a potential fault and results in a controlled transition to the safe state.
This paired architecture meets the requirements of IEC 61508 and ISO 13849-1 for SIL 3 and PLe applications respectively. The safety logic runs in the safety task partition on the primary controller, with safety memory sizes determined by the specific primary controller model used.
Installation and Configuration
The 1756-L8SP occupies a single chassis slot. The paired primary controller occupies the adjacent slot to the left. Together they occupy two slots.
The safety partner cannot be installed in any other position relative to its primary — the physical slot relationship is part of the hardware architecture.
Configuration of the 1756-L8SP is handled automatically within Studio 5000 Logix Designer when the primary GuardLogix controller project is created. The safety partner is added to the I/O tree of the project, its firmware must match the primary controller's firmware version, and the safety signature must be identical on both. These requirements are verified automatically during project download and validated at runtime.
A dedicated hardware reset button on the 1756-L8SP front panel allows the safety partner to be reset during power-up or restart sequences without interrupting the primary controller. This is significant in commissioning scenarios where repeated safety task resets are needed. The button has no effect during normal operation, preventing accidental resets.
Safety System Design Considerations
In SIL 3 applications, every GuardLogix 5580 controller requires exactly one 1756-L8SP safety partner. The partner module is a mandatory hardware element — a primary GuardLogix controller running without its partner is limited to SIL 2 capability. The safety partner is what elevates the system to SIL 3.
When designing safety systems using the 1756-L8SP, the safety function documentation must account for the safety partner's firmware compatibility, the chassis slot arrangement, the safety memory allocation on the primary controller, and the safety reaction time contribution of the controller pair. All of these parameters are established in the safety validation documentation required by IEC 61508 and ISO 13849-1 for the application's safety functions.
Frequently Asked Questions
Q1: Can the 1756-L8SP be used with any GuardLogix 5580 primary controller, or only specific models?
The 1756-L8SP is compatible with all GuardLogix 5580 primary controllers (1756-L81ES through 1756-L85ES). The firmware version must match between the primary and the safety partner — this is enforced during project download. The safety memory available to the safety task is a function of the primary controller model, not the safety partner. The 1756-L8SP itself does not contain user-accessible memory; it uses the safety memory allocated by the primary.
Q2: What happens if the 1756-L8SP is removed from the chassis while the system is running?
Removing the safety partner from the chassis while the system is running triggers an immediate major safety fault. The system transitions to its safe state. The primary GuardLogix controller detects the loss of the safety partner communication and cannot continue executing safety logic without the second verification channel. This is the correct and expected behavior — the safety architecture requires both processors for SIL 3 operation.
Q3: The safety partner is showing a yellow status LED. What does this indicate?
A yellow status LED on the 1756-L8SP typically indicates that the module is running but not yet synchronized with its primary controller, or that it is in a non-critical fault state. This can occur during initial commissioning when firmware versions don't yet match, or after a project download when the safety signature is being re-established. Check the controller diagnostics in Studio 5000 for the specific fault code. If the module is newly installed, confirm firmware compatibility and complete the download and safety signature verification sequence.
Q4: Does the 1756-L8SP affect the standard (non-safety) task execution of the primary controller?
No. The 1756-L8SP interacts only with the safety task partition of the primary controller. Standard and motion tasks execute on the primary controller independently of the safety partner. The safety partner verifies safety task execution without interfering with the standard task scan cycle. This is the core benefit of the integrated GuardLogix architecture — safety and standard control coexist in the same hardware without performance impact on either.
Q5: Is the 1756-L8SP backward compatible with GuardLogix 5570 (1756-L7SP) applications?
No. The 1756-L8SP is the safety partner for the GuardLogix 5580 family and is not backward compatible with GuardLogix 5570 systems, which use the 1756-L7SP as their safety partner. The two families have different architectures, firmware platforms, and chassis requirements. Migrating from a 5570-based safety system to a 5580-based system requires a full application migration in Studio 5000 and re-validation of the safety functions.
