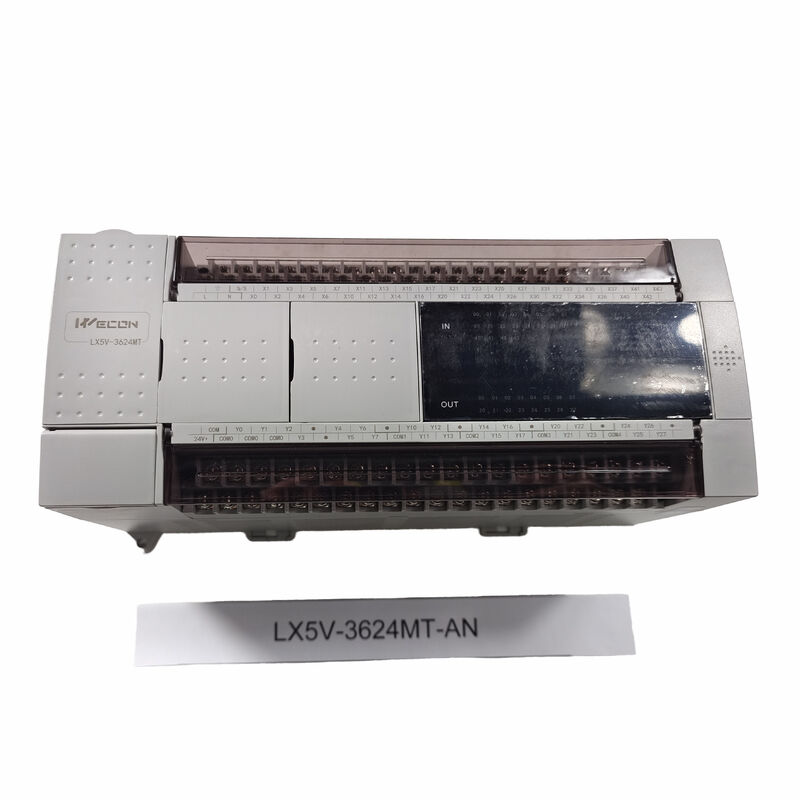

WECON LX5V-3624MT-AN Programmable Logic Controller
The WECON LX5V-3624MT-AN is a compact PLC for machine control and industrial automation. It combines 36 digital inputs with 24 transistor outputs. High-speed I/O, motion functions, serial communication, and expansion support make it suitable for demanding control applications.
Key Specifications
| Parameter |
Specification |
| Brand |
WECON |
| Model |
LX5V-3624MT-AN |
| Product Type |
Programmable Logic Controller |
| Digital I/O |
36 inputs / 24 outputs |
| Output Type |
NPN Transistor |
| Power Supply |
85–265 VAC, 50/60 Hz |
| Program Memory |
512 KB |
| High-Speed Inputs |
8 × 150 kHz single-phase |
| High-Speed Outputs |
8 × 200 kHz |
| Communication |
RS422/RS485, RS485, Ethernet |
| Mounting |
DIN Rail |
Control and Communication
The controller supports ladder programming and instruction-list programming. Basic instruction execution is specified at 0.01–0.03 μs.
It provides high-speed counting, pulse output, timer interrupts, and external input interrupts. E-CAM and electronic gearing functions support motion-oriented machine control. Expansion modules can be added for larger control systems.
Typical Applications
- Packaging machinery
- Conveyor systems
- Automated assembly equipment
- Motion control systems
- Material handling equipment
- Machine automation
- Production line control
FAQ
Q1: What type of PLC is the LX5V-3624MT-AN?
A: It is a compact industrial PLC with transistor outputs.
Q2: How many I/O points does it provide?
A: It provides 36 digital inputs and 24 digital outputs.
Q3: What power supply does it use?
A: The AN version uses 85–265 VAC at 50/60 Hz.
Q4: Does it support high-speed motion functions?
A: Yes. It supports high-speed I/O, pulse output, E-CAM, and electronic gearing.
Q5: What communication interfaces are available?
A: RS422/RS485 and RS485 are provided, with Ethernet available on the Ethernet version.
