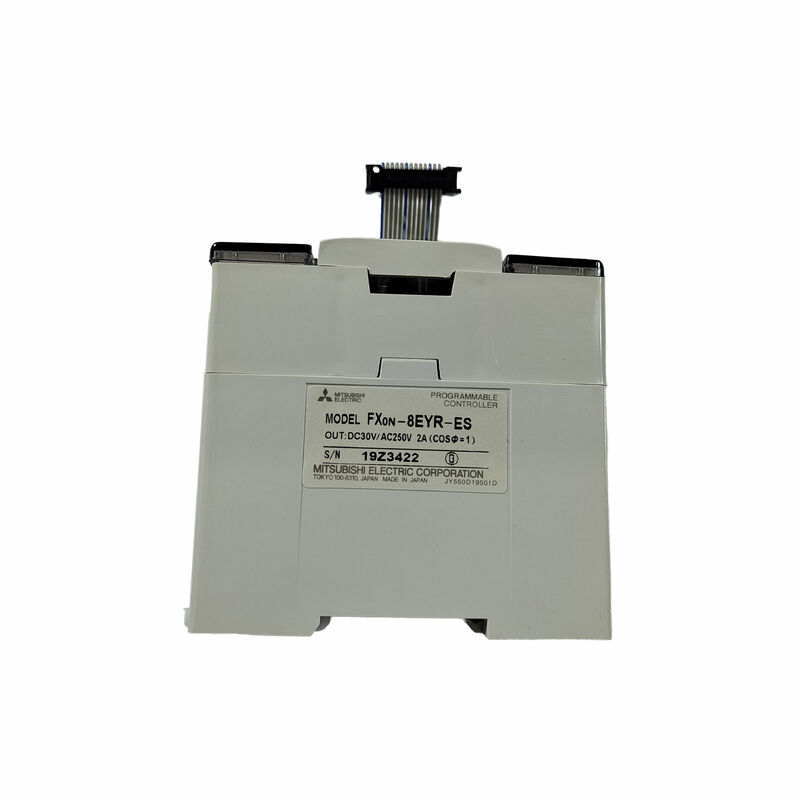

FX0N-8EYR-ES Mitsubishi Electric FX0N-8EYR-ES Programmable Controller New

Mitsubishi FX0N-8EYR-ES Relay Output Extension Block

Product Overview

The Mitsubishi FX0N-8EYR-ES is an 8-point relay output extension block for MELSEC-F programmable control systems. It expands the number of relay outputs available for machine control and automation tasks.

Its compact design is suitable for control cabinets where additional discrete outputs are required without adding a separate controller.

Key Specifications

Relay Output Performance

Eight independent relay outputs provide flexible switching for industrial loads. Each output supports currents up to 2 A under specified operating conditions.

Relay contacts allow the module to control both AC and DC circuits. This makes it suitable for contactors, indicators, solenoid devices and other discrete loads.

Compact System Integration

The FX0N-8EYR-ES connects to compatible MELSEC-F control systems as an output expansion block. Its narrow 43 mm body helps conserve panel space.

The module provides a straightforward way to increase output capacity in machine control systems.

Application Areas

• Packaging machinery
• Conveyor control systems
• Assembly equipment
• Machine tools
• Relay and contactor control
• Material handling equipment
• Factory automation systems

FAQ

Q1: How many outputs does the FX0N-8EYR-ES provide?
A: It provides 8 relay output points.

Q2: What type of outputs are used?
A: The module uses relay outputs.

Q3: What is the maximum current per output?
A: Up to 2 A per output.

Q4: Can it switch AC and DC loads?
A: Yes. It supports AC and DC switching within its ratings.
