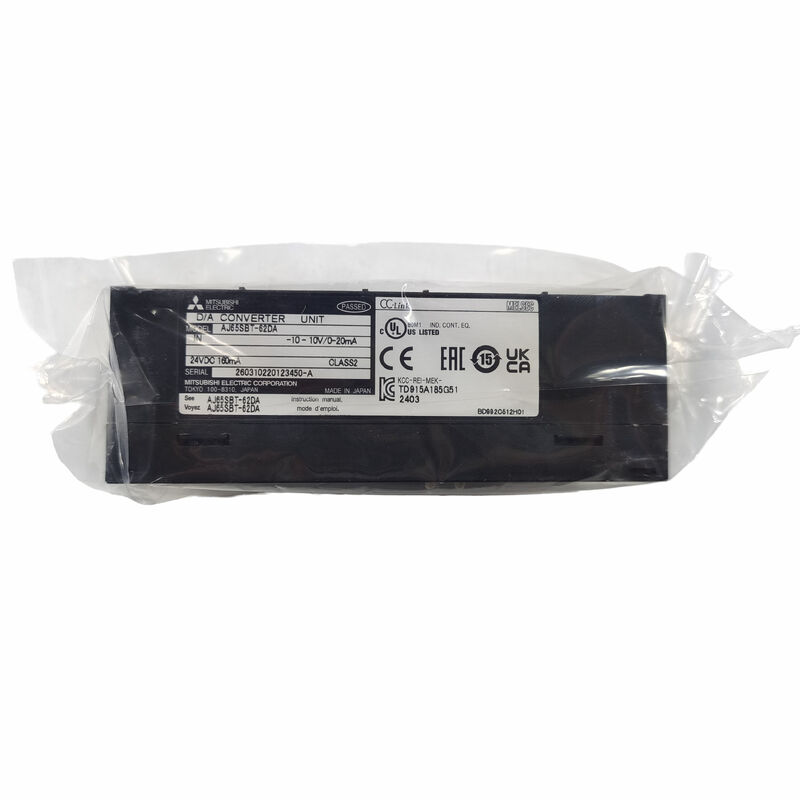

Mitsubishi AJ65SBT-62DA CC-Link D/A Converter Module
Product Overview
The Mitsubishi AJ65SBT-62DA is a 2-channel digital-to-analog converter module for CC-Link control networks. It converts digital control data into analog voltage or current signals for industrial equipment.
The module works as a remote device station and occupies one CC-Link station. Its compact terminal-block design supports straightforward panel wiring.
Key Specifications
| Parameter |
Specification |
| Brand |
Mitsubishi Electric |
| Model |
AJ65SBT-62DA |
| Product Type |
Digital-to-Analog Converter Module |
| Analog Output Channels |
2 |
| Voltage Output |
-10 to +10 VDC |
| Current Output |
0 to 20 mA DC |
| D/A Conversion Speed |
1 ms/channel |
| Accuracy at 25 ±5°C |
±0.2% |
| Module Power Supply |
24 VDC |
| Network |
CC-Link |
| Station Type |
Remote Device Station |
| Occupied Stations |
1 |
| Dimensions |
50 × 118 × 40 mm |
| Weight |
Approx. 0.20 kg |
Analog Output Performance
The AJ65SBT-62DA provides two independent analog output channels. It supports both voltage and current control signals.
Voltage output can operate within -10 to +10 VDC. Current output supports 0 to 20 mA DC. A conversion speed of 1 ms per channel provides responsive signal control.
Typical Control Scenarios
Variable frequency drive speed reference
Fan and pump speed regulation
Proportional valve positioning
Flow and pressure control
Remote analog output stations
Process automation systems
Distributed CC-Link control networks
FAQ
Q1: How many analog outputs does the AJ65SBT-62DA provide?
A: It provides two analog output channels.
Q2: What voltage output range is supported?
A: It supports output up to -10 to +10 VDC.
Q3: Can the module provide current output?
A: Yes. It supports 0 to 20 mA DC output.
Q4: What is the D/A conversion speed?
A: The conversion speed is 1 ms per channel.
Q5: What network does the module use?
A: It operates as a CC-Link remote device station.
