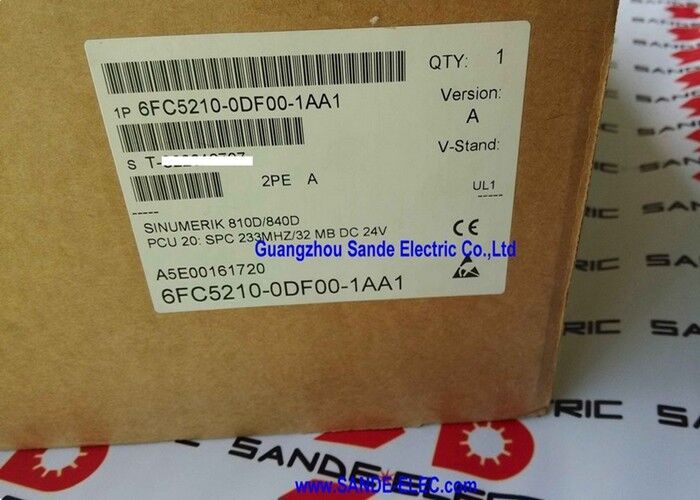

6FC5210-0DF00-1AA1 | SINUMERIK PCU 20 Panel Control Unit — 233MHz / 32MB DRAM / 16MB Flash / 24VDC / SINUMERIK 810D / 840D CNC

PCU 20 — The HMI Computing Unit Inside SINUMERIK 810D/840D

The SINUMERIK 810D and 840D are high-performance CNC systems widely used in machining centres, turning centres, grinding machines, and transfer lines. Within these systems, the 6FC5210-0DF00-1AA1 PCU 20 (Panel Control Unit) provides the operator panel computing layer — it runs the SINUMERIK HMI software, manages the operator interface, and communicates with the NCU (Numerical Control Unit) over the internal SINUMERIK backplane.

The PCU is a physically distinct unit from the NCU. The NCU handles real-time CNC computation — axis interpolation, PLC execution, and servo communication. The PCU 20 handles everything the machine operator sees and interacts with: tool data displays, programme editing, status screens, and manual data input. This functional separation means the HMI computing environment can be replaced or upgraded independently from the CNC controller itself.

The 6FC5210-0DF00-1AA1 is the 233MHz processor variant of the PCU 20, fitted with 32MB DRAM and 16MB flash memory — the configuration used in mid-generation 810D and 840D machine tool installations that require SINUMERIK HMI operation at the operator panel.

Key Specifications

32MB DRAM + 16MB Flash — Computing Resources for the HMI Layer

The PCU 20's 32MB DRAM provides the runtime working memory for the HMI application — active programme lists, tool and parameter tables held in RAM for fast display, and HMI software execution. The 16MB flash stores the operating software — the SINUMERIK HMI application image, machine-specific configuration files, and retained data that must survive power cycles without battery backup.

The 233MHz processor is sufficient for the SINUMERIK HMI display tasks this unit was designed for. Machine tool operators interact with the PCU 20 through the SINUMERIK operator panel, which connects to the PCU's display and keyboard interface — the PCU processes all input events and refreshes the display without depending on the NCU's real-time CNC processing.

Application Scenarios

SINUMERIK 840D machining centre — PCU replacement: A machining centre running a SINUMERIK 840D CNC system develops a PCU fault: HMI display fails, operator panel is unresponsive, or the PCU fails to boot. Replacing the 6FC5210-0DF00-1AA1 restores operator panel functionality. The NCU continues holding the machine configuration; the replacement PCU is configured to reconnect to the NCU without machine axis data loss.

SINUMERIK 810D turning centre HMI restoration: A turning centre with a SINUMERIK 810D control loses HMI capability due to PCU failure. The 6FC5210-0DF00-1AA1 is a direct replacement for the same PCU 20 variant, restoring the operator display, programme editing capability, and machine status feedback without requiring NCU replacement.

Panel upgrade path: Machine operators report sluggish HMI response on an older 810D installation. The PCU 20 upgrade from a slower variant to the 233MHz 6FC5210-0DF00-1AA1 improves display refresh and parameter input response without modifying the machine's CNC or axis configuration.

FAQ

Q1: What is the difference between the PCU 20 and PCU 50 in the SINUMERIK 810D/840D system?

Both are Panel Control Units for the SINUMERIK 810D/840D, but the PCU 50 is a higher-specification unit with significantly more computing power, larger RAM, and a hard disk drive or CompactFlash storage option compared to the PCU 20's flash-based storage. The PCU 50 (6FC5210-0DF01-0AA0 and similar) supports more advanced HMI functions and greater data capacity. The PCU 20 (6FC5210-0DF00-1AA1) is the compact, flash-based variant suitable for standard machining centre HMI requirements without the higher capacity demands that justify a PCU 50.

Q2: Can the 6FC5210-0DF00-1AA1 be used with both SINUMERIK 810D and 840D systems?

Yes. The PCU 20 is compatible with both the SINUMERIK 810D and 840D CNC systems. The NCU hardware differs between 810D and 840D (different NCU modules), but the PCU 20 connects to both via the same interface. The HMI software configuration on the PCU 20 is set up to match the connected NCU type and machine configuration.

Q3: Is the machine tool programme and parameter data stored in the PCU 20?

Part-programme data and CNC parameters are distributed across the PCU and NCU. The active CNC parameters and axis configuration reside in the NCU. HMI-level data — programme lists, tool data tables displayed through the operator panel, and HMI configuration — is managed by the PCU. When replacing a PCU 20, the machine's axis parameters in the NCU are unaffected; only the HMI-specific configuration on the PCU needs to be restored from backup.

Q4: What type of operator panel connects to the 6FC5210-0DF00-1AA1?

The PCU 20 connects to the SINUMERIK 810D/840D operator panel front units — specifically the OP 010, OP 012, OP 015, or equivalent operator panel variants that were contemporary with the PCU 20 generation. The connection carries the display signal, keyboard interface, and USB or MPI communication between the PCU and the operator panel. The physical connector type and cable specification are defined by the SINUMERIK 810D/840D hardware documentation for the specific operator panel installed on the machine.

Q5: What software is needed to configure or restore the PCU 20 after replacement?

After PCU replacement, the SINUMERIK HMI software and machine-specific configuration must be loaded onto the new PCU. The restore procedure uses a SINUMERIK system software backup — typically created during machine commissioning and stored on the operator panel's USB port or on a PC using SINUMERIK system software tools. The specific procedure is documented in the SINUMERIK 810D/840D commissioning manual. Using a verified backup from the original machine is the most reliable restore path.
