What the PPU Is — Control Unit and Operator Panel as One

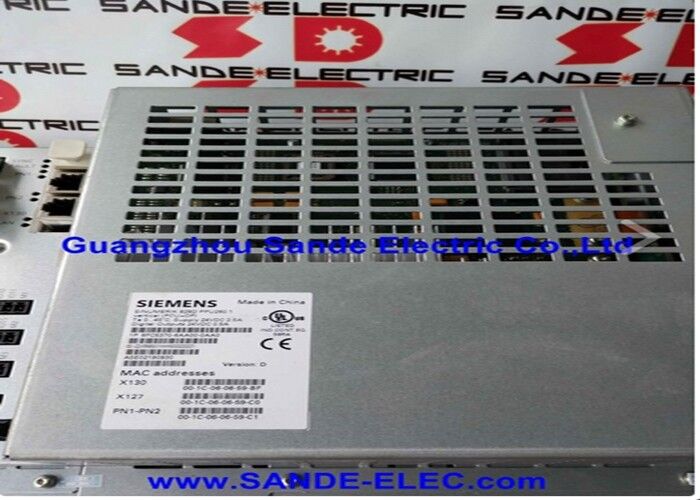

The SINUMERIK 828D PPU (Panel Processing Unit) merges the CNC computing electronics and the machine operator interface into a single hardware assembly. Where the 840D SL separates the NCU (control unit) and operator panel into independent hardware, the 828D PPU does both from one mounting position in the machine cabinet. One unit, one 24V DC supply connection, one installation — covering CNC execution, display, operator keyboard, and machine function keys.

The 6FC5370-6AA00-0AA0 maps to PPU261.1 in Siemens's documentation. This specific PPU designation defines the axis configuration capacity, spindle handling, and DRIVE-CLiQ expansion structure for the machine it controls. The PPU261.1 targets turning and milling machines of mid-range complexity — multi-axis contouring, ShopTurn and ShopMill shop floor programming, PROFINET for field device connectivity — without requiring the distributed NCU architecture of the 840D SL.

When this unit fails, both CNC control and operator interface are lost simultaneously. Continued machine operation from any alternative device is not possible. Only the identical PPU261.1 is a valid replacement — different PPU variants (PPU240, PPU260, PPU280) carry different hardware characteristics and cannot substitute without full machine recommissioning.

Key Specifications

Application Scenarios

CNC turning centres: Multi-axis turning with live tool control, C-axis indexing, and thread cutting. ShopTurn guides shop-floor operators through graphical cycle programming without G-code syntax knowledge.

CNC milling machines: 3-axis to 5-axis milling with contour programming. ShopMill provides step-by-step cycle creation alongside standard DIN/ISO code for experienced programmers.

Machine spare holding: The PPU is the single critical spare in an 828D installation. A failure without a matched spare on hand means extended downtime while sourcing. Holding one unit matched to the installed firmware version eliminates the search under time pressure.

FAQ

Q1: What differentiates the 828D PPU concept from the 840D SL?

The 828D integrates CNC and operator interface into the PPU — one unit, one installation point. The 840D SL uses a separate NCU (network-based controller) and operator panel, allowing them to be specified, mounted, and upgraded independently. The 840D SL suits more complex multi-axis systems; the 828D PPU suits mid-range turning and milling where the integrated approach simplifies cabinet design.

Q2: Can a PPU240, PPU260, or PPU280 substitute for the PPU261.1?

No. Each PPU variant has different axis count limits, spindle interfaces, and DRIVE-CLiQ expansion capabilities. The machine was commissioned for the PPU261.1's specific hardware profile. Fitting a different PPU requires a full CNC recommissioning from the machine builder's project data — it is not a simple swap.

Q3: Does the replacement PPU include CNC software and machine data?

No. Replacement PPU units ship as hardware only. CNC system software, NC machine data, PLC programme, and drive parameters must be restored from a backup taken before the failure. Without a current machine backup, the machine builder's project archive and the Siemens startup procedure are required to recommission.

Q4: What firmware version must the replacement PPU carry?

The replacement must match the firmware version installed in the failed PPU. Version mismatches cause parameter compatibility errors, PLC interface faults, or drive communication failures. Confirm the installed firmware version from the machine's system software screen before ordering.

Q5: Where is the 6FC5370-6AA00-0AA0 sourced?

Through Siemens SINUMERIK service channels, authorised Siemens service partners, and the CNC hardware aftermarket — specialist CNC parts dealers and tested surplus suppliers. Confirm the PPU261.1 designation and required firmware version before ordering. Clarify whether the supplier can provide a unit at a matching firmware level to avoid on-site update complications.
