Siemens 6SN1118-0DG23-0AA1 SIMODRIVE 611-D Control Unit

Overview

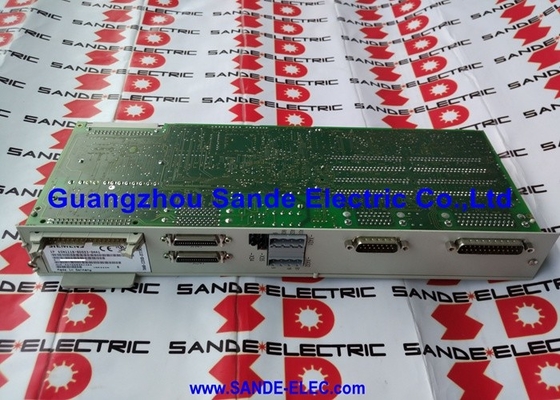

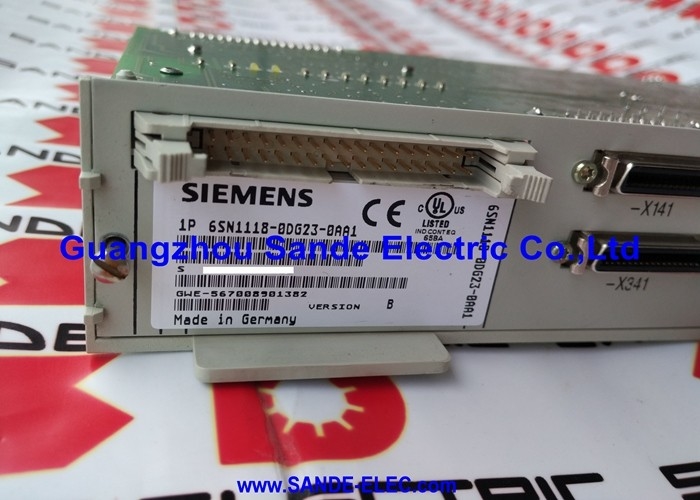

The 6SN1118-0DG23-0AA1 is a 1-axis closed-loop plug-in performance control unit in the SIMODRIVE 611-D family. Published Siemens and industrial listings describe it as a unit for digital drives, used with feed and main spindle drives and direct measuring systems.

The available product information also places it in a compact form factor around 6.0" × 3.0" × 13.0" and marks the part as phased out/discontinued.

This gives the module a very specific role in motion-control hardware.

It is not a generic PLC board or a broad-purpose machine-control card. It belongs in a SIMODRIVE motion system where the axis-control section has already been defined around this exact plug-in unit.

In practical terms, that means buyers are usually looking for continuity: the same axis type, the same measurement concept, and the same digital-drive environment already present in the machine.

This is an engineering inference based on the product’s repeated one-axis SIMODRIVE 611-D performance-unit identity.

Technical Data

Application Value

The 6SN1118-0DG23-0AA1 is well suited to CNC feed axes, main spindle-drive control channels, and installed SIMODRIVE 611-D systems where a single-axis performance module is already part of the original architecture.

Because the published descriptions explicitly connect it to digital drives and direct measuring systems, it is especially relevant where accurate drive-side feedback handling and axis-specific control remain important to the machine’s performance.

In maintenance terms, this kind of module is often more valuable than it first appears.

Replacing the correct 1-axis control unit can help preserve the original machine response, measurement setup, and drive logic without forcing broader cabinet changes.

That is one reason modules like this continue to be actively sold into replacement and lifecycle-support channels long after new-production use declines.

This is an engineering inference based on the product’s discontinued status and ongoing replacement-market availability.

Replacement and Selection Perspective

For service work, the 6SN1118-0DG23-0AA1 should be treated as a SIMODRIVE axis-control component, not simply as a board with a similar shape.

Buyers should verify the installed part number, the one-axis configuration, the measurement method, and the existing 611-D drive architecture before ordering.

That matters because the control unit influences how the axis is closed, measured, and regulated inside the drive system.

This is an engineering recommendation based on the model’s published identity as a 1-axis closed-loop performance control unit for digital drives with direct measuring systems.

FAQ

Q1: What kind of product is 6SN1118-0DG23-0AA1?
It is a 1-axis SIMODRIVE 611-D performance control unit used in digital-drive systems for motion control.

Q2: What makes this unit different from a general control board?
Its role is tied to axis regulation inside a SIMODRIVE system, especially where direct measuring systems and digital drive control are involved.

That makes it far more system-specific than a general machine board.

This is an engineering inference based on the published product descriptions.

Q3: What applications fit this unit best?
It fits installed SIMODRIVE 611-D systems, especially feed-axis and main-spindle drive applications that already use this one-axis plug-in architecture.

Q4: Why is exact model matching important here?
Because the unit is defined by axis count, measuring-system context, and drive architecture.

In practice, a similar-looking module may not preserve the same control behavior or measurement setup.

This is an engineering inference based on the product’s published one-axis and direct-measuring-system identity.

Q5: What should be checked before ordering?
Check the installed part number, the axis version, the measuring-system type, and whether the machine is built around the same SIMODRIVE 611-D environment.

Those checks usually prevent the most common replacement errors.
